Reznor ADFH Parts Manuals - Manual (Page 20)

Form P-ADF, P/N 270068 R1, Page 20

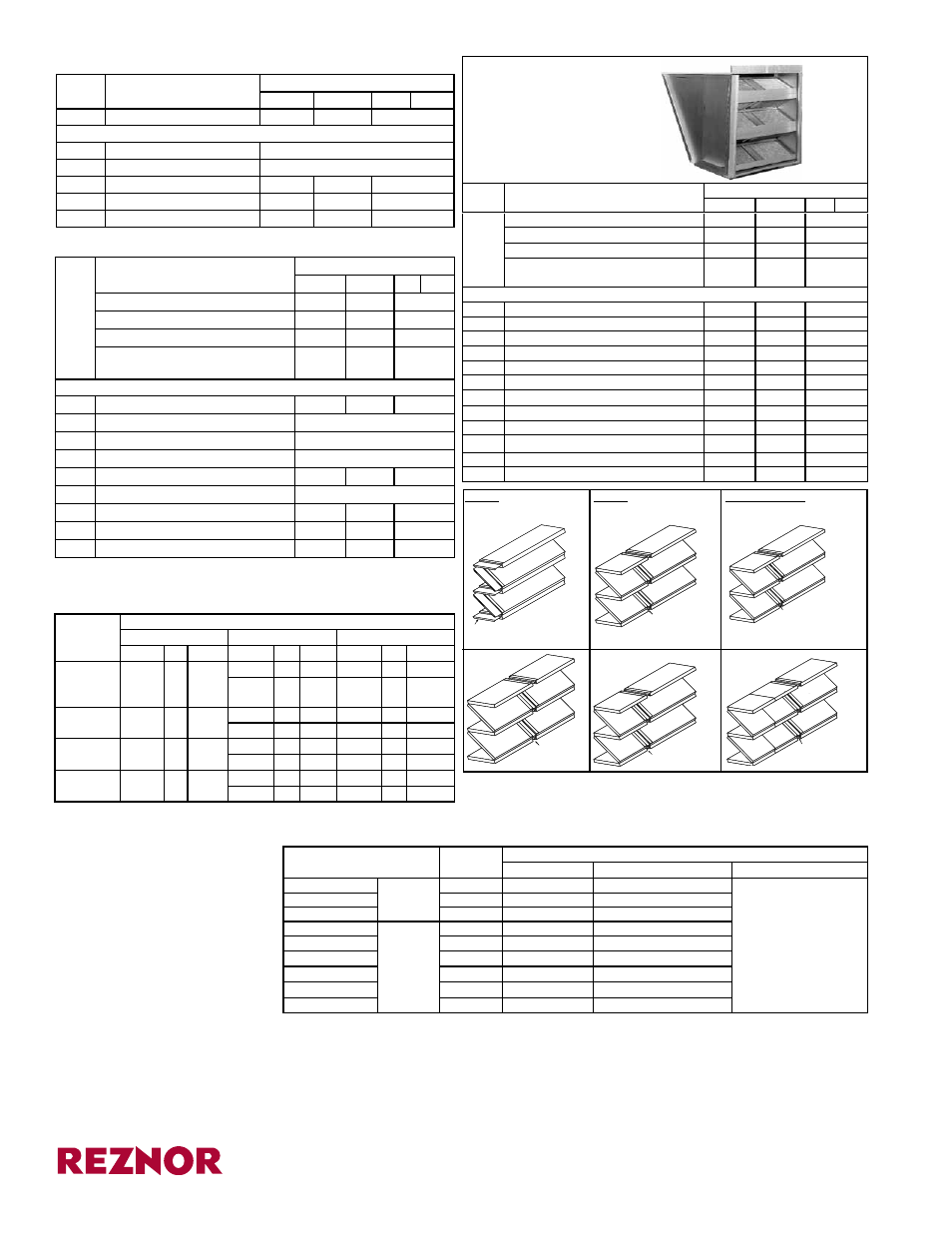

Outside Air Inlet Hood (Option AS2)
CODE Description
Size
300 500 700 1200
171
w/ 1” Disposable Filters (Opt AS11) 123243 123244 123245
w/ 1” Permanent Filters (Opt AS6) 123231 123232 123233
w/ 2” Permanent Filters (Opt AS7) 123234 123235 123236
w/ 2” Disposable Pleated Filters
(Opt AS10)
123240 123241 123242
Components
171A Bottom 100235 100237 100239
171B Bottom Support (2) 123998 123998 123998
171C Left Corner 119765 119765 119765
171D Right Corner 119764 119764 119764
171E Right Side 119766 119766 119766
171F Left Side 119767 119767 119767
171G Top 100228 100230 100232
171H Louver Assembly 103774 103776 103778
171J Door Assembly (2) 124626 124626 124626
171K Filter Channel Assemblies (10) 124620 124621 124622
171L Bottom Blockoff Plate for Channel 119753 119757 119760
171M Top Blockoff Plate for Channel 119754 119758 119761
CODE 171 -
Outside Air Inlet
Hood with Filter
Cabinet
Inside Air Inlet Hood with Filter Cabinet
CODE Description
Size
300 500 700 1200
170 Outside Air Hood Pkg 106202 106204 106206
Components
170A Left Side 100216
170B Right Side 100217
170C Top 100228 100230 100232
170D Bottom 100235 100237 100238
170E Louver Assembly 103774 103776 103778
CODE Description
Size
300 500 700 1200
172
w/2" Disposable Filters (Opt AW13) 126121 126122 126123
w/1" Permanent Filters (Opt AW3) 126124 126125 126126
w/2" Permanent Filters (Opt AW6) 126130 126131 126132
w/2" Disposable Pleated Filters
(Option AW15)
126136 126137 126138
Components
172A Bottom 125139 125140 100239
172B Left Corner 119765
172C Right Corner 119764
172D Rear Corner (2) 87859
172E Left Side 125173 121574 125175
172F Door Assembly (2) 124626
172G Filter Channel Assemblies (10) 124620 124621 124622
172H Bottom Blockoff Plate for Channel 119753 119757 119760
172J Top Blockoff Plate for Channel 119754 119758 119761
Filter
Type
ADF/ADFH Size
300 500 700 and 1200
P/N Qty Size P/N Qty Size P/N Qty Size
Disposable
2" Filters 114323 5
12x
30-5/8
114317 5 12x20 114318 5 12x25
114318 5 12x25 114323 5 12x30-
5/8
Disposable
2" Pleated 114324 5 12x32
114319 5 12x20 114320 5 12x25
114320 5 12x25 114324 5 12x32
Permanent
2" Filters 114325 10 12x16
114321 5 12x20 114325 10 12x16
114322 5 12x26 114322 5 12x26
Permanent
1" Filters 114334 10 12x16
114332 5 12x20 114334 10 12x16
114333 5 12x26 114335 5 12x26
CODE 173 - Replacement Filters for Indoor and
Outdoor Filter Cabinets (CODES 171 and 172)
NOTE: If replacing 1" disposable filters, replace with locally supplied filters in the size and type listed. Quantities listed by size and
arrangements illustrated apply to both 1" and 2" filters.
Size 300 with
Disposable
or Pleated
Filters
(5) Blockoff Plates -
P/N 123226, Disposable Fltrs;
P/N 114337,Pleated Filters
Size 300 with
Permanent
Filters
(5) Blockoff
Plates,
P/N 114337
Size 500 with
Disposable
or Pleated
Filters
(5) Blockoff
Plates,
P/N 123225
(5) Blockoff Plates -
P/N 123226,
Disposable Filters;
P/N 123225,
Pleated Filters
Sizes 700 and 1200
with Disposable
or Pleated
Filters
Size 700 with
Permanent
Filters
(5) Blockoff Plates,
P/N 114335
Size 500 with
Permanent Filters
(5) Blockoff Plates,
P/N 114337
Size 300 Filter Arrangements
and Blockoff Plates
Size 500 Filter Arrangements
and Blockoff Plates
Sizes 700 and 1200 Filter
Arrangements and Blockoff Plates
CODE 175 - Roof Curb
Model, Size, & Discharge
Roof Curb
Pkg P/N
Components (qty's not listed are 1)
Curb Side Assy Curb Front & Back Assy Hardware in all Pkgs
ADF 300
Horizontal
Discharge
104674 (2) 104649 104653 (12) 16247, Hex Head
Cap Screws, 5/16" x
3/4" long; (12) 1035,
Hex Nut 5/16"-18; (4)
16243, Screw 5/16" x
1" long; (16) 13333,
Lockwasher 5/16"; (1)
66302, 1/4" x 1-1/4" x
50' Foam Sealant Tape
ADF 500 104676 (2) 104649 104655
ADF 700/1200 124029 (2) 124026 104657
ADF 300
Vertical
Discharge
104674 (2) 104649 104653
ADF 500 104676 (2) 104649 104655
ADF 700/1200 124033 (2) 124030 104657
ADFH 300 124034 107258 104653
ADFH 500 107252 107258 104655
ADFH 700/1200 124033 124030 104657
