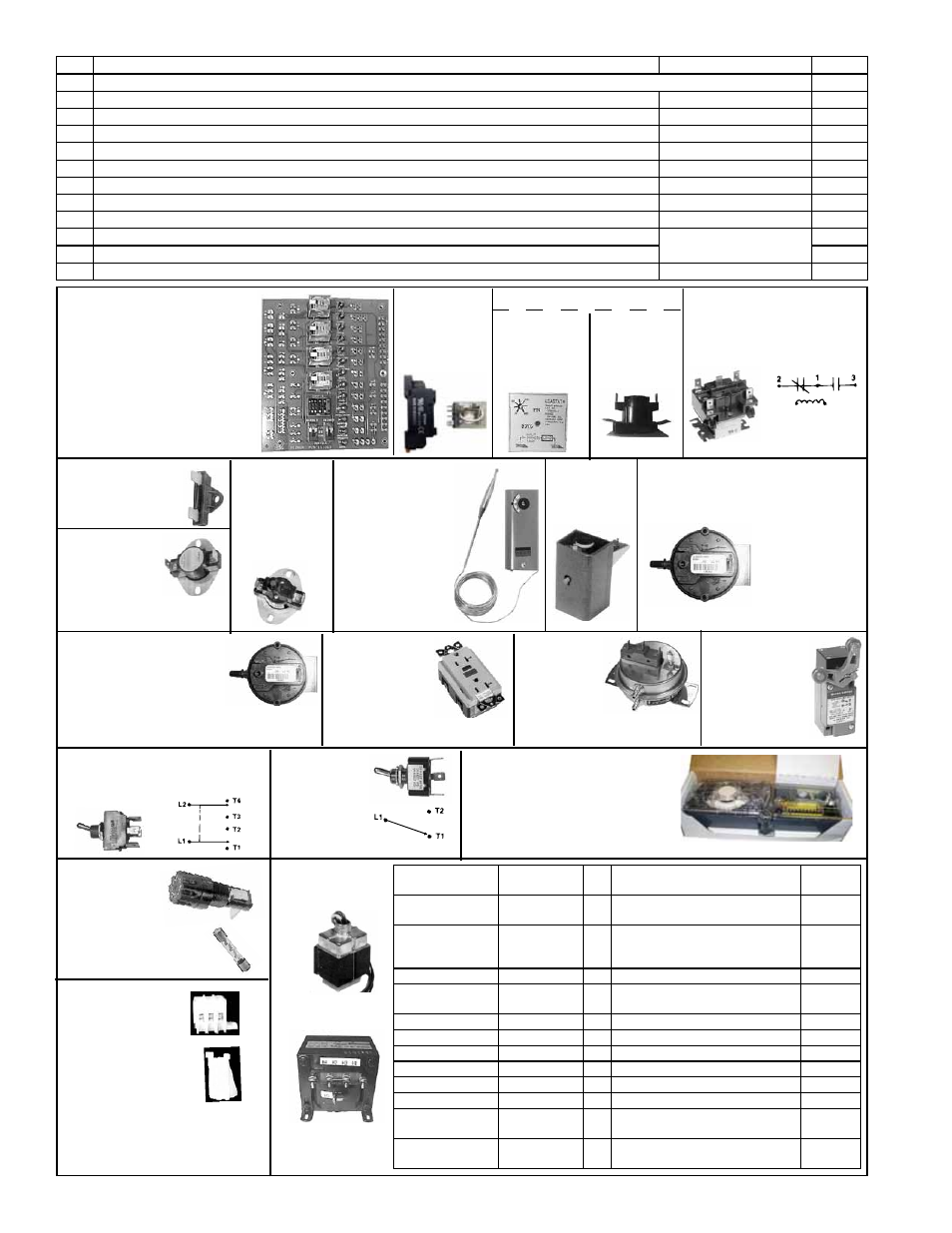

Form P-ADF, P/N 270068 R1, Page 4

CODE 2 -

Relay and

Socket

Base

Time Delay

Relay

(Freezestat),

P/N 89661

CODE 1A, Replacement

Light for Circuit Analyzer

Board - P/N 125189

CODE 1B, Replacement

Relay for Board, P/N

151271

CODE 1 - Circuit Analyzer

Board, P/N 151263

CODE 7 -

Manual

Reset, High

Temperature

Limit

CODES 8 and 9 -

P/N 126170, High

Ambient Cutoff

and Freezestat

Grommet Clamp,

P/N 131993;

Cable Clamp,

P/N 132065

CODE 4 - Starter Relay

for Single and 2-Speed

Starters (Options AN10

and AN12), P/N 110656

CODE 6 -

Automatic

Reset Limit

Control

Limit Switch Shield,

P/N 12229

CODE 21 - 8 Amp

Fuse, P/N 201773

CODE 22 -

Terminal Block,

P/N 144972

Used in both the Electrical

Compartment and the

Remote Console

CODE 23 -

Mounting Adapter

for Terminal

Block, P/N 144973

CODE 20 -

Fuseholder,

P/N 60241

Sampling Tube,

P/N 259069

CODE 16 - DPDT System

Switch, P/N 101900 (winter/

off/summer)

CODE 15 -

Door Switch,

P/N 124253,

Option BX1

CODE 17 -

SPDT

Switch,

P/N 101901

CODE 18 -

Photoelectric Smoke

Detector, P/N 159553

(Same as Option SA1)

CODE 14 -

Dirty Filter

Pressure

Switch,

P/N 105507

CODE 13 -

Convenience

Outlet

Receptacle,

P/N 96912

CODE 24 -

Transformers

Replace

pressure switch

P/N 86986 with

Kit P/N 193806.

CODE 10 -

Firestat,

P/N 42782

CODE 11 - Low Air Pressure

Switch, .25, P/N 203932

(units mfgd beginning 9/03)

CODE 12 - High Air

Pressure Switch, .75,

P/N 203933 (units

mfgd beginning 9/03)

Replace pressure switch P/N 86987

with

Kit P/N 193807.

CODE 5 - Energy

Cutoff Device,

P/N 82414

CODE Description

Location (page 3)

P/N

13 Bushing and Insect Screen for Sensing Probes (not illustrated)

96794

14 Convenience Outlet Receptacle, Hubbell #GF5352-1

Control Compartment

96912

15 Dirty Filter Pressure Switch, Tri-Delta #AP4434, set at .3" w.c. (remote console option)

Electrical Compartment

105507

16 Door Switch, Honeywell Micro-Switch #LLSNIA-3P (Option BX1)

Space (on overhead door)

124253

17 DPDT System Switch, Summer/Off/Winter

Space (Remote Console)

101900

18 SPDT Toggle Switch, on/on

Space (Remote Console)

101901

19 Photoelectric Air Duct Smoke Detector, D4120 (Option SA1)

Ductwork

159553

20 Fuseholder

Electrical Compartment

60241

21 Fuse, 8 Amp, Fusetron

Electrical Compartment

201773

22 Terminal Block, #KT3

Electrical Compartment &

Remote Console

144972

23 Terminal Block Mounting Adapter, KAD

144973

24 Transformer (See P/N's below.)

Electrical Compartment

40VA

200-

500 VA

Volts In

Volts Out

VA Manufacturer's No.

Reznor

P/N

120/240

250 TB1-81146 (used w/hot surface

ignition)

38634

120

Basler #BE141650-WAA (Used

with spark igntion) (2 required to

replace P/N 61806)

103055

120

500 Hevi-Duty T500E

159842

208/240

40 Basler #BE21539001 (2 required

to replace P/N 61807)

103497

208/230/460

500 Hevi-Duty T500CK

159843

208/230/460/575

110

275 C0275KAU E5E

105202

208

110

500 Hevi-Duty #2227003T00

86998

208

200 Hevi-Duty #2223034T00

39094

208/240/480/575

200 C0200KAT

39095

230/460

110

500 Hevi-Duty #2227001T00

86997

208/240/ 460/575 Dual Windings

120 & 24

400 NSC-24H9-0908 200-400VA1P

(used on RDF w/REC)

124002

460

40 Basler #BE23975001 (2 required

to replace P/N 61808)

103498

CODE 3

Time Delay

Relay, 24V

coil, P/N

89254
