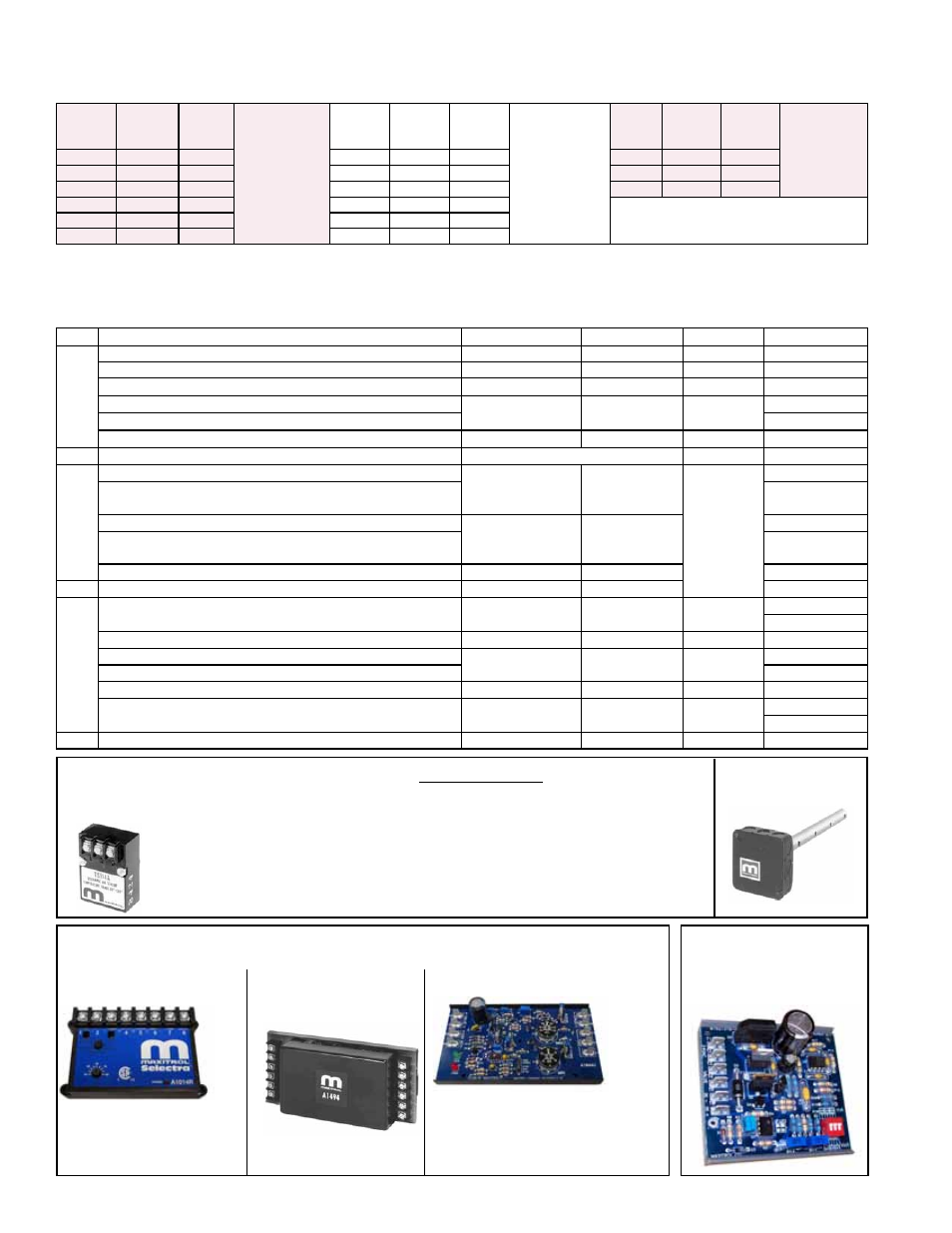

Form P-ADF, P/N 270068 R1, Page 10
CODE 51 - Replacement Coils by Voltage for IEC Starter Contactors (CODE 46 - 24 volt
starter contactors on pages 6-8 and CODE 50 line voltage starter contactors on page 9)
Modulating Gas Controls
CODE Description In Gas Control Opt Serial No. Suffix Location P/N
60
Temperature Sensor, Maxitrol Series 14, #TS114 AG30, AG31 MV-7 Discharge 90324
Temperature Sensor, Maxitrol Series 14A, #TS114A AG32 MV-8 Discharge 87106
Temperature Sensor, Maxitrol Series 14B, #TS114B AG35 MV-8 Discharge 123944
Temperature Sensor, Maxitrol Series 44, #TS144E, 120°F max
AG33 MV-9 Discharge
119617
Temperature Sensor, Maxitrol Series 44, #TS144C, 140°F max 194160
Temperature Sensor, Maxitrol Series 94, #TS194 AG36 MV-B Discharge 133228
61 Mixing Tube, Maxitrol MTI-12 All above Discharge 90323
62
Amplifier, Maxitrol Series 14 & 14A, #A1014R
AG 30, 31, 32 MV-7, MV-8
Electrical
Control
Compartment
(See page
3.)
148590
Replacement Kit for Amplifier P/N 148590, Model A1014L or
A1014U, or P/N 86976
268301
Amplifier, Maxitrol Series 44, #A1044U
AG33 MV-9
268274
Replacement Kit forAmplifier P/N 194159 ( 1044CL); P/N 157915
( A1044EL); P/N 119616 (A1044E), and P/N 86989 (A1044)
268302
Amplifier, Maxitrol Series 94, A1494 AG36 MV-B 133229
63 Signal Conditioner, Maxitrol AG37 MV-C 134170
64
Temperature Selector, Maxitrol Series 14, #TD114 AG30, AG31 MV-7 Remote
86988 (USA)
101165 (Canada)
Temperature Selector, Maxitrol Series 14A, #TD114A AG32 MV-8 Remote 87107
Temperature Selector, Maxitrol Series 14B, #TD114B, 120-160°F AG35
MV-8 Remote
159285
Temperature Selector, Maxitrol Series 14B, #TD114B, 120-140°F 123943
Selectrastat (temperature selector), Maxitrol Series 44, #T-244 AG33 MV-9 Space 86990
Temperature Selector, Maxitrol Series 94, #TD294E-609-0818 AG36 MV-B Remote
133230, 120°F
159287, 160°F
65 Overriding Thermostat, Series 14, #T115 AG 30, 31, 32 MV-7, MV-8 Space 24857
CODE 60 -
Temperature
Sensor
P/N 90324, Maxitrol #TS114;
P/N 87106, Maxitrol #TS114A
(illustrated);
P /N 123944, Maxitrol #TS114B;
P/N 119617, Maxitrol #TS144E;
P/N 194160, Maxitrol #TS144C;
P/N 133228, Maxitrol TS194A
CODE 61 - Mixing
Tube, P/N 90323
CODE 62 - Amplifiers
(Amplifiers are not interchangeable and must match the temperature sensor.)
P/N 148590,
Maxitrol #A1014R
P/N 268274, Maxitrol #A1044U
CODE 63 - Maxitrol
Signal Conditioner,
P/N 134170 (for
computer control)
IMPORTANT NOTE: When replacing a tem-
perature sensor on a Maxitrol MV-9 system
(Option AG33), check the Model No. on the
sensor. P/N 119617 or 194160 is used on
units manufactured beginning 2/92; P/N
87041 is used on units manufactured prior to
2/92. Sensors are not interchangeable; the
sensor MUST match the amplifier.
P/N 133229, Maxitrol
#A1494
To replace P/N 148590,
A1014L or A1014U, or P/N
86976, order Replacement
Kit P/N 268301
(Shown
without
the
cover.)
To replace P/N 194159 ( A1044CL);
P/N 157915 ( A1044EL); P/N 119616
( A1044E), or P/N 86989 (A1044),
order Replacement Kit P/N 268302
Voltage GE #
Reznor ®
P/N For Use with
Contactors
Beginning with
GE#
CL00; CL01;
CL02; CL25
Voltage GE #
Reznor ®
P/N
For Use with
Contactors
Beginning with
GE#
CL04; CL45
Voltage GE #
Reznor ®
P/N
For Use with
Contactors
Beginning with
GE#
CL06; CL07;
CL08; CL09
24 LB1A-C 151280 24 LB3A-C 151286 208 LB4A-L 151292
120 LB1A-J 151281 120 LB3A-J 151287 230 LB4A-S 151293
208 LB1A-L 151282 208 LB3A-L 151288 460 LB4A-U 151294
230 LB1A-S 151283 230 LB3A-S 151289
460 LB1A-U 151284 460 LB3A-U 151290
575 LB1A-Y 151285 575 LB3A-Y 151291
Motor Contactor, and
Starters (cont'd)
