Page 11

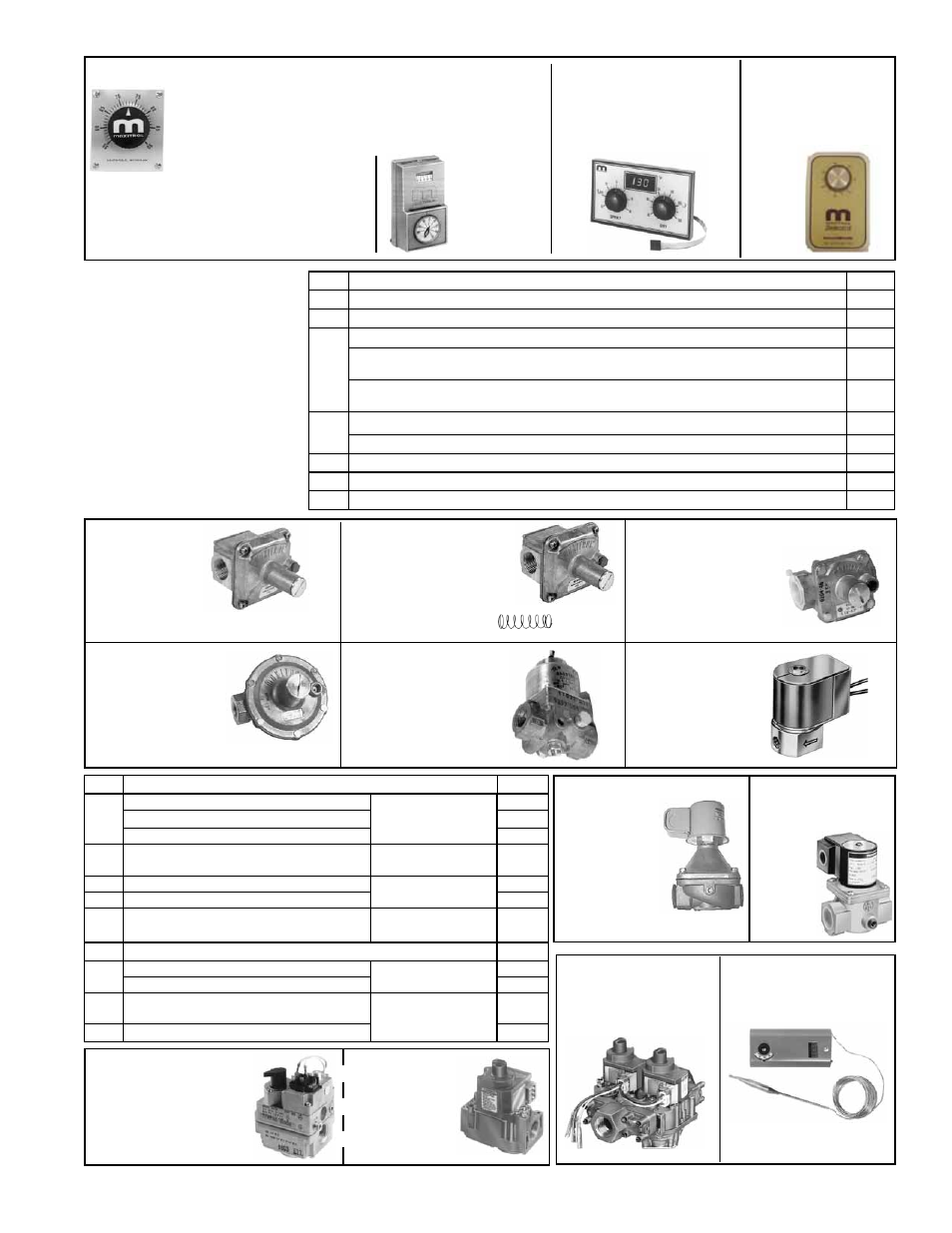

Form P-ADF, P/N 270068 R1, Page 11

CODE 65 -

P/N 24857, Maxitrol

#T115, Overriding

Thermostat, Option

AG33

CODE 64 - Temperature Selectors (see chart for option application)

P/N 86988, TD114 U.S. Models, Range 55-90°F

(selector with box,

P/N 156085);

P/N 101165, TD114, Canadian Models,

Range 50-75°F;

P/N 87107, TD114A,

Range 80-130°F;

P/N 159285, TD114B,

Range 120-160°F

P/N 133230 - Maxitrol

#TD294E-609-0818,

Dual Temperature

Selector for Paint Booth

Application, Option AG36

P/N 86990,

Selectrastat

Maxitrol

T-244

Gas Regulators,

Valves, and Pressure

Switches

CODE Description

P/N

70 1" Pressure Regulator, RV53-88

123950

71 Regulator, 1" manifold, 5 PSI to 6" w.c., Maxitrol R600S

86964

71A

Standard brown spring for propane gas (in CODE 71 for lower pressure range 1 - 3.5" w.c.

91787

Std cadmium spring for natural gas (in CODE 71) for pressure range from 3.0 - 6.0" w.c.,

Maxitrol #R5310-36

97196

Optional orange spring in CODE 71, for pressure range from 4.0 - 8.0" w.c., Maxitrol

#R5310-48

97351

Pilot Regulator, 3/8", Maxitrol #RV20LT, Natural Gas (on units mfgd prior to Series 3, 9/03)

122844

Pilot Regulator, 3/8", Maxitrol #RV20LT, Propane (on units mfgd prior to Series 3, 9/03)

124021

73 Pilot Regulator, 3/8", Maxitrol 325-03 (on units manufactured beginning 9/03)

112644

74 Pilot Valve, 24V, 3/8", G/C J/C #H91CG-12 (on units mfgd prior to Series 3, 9/03)

122845

75 Pilot Valve, 24V, 3/8", M/H V8046C1030 (on units manufactured beginning 9/03)

204769

CODE 71 - Regulator,

P/N 86964, Maxitrol

R600S

CODE 71A -

Regulator Spring

for CODE 71

CODE 73 - Pilot

Regulator,

P/N 112644,

Maxitrol

325-03

CODE 70 -

Regulator,

P/N 123950,

Maxitrol

RV53-88

CODE 72 - Pilot Regulator,

Maxitrol RV20LT

Natural Gas,

P/N 122844;

Propane,

P/N 124021

CODE 74 -

Pilot Valve,

P/N 122845, 24V,

J/C #H91GC-12

CODE 75 -

Pilot Valve,

P/N 204769,

24V, M/H

V8046C1030

NOTE: Serial No. Date

Code for 9/03 is BCI (See

page 2.)

CODE Description

P/N

Solenoid Valve, 3/4", 24V, G/C #K3A6515F

(on units mfgd prior to

Series 3, 9/03)

123604

Solenoid Valve, 1", 24V, G/C #K3A661T

146472

Solenoid Valve, 1-1/4", 24V, G/C #K3A661T

123605

77 Solenoid Valve, M/H V4295A-1031

Used on units mfgd

beginning 9/03

203860

78 Single-Stage Gas Valve, 1/2"

Used in Gas Control

Opt AG1 prior to 9/03

121599

79 Single-Stage Gas Valve, 3/4"

96309

80 1-stage Gas Valve, M/H VR8404M5569,

Natural or Propane, 1"

Used in gas controls

beginning 9/03

159743

81 Air Controller, 40-100°F (used as a ductstat in AG1 beginning 9/03) 126170
82

2-stage Valve, 1/2"

Used in Gas Control

Opt AG3 prior to 9/03

177396

2-stage Valve, 3/4"

177397

83 2-stage Gas Valve, M/H V8944B-1126,

Natural, 1"

Used in Gas Control

Option AG3 beginning

9/03

203866

84 2-stage Ductstat, T678A1015, 60-110°F

41700

Single-

Stage

Valves

used prior

to 9/03

CODE 78 -

1/2", P/N

121599

CODE 79 -

3/4", P/N 96309

is replaced

Kit,

P/N 222037

CODE 76 - Solenoid

Valve, 3/4",

P/N 123604;

1" P/N 146472

(illustrated);

1-1/4" P/N

123605

(used prior to 9/03)

CODE 77 -

Solenoid Valve,

P/N 203860

(used

prior

to 9/03)

CODE 80 - P/N

159743, 1-Stage

Gas Valve, 1",

natural or propane

CODE 81 - P/N

126170, Controller

(used as a ductstat)
