I n s t a l l a t i o n l 3 - 5
6 inches
(15.24 cm)
square
5 inches
(12.7 cm)
square
7/16 inches
(1.11 cm)
diameter
2 inches
(5.08 cm)
diameter
4 inches
(10.16 cm)
square
3 inches
(7.62 cm)
square
7/16 inches
(1.11 cm)
diameter
1 inch
(2.54 cm)
diameter
NOTE: If your mounting
surface does not match
the standard bolt pat-
terns available, you will
need an adapter. You
can make an adapter
using the dimensions
provided or purchase
one from Conair.
❒ ❒ A mounting surface that will support the weight of the dryer, support
frame, and a fully-loaded hopper, or just the fully-loaded hopper. See the
specifications tables for weights and volumes.
❒ ❒ Material and conveying lines installed. If you plan to use vacuum or
compressed air loaders to fill the hopper, install conveying lines to the drying
hopper location.

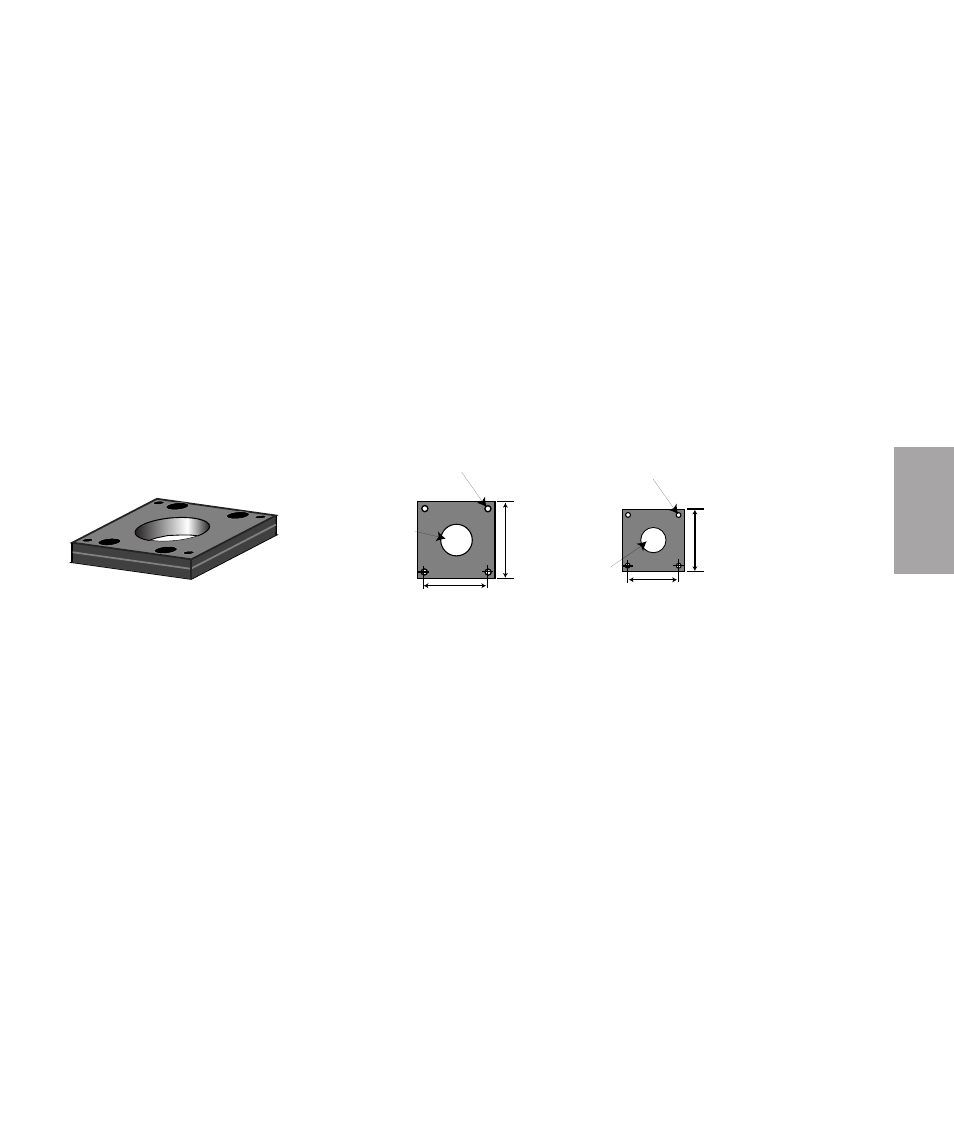

2 Drill and tap mounting holes or make adapter.
Available discharge assemblies and slide gates fit mounting surfaces with
these bolt patterns and diameters.
3
Description
✐
P r e p a r i n g f o r I n s t a l l a t i o n
( c o n t i n u e d )
