Hookups without a Cable Box (cont^d)
7
3

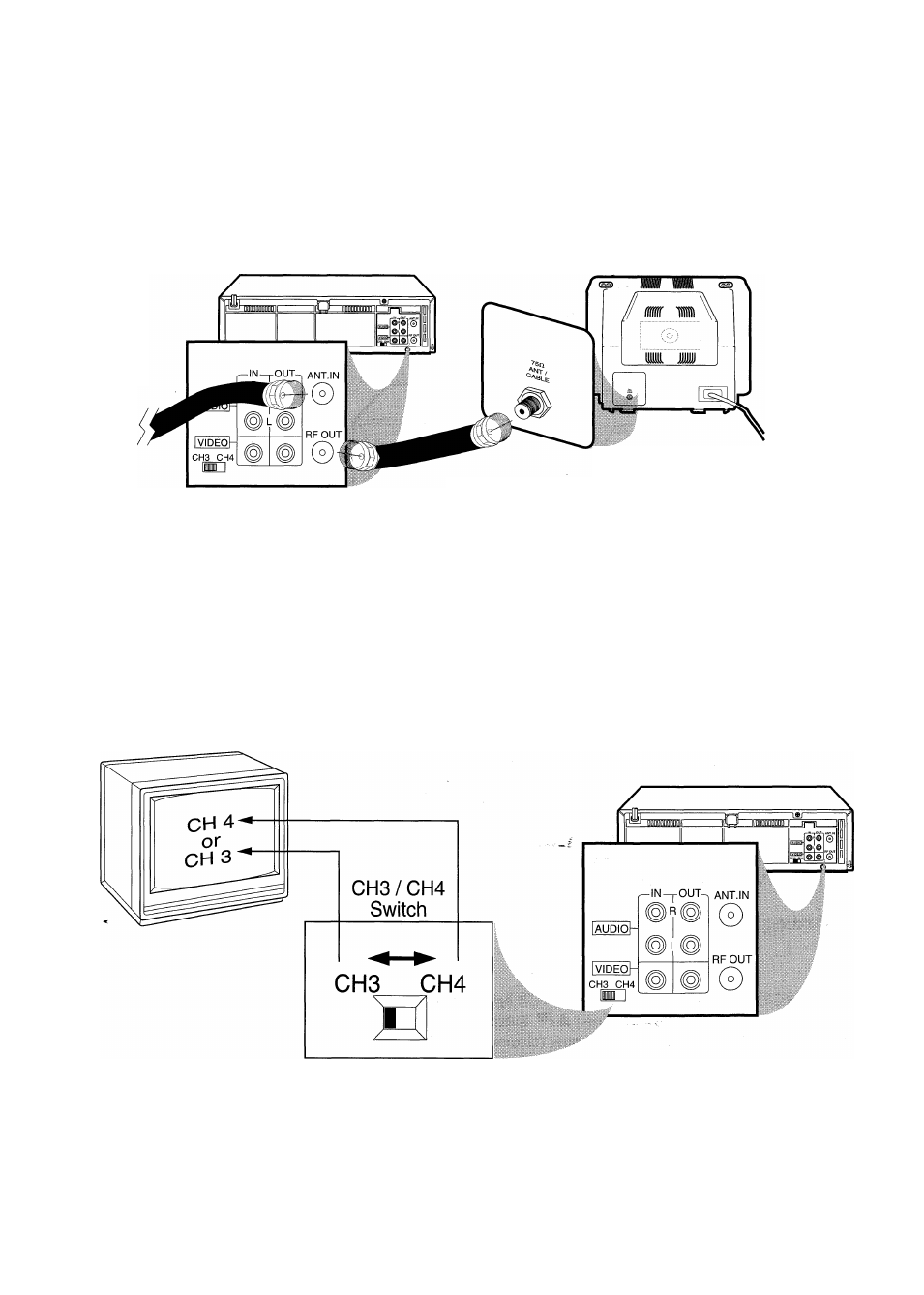

Connect the RF coaxial cable (supplied) to the RF OUT Jack on the back of
the VCR and to the ANTENNA IN Jack on the TV.
(You may use either a snap-on
type or screw-on type of coaxial cable, whichever you prefer. A snap-on type is supplied.)
Antenna
or Cable
RF coaxial cable
Antenna In Jack
(on back of TV)
example only
4
Plug in the TV and the VCR.
5
Set the CH3/CH4 switch on the back of the VCR to CHS or CH4,
whichever
channel is not used or least used in your area.To operate your VCR with your TV,
set
the TV to the same channel.
For example, when playing a tape, if the CH3/CH4
switch is set to CH3,theTV should be on channel 3.
6
You are ready to turn on the VCR. Please go to page 10 before turning on the
VCR.
