MicroWin 2000EX Manual
51

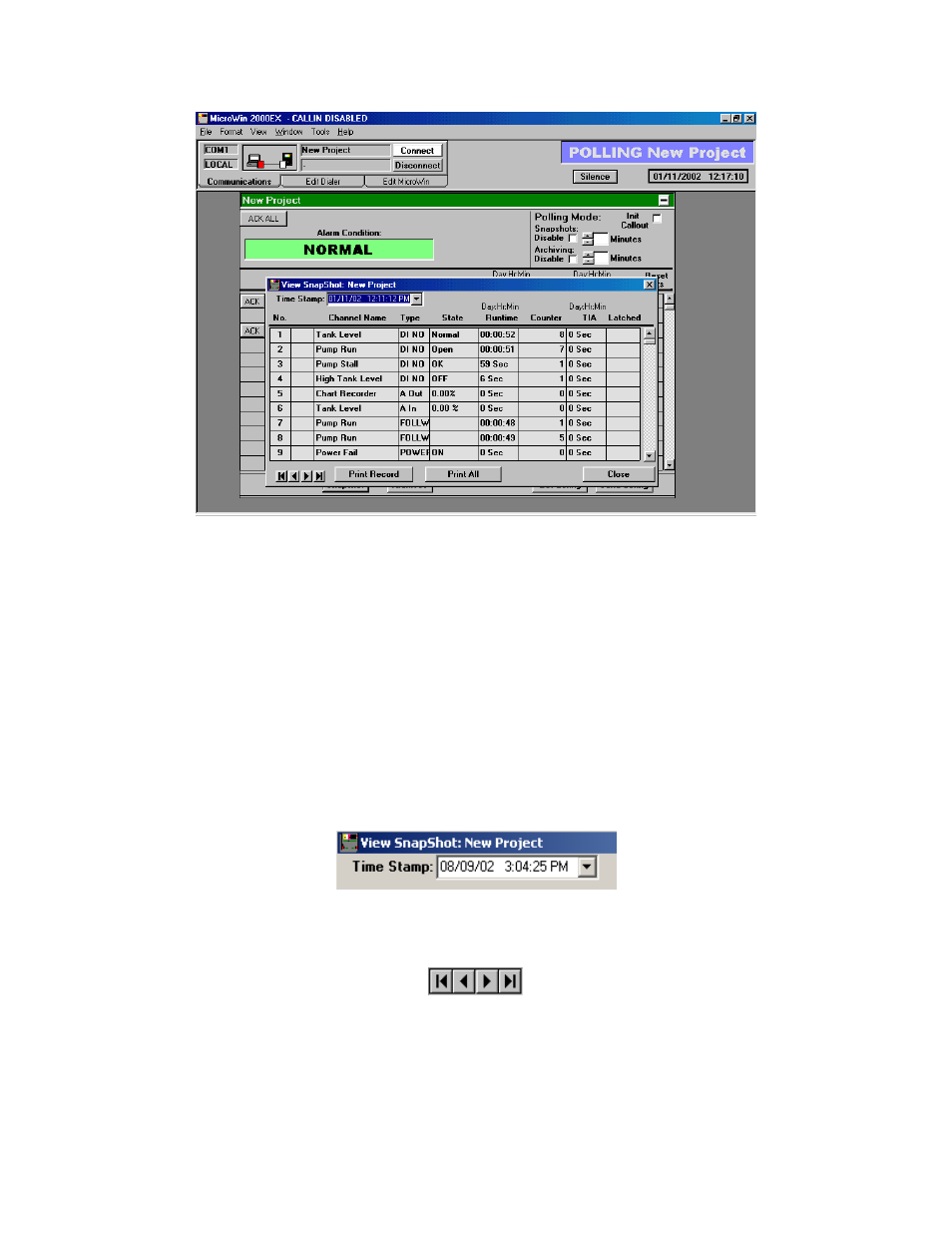

This form allows the user to view the selected snapshot data. The snapshot viewed corresponds
to the Time Stamp at the top of the form. This tells the user the current time that was on the
dialer when the data was transmitted.
Snapshot Status Data
The status information displayed here corresponds to the data that was on the dialer at the time
the information was transferred from the dialer.
See section Appendix E: Dialer Channel Information, Page 95 for more details of the Realtime
Data.
Selecting the Viewed Record
Selecting another record to view can be done by using the Time Stamp drop-down box at the top
of the form. To change the current record, click on the Down Arrow and choose another record
to view by clicking on this record.
Moving to different records can also be done by using the select position arrows. These buttons
represent First, Previous, Next, and Last, respectively.
Print Recorded
This will send a copy of the selected snapshot records to the printer.
Print All
This will send a copy of all snapshot records to the printer.
