MicroWin 2000EX Manual
10

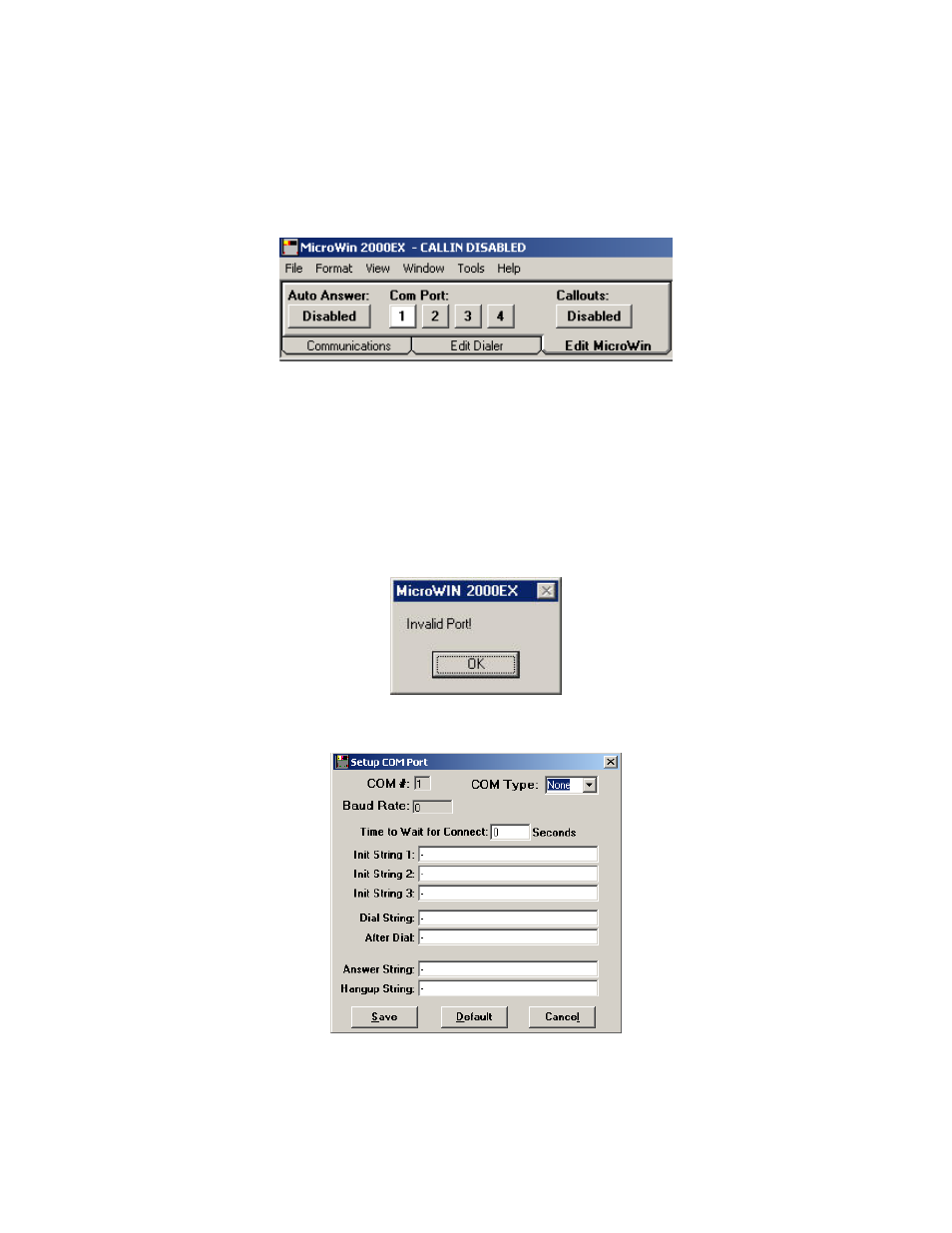

Setup MicroWin 2000EX to Connect to a S1000EX
MicroWin 2000Ex can connect to a S1000EX in two different ways, Modem or Local. You
must choose the appropriate Com Port (1-4) and Com Type (Modem or Local).
Start MicroWin 2000Ex and select the Edit MicroWin tab.
Select the appropriate Com Port.
Com Port
Com Ports 1-4 correspond to the 4 computer ports on your computer. Most computers have at
least Com1 and Com2.
MicroWin 2000EX can detect if the selected port is a valid port or not, but it cannot detect if it is
the Modem or Local port. When MicroWin 2000EX detects an invalid port the following form
will be displayed.
Selecting Com Type
Select the appropriate Com Type from the drop down menu. The Modem and Local choices are
shown below. After selecting the appropriate Com Type select Save.
