Microtel MicroWin 2000EX - Manual (Page 18)

MicroWin 2000EX Manual
12
Init String 1: Default: AT&F&C1&M0
Init String 2: Default:
Init String 3: Default:
The Dial String is sent to the modem appended with the phone number that is getting called. The
default is ATDT.
The Answer String is sent to the modem when MicroWin 2000EX senses that the phone is
ringing. It causes the modem to answer the phone. The default is ATS0=2.
The Hangup String is sent to the modem when a normal drop in DTR doesn’t hang the modem
and dialer up. Initially, the string ‘+++’ is sent and then the Hangup String. The default is ATH.
Avoid COM Port Conflicts
Remember that when MicroWin 2000EX is using a Com Port, make sure that other programs are
NOT setup to use them. Having multiple programs using the same Com Ports at the same time
could cause conflicts which may have undesirable effects.
This system will run concurrently with other software. Software that may cause conflicts with
MicroWin 2000EX could be other communication software. A conflict could arise when more
than one program tries to use the same COM Port. For example, when an internet browser tries to
use the same modem that is used by MicroWin 2000EX, a port conflict will arise.
Local
This port will be used to connect to a S1000EX‘s Printer Port using a standard serial cable. Do
Not use a Null Modem Cable.
NOTE: If this S1000EX has been setup to print to a local printer, the Printer Port setting will
need to be changed. Printing can be disabled by typing 0**53*.

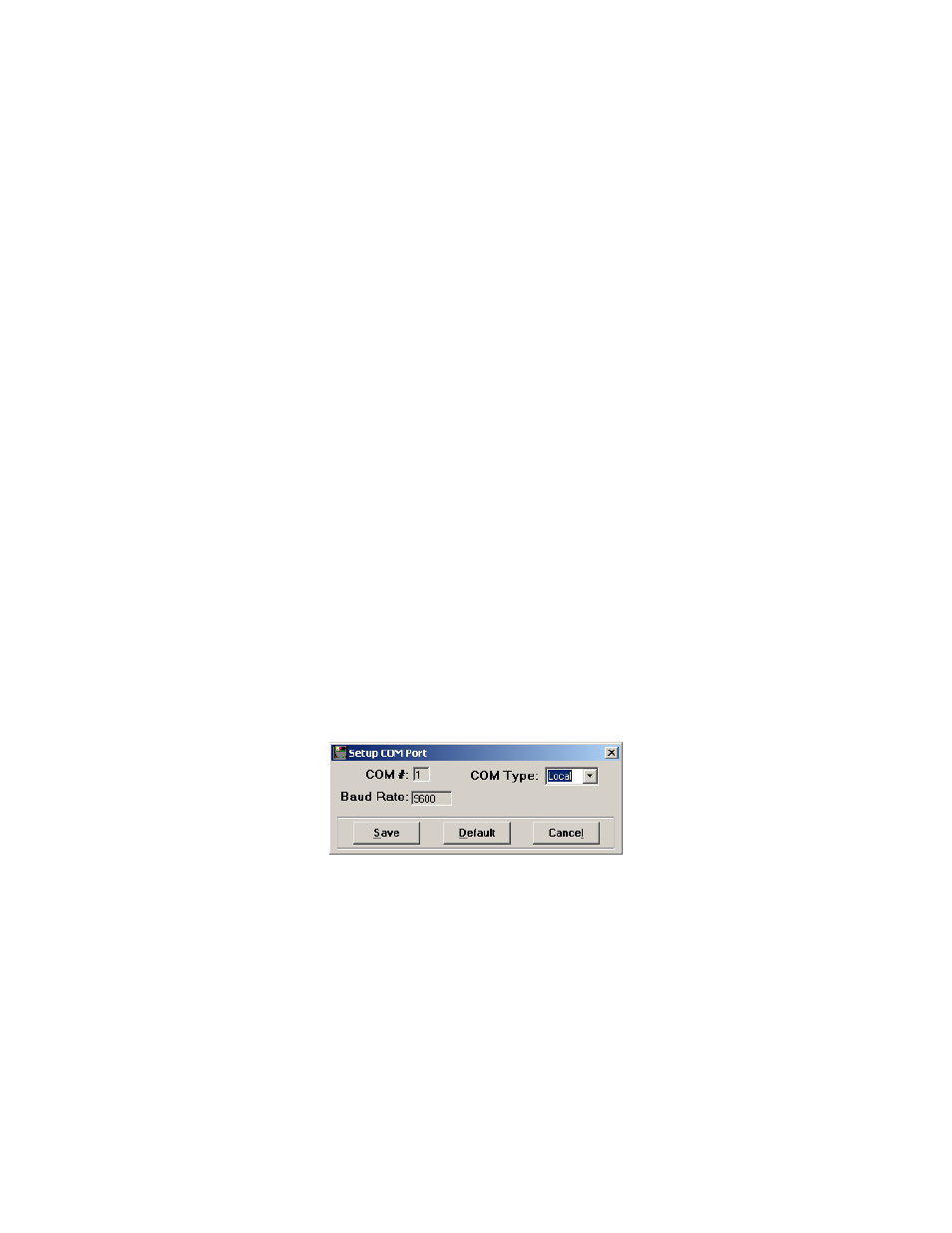

Com Type Local Settings
Baud Rate
The port always connects at 9600.
