Edit Dialer Menu

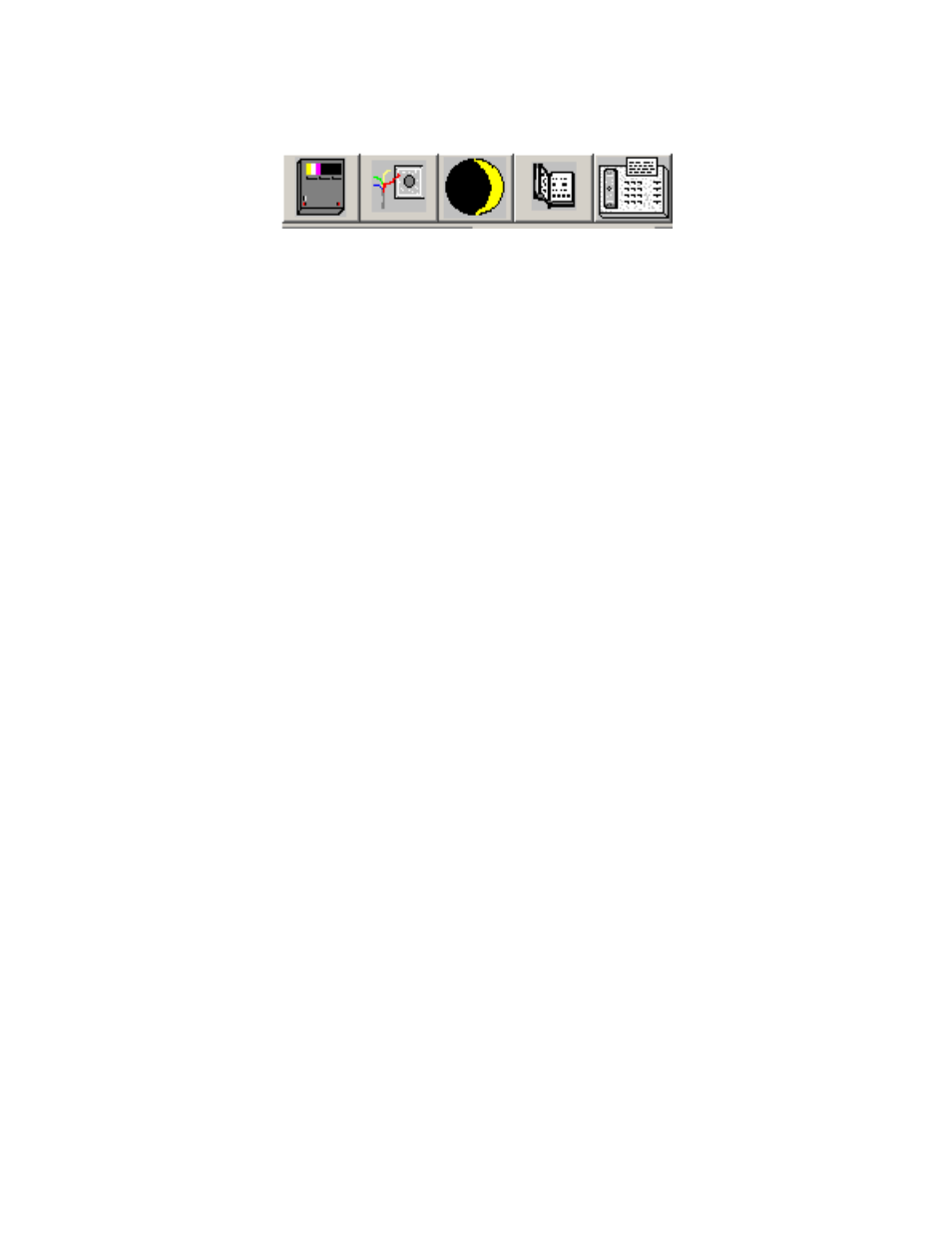

The different sections of a configuration include the System Setup, Calendar Setup, Telephone
Setup, Point Setup, and Archiving Setup.
System Setup: Setup system level information for an S1000EX such as Dialer Name, Phone
Number, Ring Count, Access Code, etc.
Point Setup: Edit how the I/O Points are configured on the dialer. For example, change what
numbers each point calls out to on alarm, the type of I/O Point, how the point status value is
scaled inside MicroWin 2000EX, etc.
Calendar Setup: This is used to setup a dialer’s callout information. A user can setup a dialer to
automatically call a list of telephone numbers at specified times on specified days, and also limit
call outs during specified times on specified days.
Archiving Setup: Setup how a dialer uses its memory to archive channel events. Each channel
can be setup to archive on Status events or Time Based events. This sets up how the dialer’s data
logging features will function.
Telephone Setup: Edit the Phone Numbers that are on the dialer.
The following sections will describe each of the forms in detail. It will be a guide for how to use
these forms to configure a dialer. The overall configuration of a dialer when using a MicroWin
2000EX System will be explained. However, this manual will Not be a replacement for the
S1000EX Manual that comes with the dialer.
