Point Setup
On the Edit Dialer tab,, click the Point Setup button.

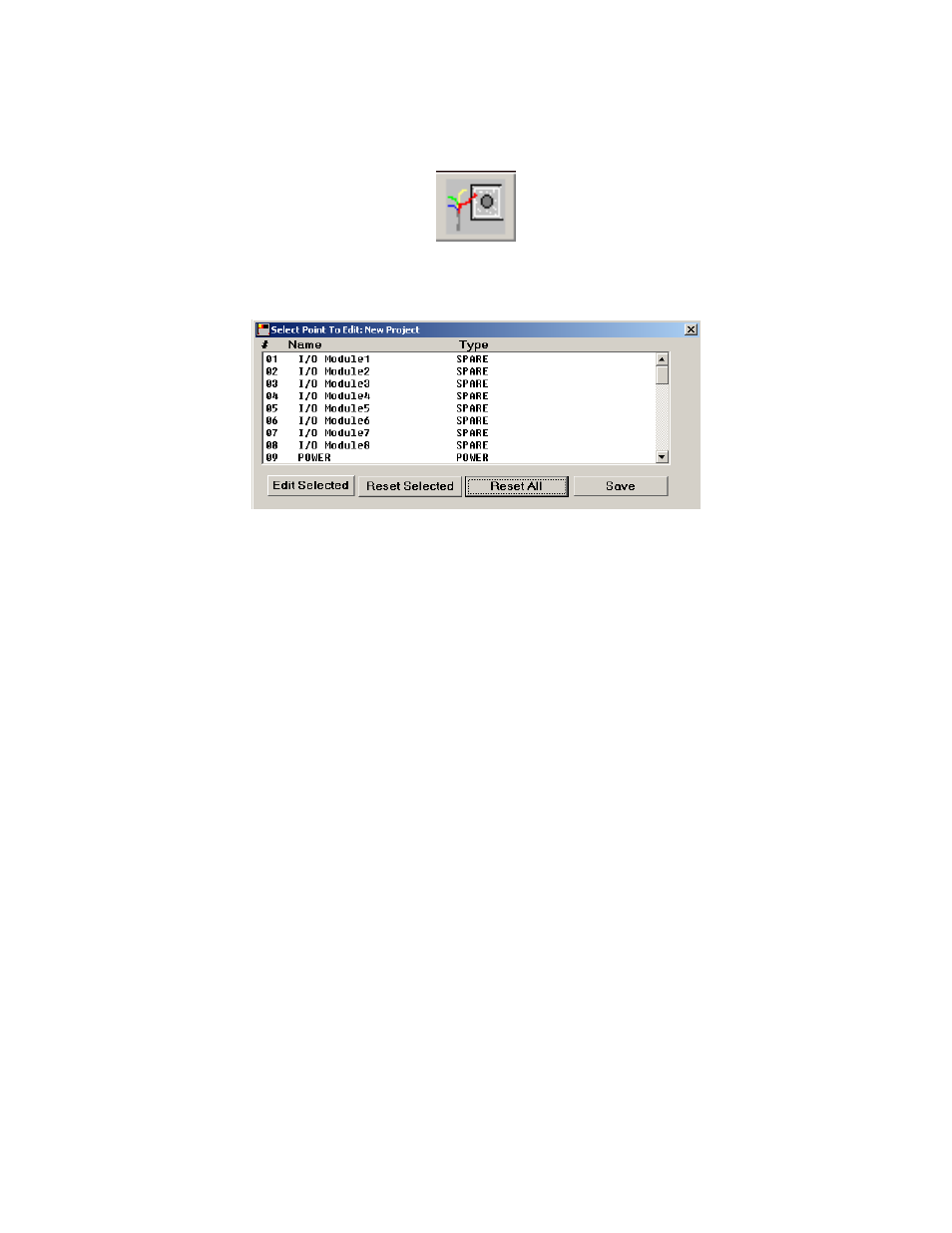

The Point Menu will be displayed. In the title bar, the name of the currently edited entry will be
displayed.
This form is used to see an overview of point configuration that has currently been programmed.
Each point has a Point Name descriptor and a Type that tells how the channel is setup.
Edit Selected
To edit a point, select one of the points in the list box and then click on the Edit Selected button.
This will show the Point Edit form (below). Double-clicking a point in the list box will do the
same thing.
Reset Selected
To reset a particular point to its default, select the desired point and click Reset Selected. A
dialog will ask if this is the desired action. If it is, then the selected point will reset to its default.
Reset All
To reset all the points back to their defaults, click the Reset All button. A dialog will ask if this is
the desired action. If it is, then all the points will be reset to their defaults.
Close
Clicking on Close will move back to the Edit Entry Configuration form.
Editing an I/O Point
The Point Edit form will be displayed when a point has been selected to be edited.
