MicroWin 2000EX Manual
44
The Status Window will show the transfer progress. Once the archives have been retrieved from a
dialer, they are removed from the dialer’s memory
To automatically collect Archives see Polling Mode page 55
View Transferred Archives
Now that the archives have been received from the dialer, the last step in this overview of collecting

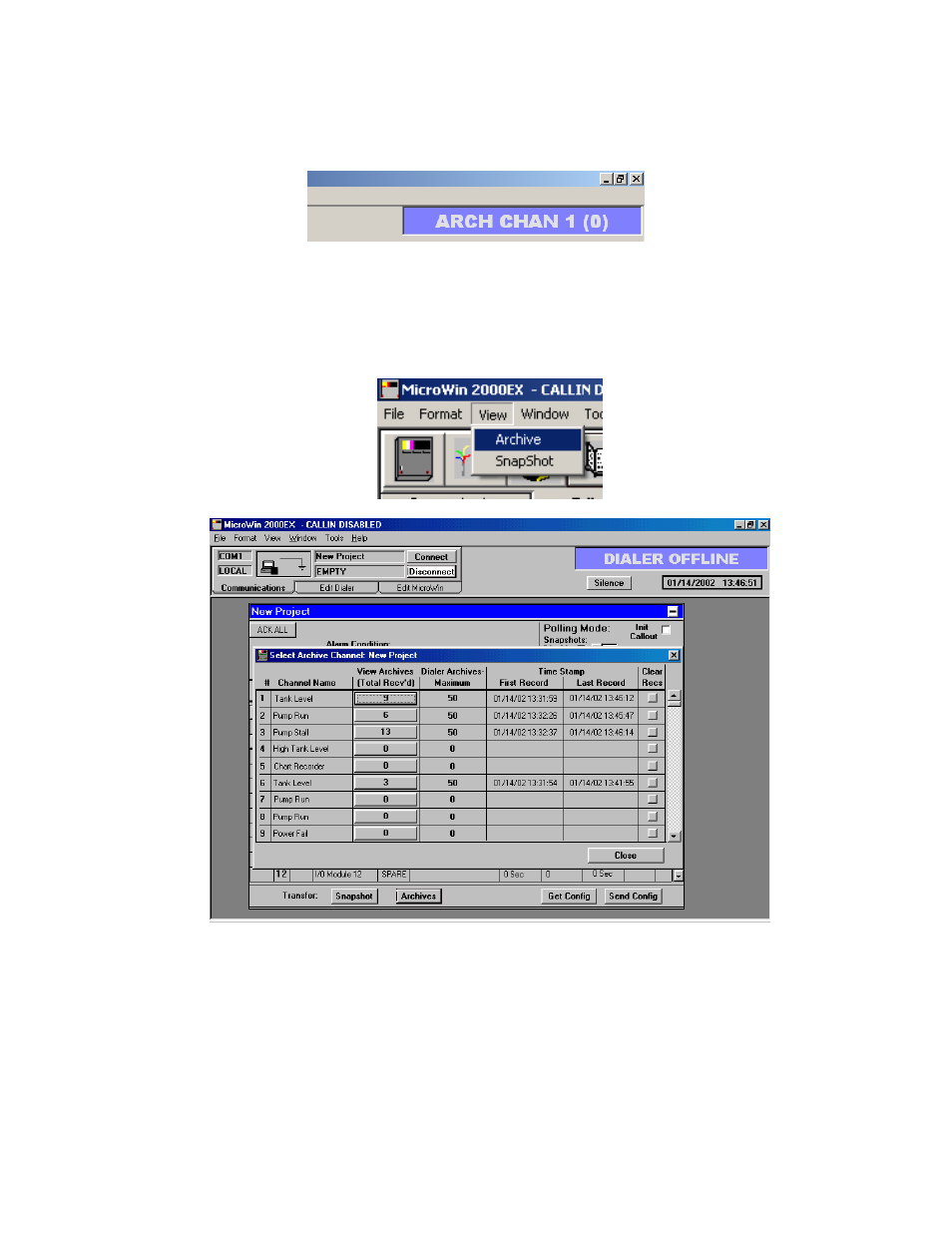

archives is to view these received archives. Select View, Archive menu option from the menu bar.
The above example shows current archiving information about each channel. It shows that
channel 1, named Tank Level, has been setup to record a total of 50 archives. The channel has
currently recorded 9 of these archives. When all 50 archives get recorded for this channel, any
new records will overwrite this channels’ oldest recorded archives, i.e. only the newest 50
archives will be stored for this channel.
It should be noted that in the example above the channel 1 is configured to archive 50 records.
As archives are retrieved the number in the (Total Recv’d) column will continue to count archives
as they are received, and could far exceed 50.
