ENGLISH
Chapter 3: Getting Started
24
DVR User’s Manual
5
Click OK.
6
To lock the screen, right-click to display the Pop-up menu and select Lock.
7
Once the lock function is activated, you need to enter the user name and password before entering the OSD menu.
A virtual keyboard automatically appears on the screen.
Enter Password Enter User Name

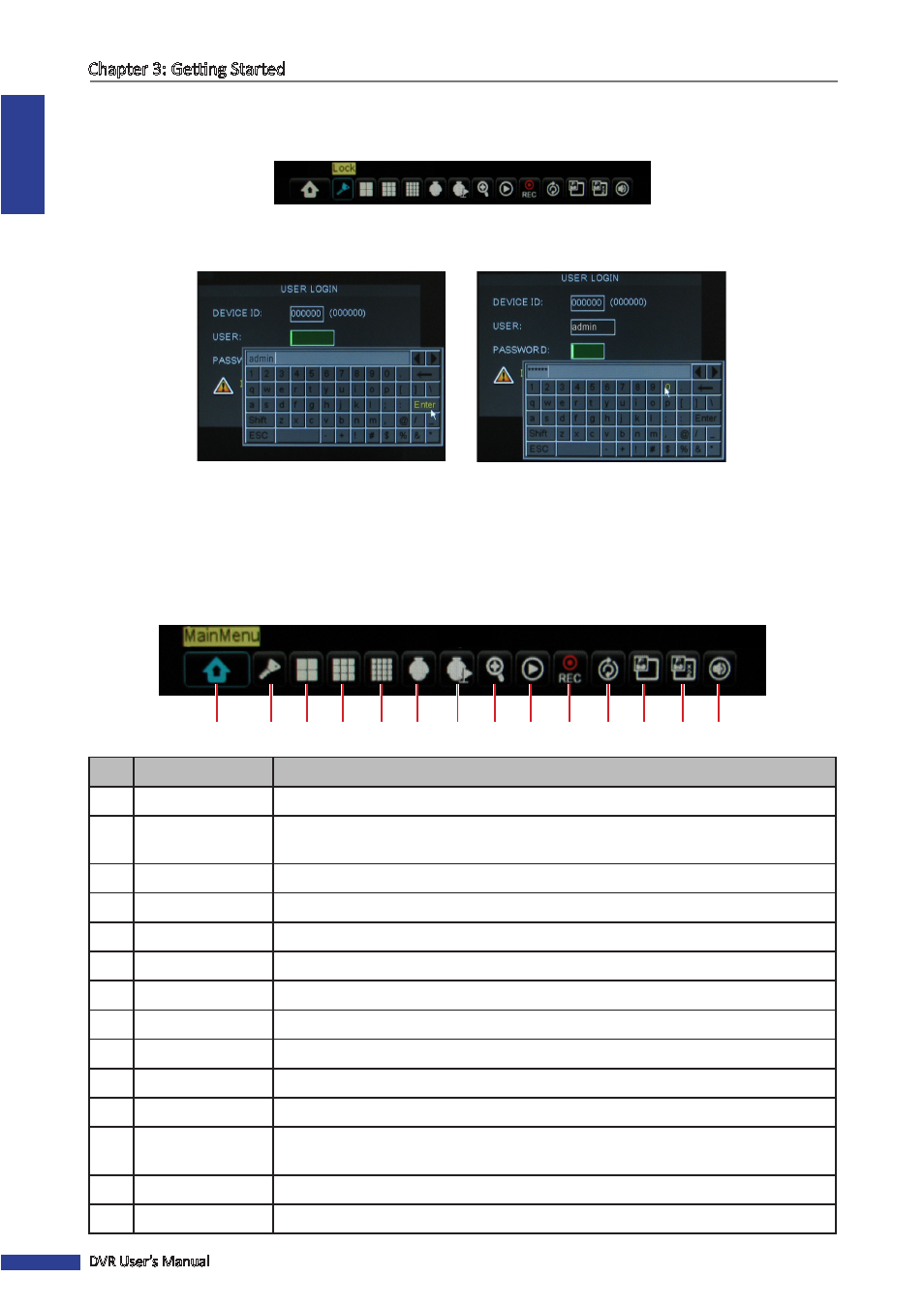

3.3.4 Pop-up Menu
With the Pop-up menu, you can access the main menu and other common features. To bring up the Pop-up Menu,
click on the right mouse button or press the MENU button on the remote control. The available Pop-up menu items
vary depending on the current setting or operation.
1 2 3 4 5 6 7 8 9 10 11 12 13 14
No. Connector Description
1 Main Menu Access the OSD menu and adjust the DVR settings.
2
Lock Lock access to enter the OSD menu. You need to type the user name and password
before entering the OSD menu. See
page 23.
3 View 4 Switch to a 4-window display. See page 27.
4 View 9 Switch to a 9-window display.
5 View 16 Switch to a 16-window display.
6 PTZ Use the PTZ control. See page 29 .
7 Start / Stop Cruise Start/stop cruise of the PTZ camera. See page 30.
8 Zoom Enable zoom. See page 30.
9 Record Search Search for recorded videos to play back. See page 38 .
10 Start / Stop Record Start/stop manual recording. See page 31 .
11 Start / Stop Rotate Start/stop rotation of channel display. See page 28.
12
PIP 1x1 View one channel in full screen with another channel enclosed in a small window. See
page 27.
13 PIP 1x2 View one channel in full screen with two other channels enclosed in small windows.
14 Volume Adjust the volume or mute the audio. See page 31.
