Chapter 2: Installation
20
DVR User’s Manual

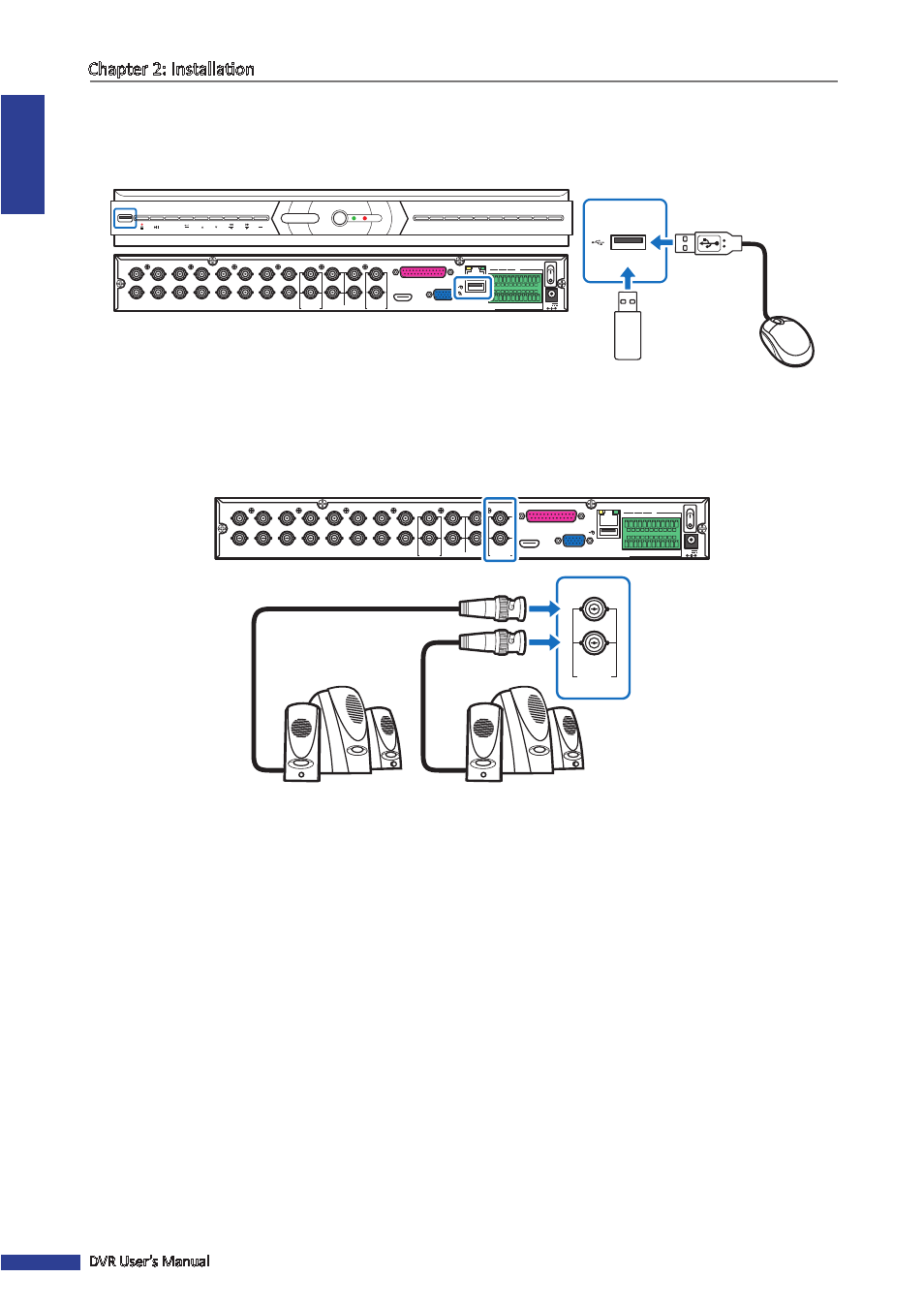

2.9 Connecting to Other Devices
You can connect other devices such as a mouse and a USB storage drive to the DVR. Connect them to the USB port on
the front or the back of the DVR.
WHB
BVEJP!JO!)DI6.DI27*
IENJ
MBO
1
2
AUDIO OUT
VIDEO OUT
AUDIO IN
2
4
1
3
MAIN
SPOT
CH8
CH16
CH7
CH15
CH6
CH14
CH5
CH13
CH4
CH12
CH3
CH11
CH2
CH10
CH1
CH9
H
2
3
4
5
6
7
8
9
:
21 22
,
.
OP DPN H
27 26 25 24 23
ST.596
E, E.
LC
PVU
JO
BMBSN
23W
DISPLAY
PTZ
ESC
MENU
0
1
2
3
4
5
6
7
8
9
2.10 Connecting to Speakers
You can connect speakers to the DVR via BNC cable connection.
