2.1 Installing the Hard Disk Drive
Depending on the package you have purchased, the hard disk drive may be included in the full package. If it is not
pre-installed, follow the installation instructions on this user manual.
DO NOT install or remove the hard disk drive while the device power is turned on.
The 16-channel DVR supports up to two 3.5” SATA hard disk drives. To install the HDD, follow the steps below.

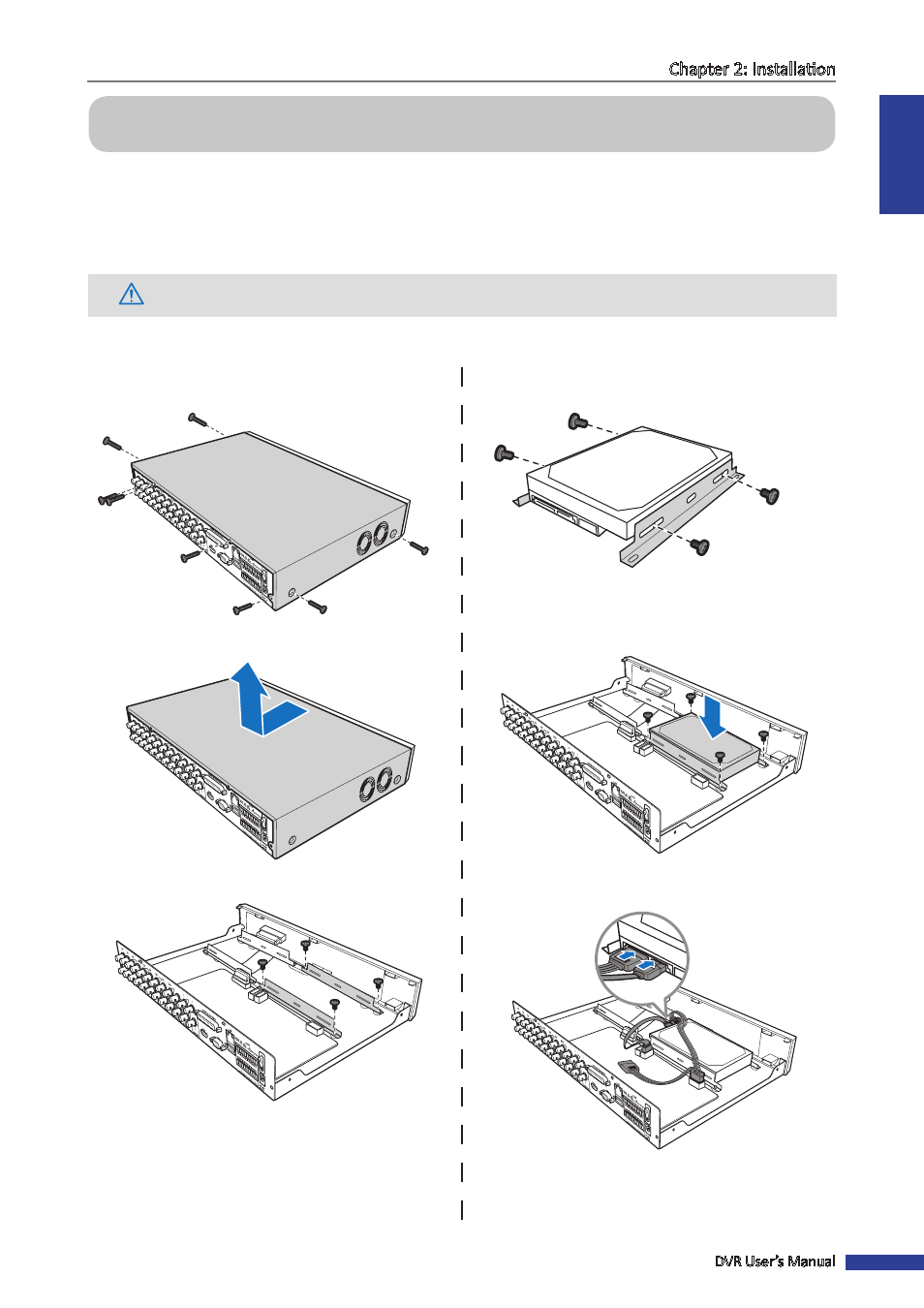

1
Loosen the screws on the left, right, and rear sides as
shown.
2
Push back then lift up the cover to remove it.
3
Detach the screws to remove the HDD bracket.
4
Attach the HDD to the bracket using the four (4)
supplied screws.
5
Attach the bracket back to the compartment using
four (4) screws.
6
Connect the data cables to the hard disk drive (HDD).
