ENGLISH
Chapter 1: Product Overview
10
DVR User’s Manual
1.3 Parts and Functions

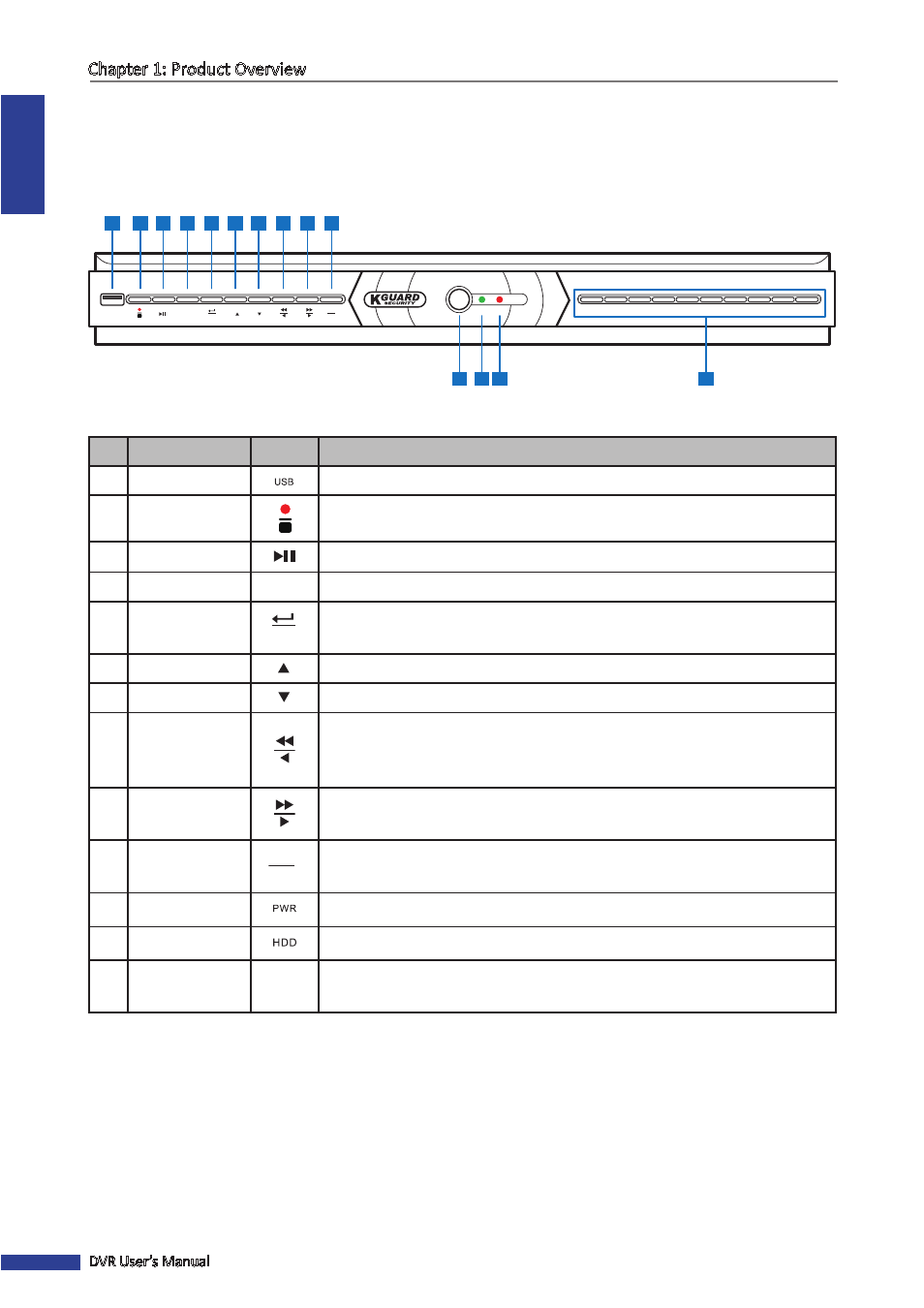

1.3.1 Front Panel
DISPLAY USB PTZ ESC
MENU 0 1 2 3 4 5 6 7 8 9
1 2 3 4 5 6 7 8 9 10
11 12 13 14
No. Item Icon Description
1 USB port Connects to a USB mouse, flash disk, and other external storage drive.
2 Record / Stop Press to start or stop manual recording.
3 Play / Pause Press to play or pause play back of recorded videos.
4 Display DISPLAY Press to display all channels in multi-window.
5 PTZ / Enter
PTZ
In menu options, press to enter the selected menu item and edit the setting.
Press to enter PTZ mode.
6 Arrow Up Press to move up in the OSD menu.
7 Arrow Down Press to move down in the OSD menu.
8
Rewind /
Arrow Left
During video playback, press to rewind the video.
In menu options, press to move left in the OSD menu.
Also used for switching OSD control panel.
9
Fast Forward /
Arrow Right During video playback, press to fast forward the video.
In menu options, press to move right in the OSD menu.
10 Menu / Escape
ESC
MENU
Press to enter or exit the OSD menu.
11 Power Indicator Lights green to indicate the power is turned on.
12 HDD Indicator Lights red when the HDD is being accessed.
13 Channel Buttons 0-9
Press the buttons to view the channel in full screen.
In menu options, press to enter numbers.
