6 Hooking
up
the TV/VCR

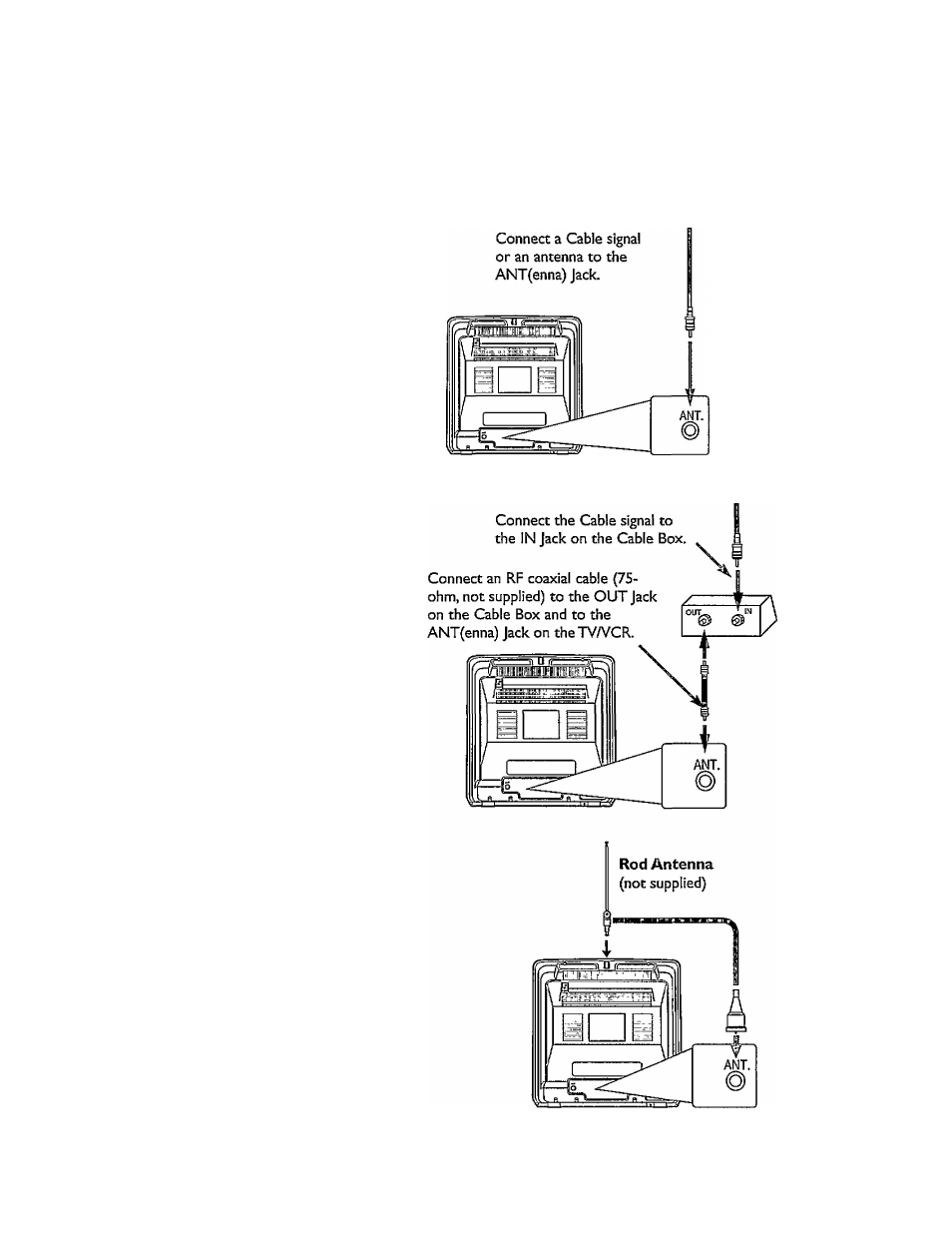

Hook up yourTVAfCR using one of the connections shown.
Hooking Up Your TV/VCR
With a Cable Signal or
Outdoor Antenna
3)
1^0
Hooking UpYourTV/VCR
With a Cable Box
To view any channel, set the TV/VCR
to the Cable Box output channel
(channel 03 or 04).Then, select chan
nels at the Cable Box.
Hooking Up Your TV/VCR
With an Indoor Antenna
To install a rod antenna (not sup
plied), push the stem of the antenna
into the antenna hole on the top of
theTV/VCR. Connect the antenna
wire to the ANT(enna) Jack on the
back of theTV/VCR as shown.
Extend the antenna and adjust its
length, direction, and angle for the
clearest picture.
«
