Automatic Operation Features 49
The following playback features will always operate;
Automatic Playback
When you put a tape in theTVA/CR.the power will come on
automatically. If the tape’s record tab is missing, playback will
begin. (If a timer recording is set, you may have to press the
POWER button to turn on theTVA/'CR. If theTV/VCR is turned
off and a timer recording is set, theTVA^CR will not accept a tape
that is missing a record tab.)
Automatic Rewind, Eject, Off
When a tape is played, fast forwarded, or recorded to its end, the
TVA^CR will rewind the tape, stop, turn itself off, dien eject the
tape. If a real time counter memory is set, the TV/VCR will only
rewind the tape to the point at which the real time counter was
set to zero, then stop. The TV/VCR will not turn itself off or eject
the tape.
Memory Rewind, Power Off
When the POWER button is pressed while theTV/VCR is rewind
ing a tape, REW ^ POWER OFF will appear on-screen. The
TV/VCR will turn itself off when the tape has finished rewinding.
If a real time counter memory is set, the TV/VCR may only rewind
the tape to the point at which the real time counter was set to
zero, then turn itself off.
Tape Eject
A tape can be ejected with theTV/VCR power on or off (but the
TV/VCR must be plugged in). If a timer recording is programmed,
a tape can not be ejected when the power is off. Turn on the
TV/VCR power, then eject the tape. Be sure to insert a tape and
turn off theTV/VCR power for the timer recording.
Automatic Tracking Adjustment
The TV/VCR has automatic tracking, which condnually adjusts
tracking to give you the best possible picture quality. With some
recordings, however, you may get a better picture using the manual
tracking controls (see below).
Manual Tracking
To adjust the tracking manually during tape playback, press the
CHANNEL Up/Down buttons on theTV/VCR.
NOTES:
• To return tracking to the position it v/as in when the TV/VCR was
shipped from the factory, press the CHANNEL Up/Down buttons on
the TV/VCR at the same time.
• Tracking is returned to automotic tracfdng when a tape is inserted, or
when the STOP/Y button is pressed to halt playback.

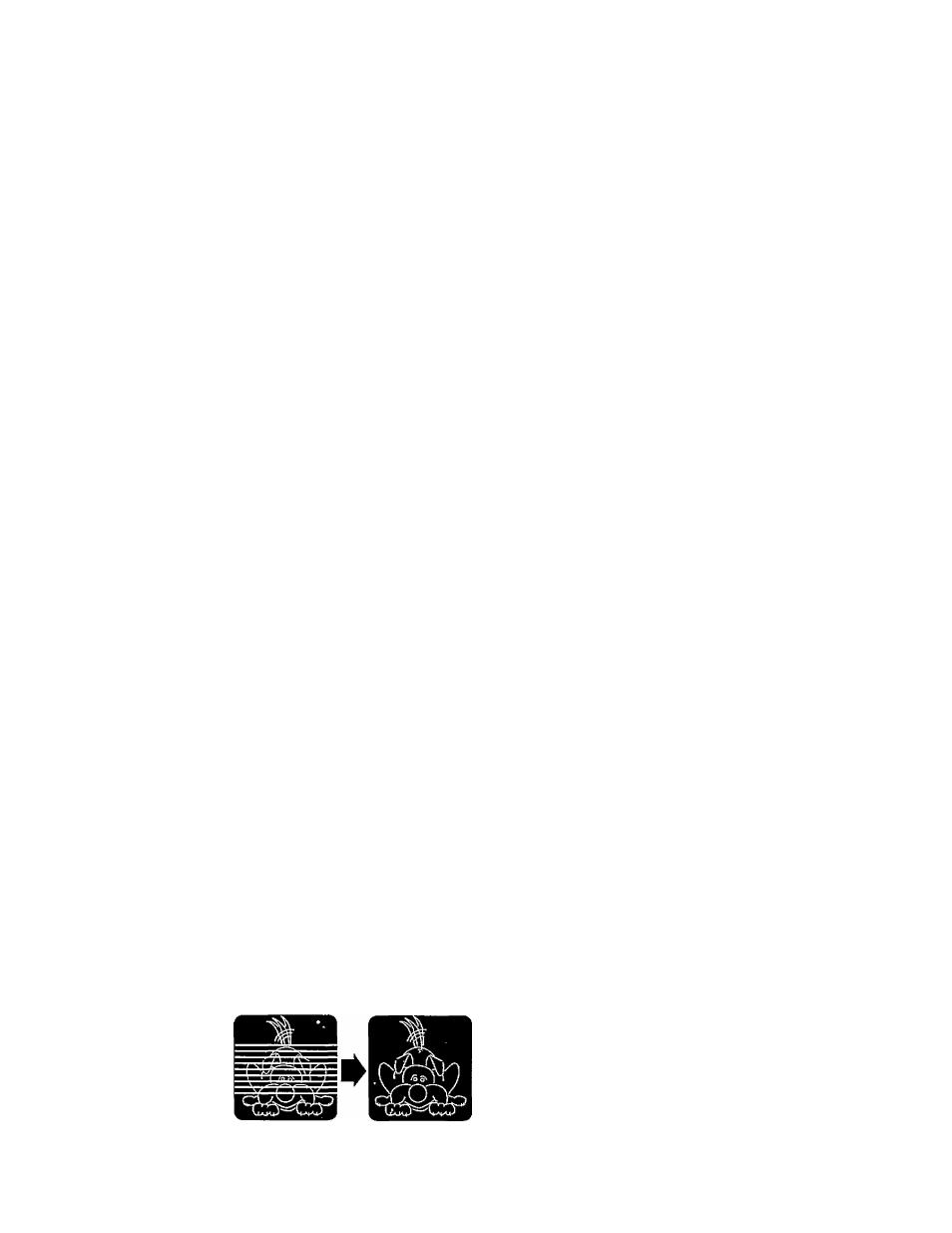

Before Tracking
Adjustment
After Tracking
Adjustment
