Graphing Data from an Entire Run
There are occasions when it is necessary to review all of the data created during one test outing
on the track (Runfile). Data from a Runfile may be graphed the same as data from a Lapfile.
Often times, changes that occur are often easier to detect when reviewing the entire Runfile, as
opposed to reviewing only one lap of information.
To graph Runfile data:
1. Double click the Clear all Graphs icon in order to remove all graphed data
from the Main Graph area.
2. Left click over the desired Runfile tab.
3. Graphed the desired channel.
4. Left click the Autoscale icon, located in DataLink II icon list

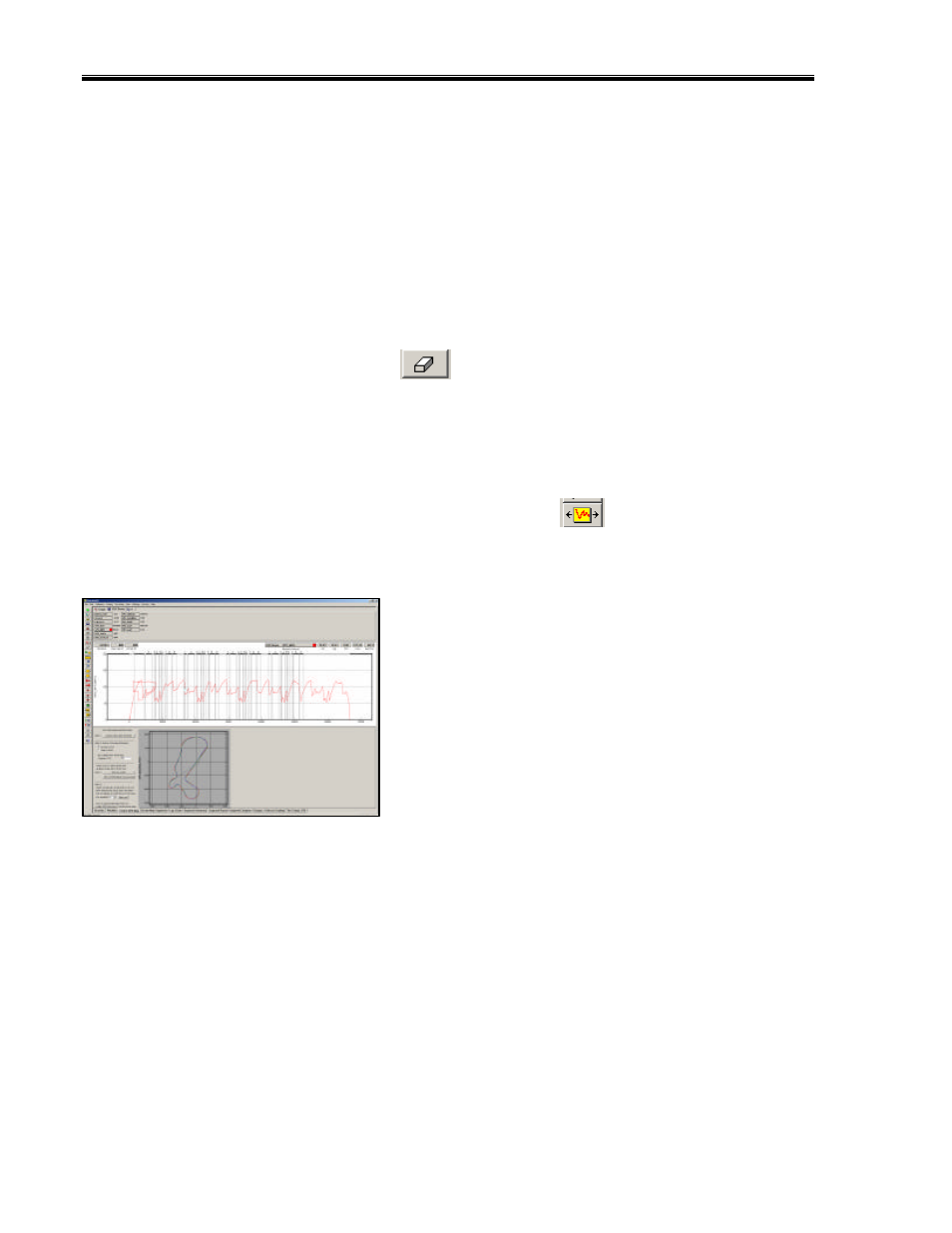

5. The screen should appear as below.
As can be seen, the entire GPS_MPH, from start of logging until end of logging, can now be
reviewed.
