Graph Scaling Values Changed per Channel
The DataLink II program provides two methods to change graph scaling. The first method will
change the scaling for one channel within one file.
To change individual channel scaling:
1. Place the mouse cursor over the desired Channel Button and right click the mouse
button. For this example, we selected GPS_MPH.

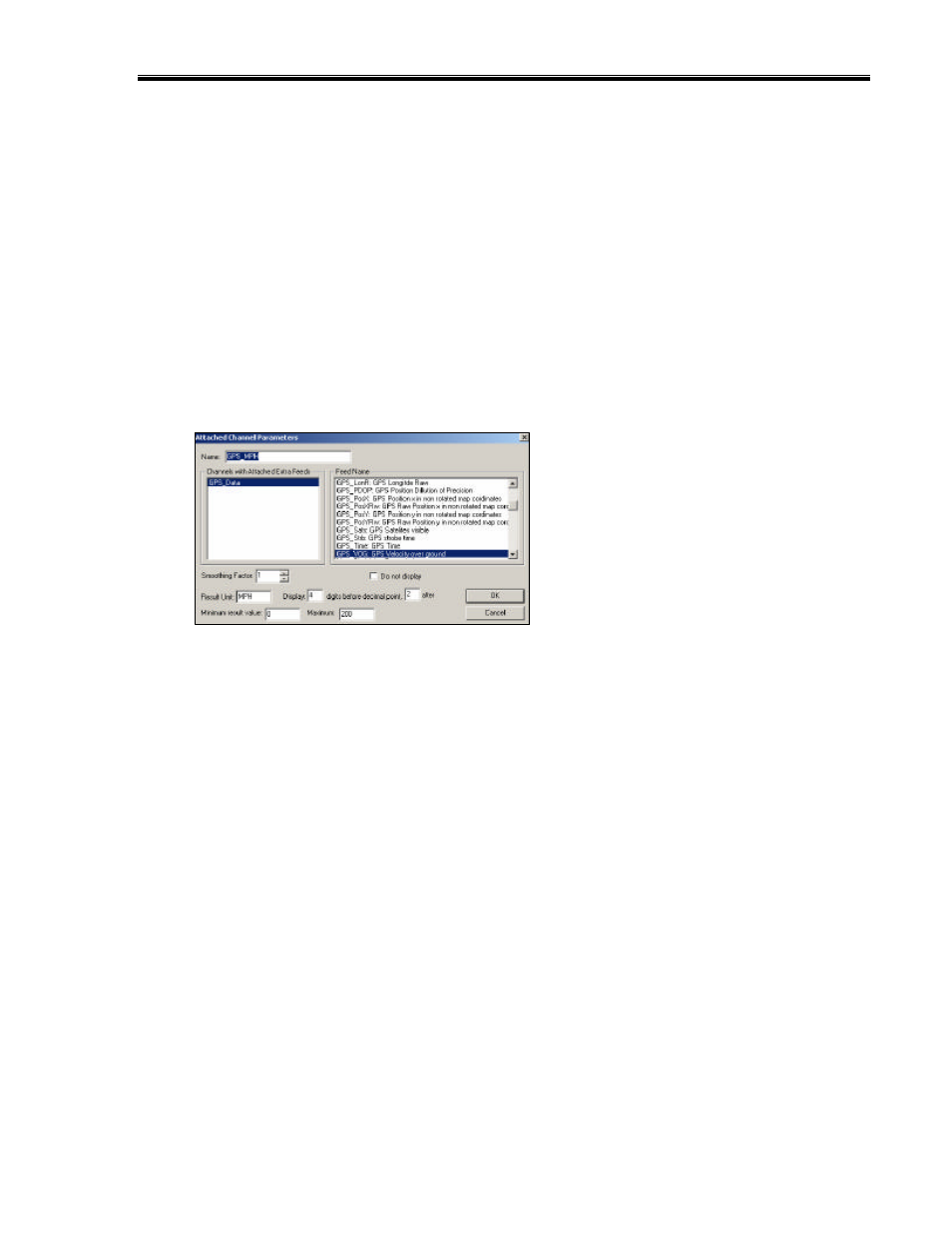

2. The Edit Dialog Box for that channel will be displayed.
The Minimum and Maximum result values correspond to the minimum and maximum values
displayed in the Main Graph area, for that channel.
3. To set the graph to display from 0 to 100 MPH, simply enter the minimum and maximum
values accordingly.
4. Select OK
