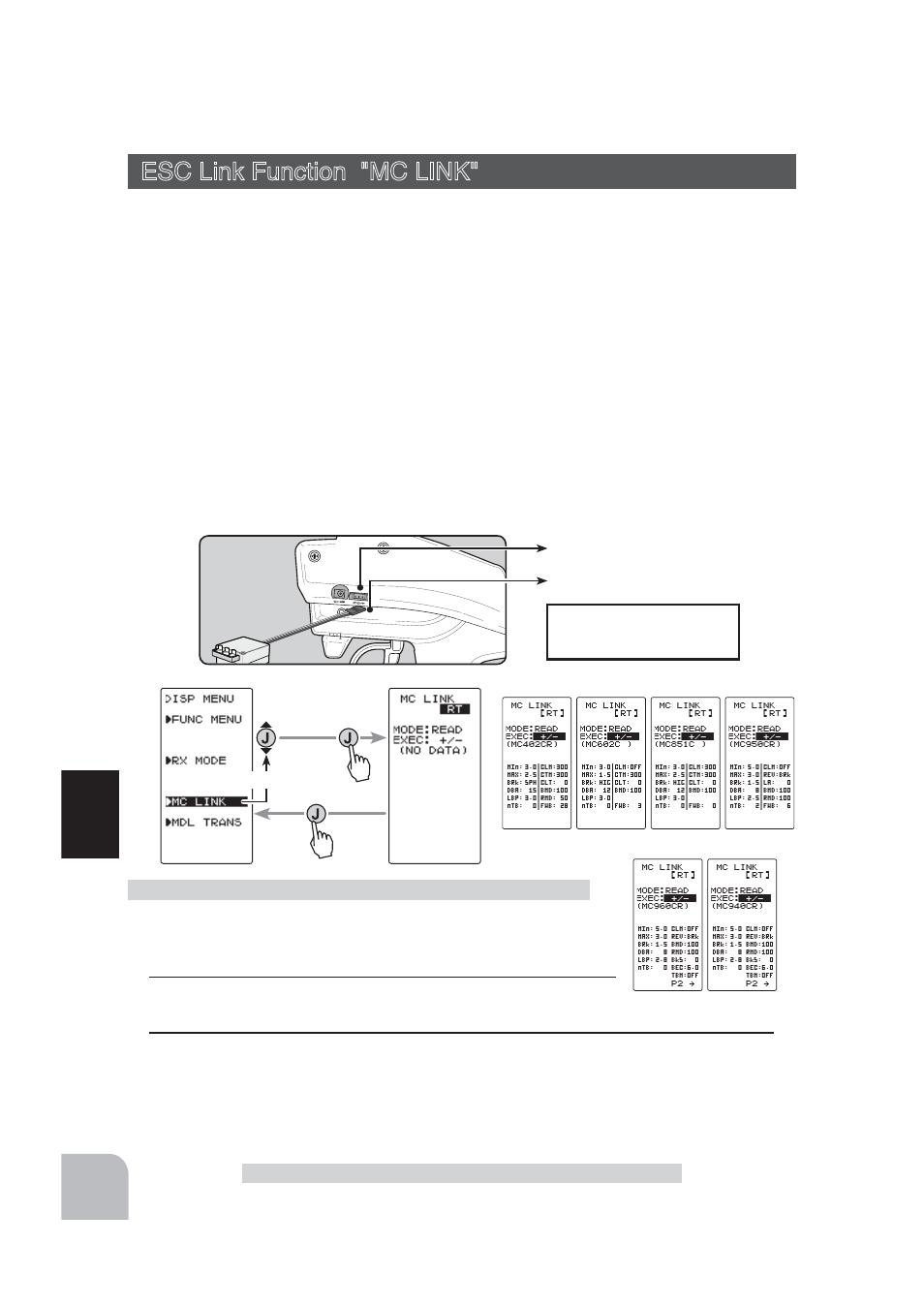

Futaba 4PLS 2.4GHz FHSS - Manual (Page 84)

Communication port
ESC receiver connector
Connecting ESC receiver
connector to the transmitter
Communication port
Connection diagram
84
Fu
n
c
tio
n
(Preparation)
-Connect the T4PLS and ESC in accordance with the connection
diagram, and connect the battery to ESC.
1
Set the transmitter power switch to the display side (DISP).
Display the MC LINK function screen in the above manner.
Using the ESC Link function
ESC Link Function "MC LINK"
This is a special function which lets you set the contents of the Link software
which performs Futaba speed controller (ESC), MC960CR, MC940CR, MC950CR,
MC851C, MC602C, MC402CR, etc. variable frequency and other data changes at
the T4PLS transmitter. However, some data changes require a PC and Link soft-
ware. This function is used by connecting ESC directly to the transmitter. The
T4PLS power switch is used at the display side. Use the various optional servo ex-
tension cords according to the distance between the transmitter and ESC. The last
data read from ESC to T4PLS or the last data written from T4PLS to ESC is saved
to the T4PLS. Since the data for each model memory can be saved, the data of up to
40 models can be saved.
-When the T4PLS battery voltage drops, the display switches to low battery display. Therefore, use this function when there
is ample battery capacity remaining.
-Also connect the battery at the ESC side.
-
Note: Do not read to the T4PLS an MC940/960CR whose speed was set to over 99990rpm by Link software side Boost An-
gle rpm setting.
ESC Link Function "MC LNK"
2
(ESC read)
Execute this function to read the connected ESC type and the data currently set at the
amp. To save the ESC data to the T4PLS, rewrite the read data.
When you want to write the data saved in the T4PLS to an ESC of the same type, exe-
cute the following "WRITE"(write) without executing "READ"(read).
MC LINK screen
Press
(SISP MENU screen)
Press
Select "MC LINK"
MC402CR MC602C MC851C MC950CR
MC960CR MC940CR
