Fu n c tio n – Futaba 4PLS 2.4GHz FHSS User Manual

Page 60

Fu
n

tio

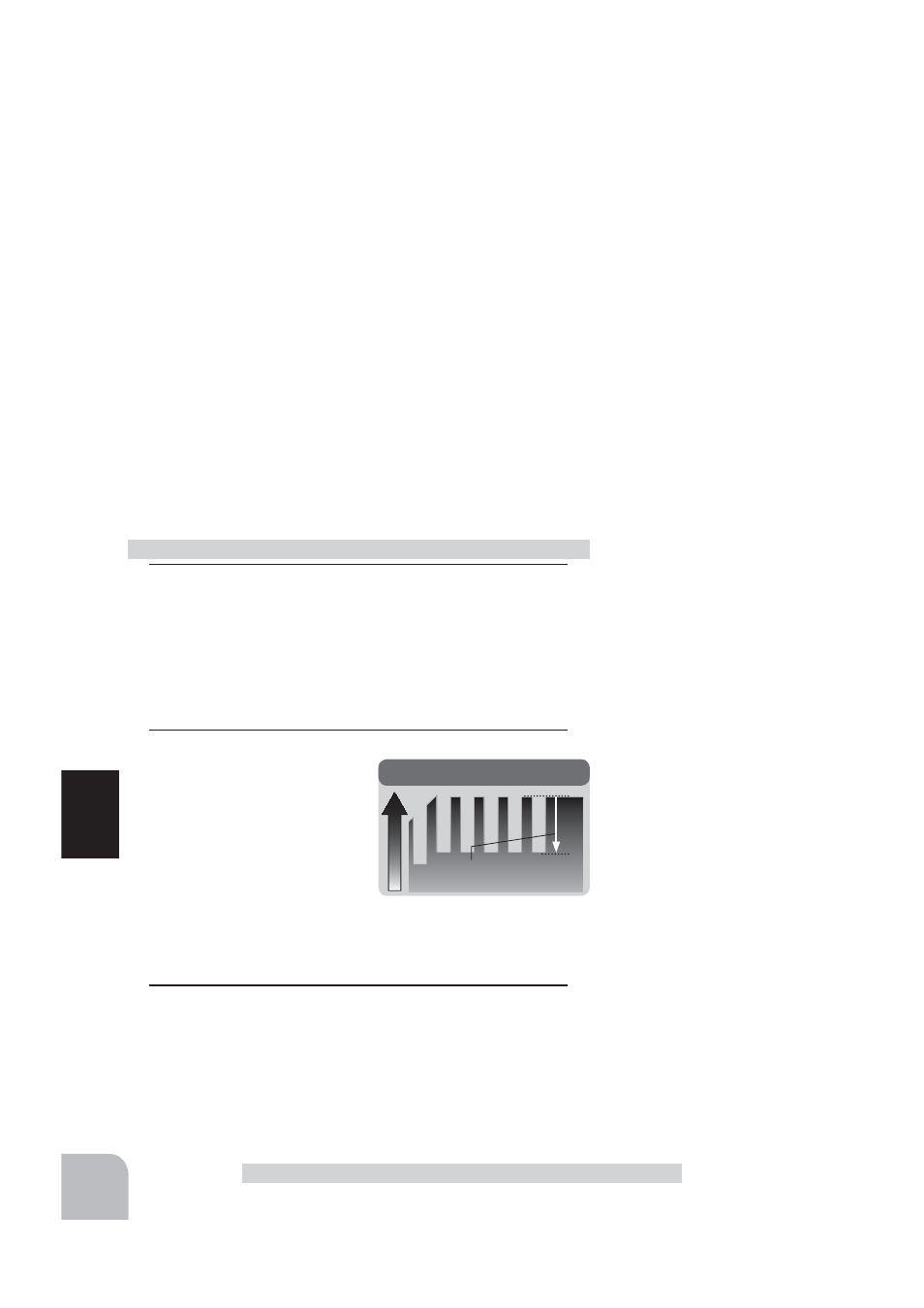

AB.P
(Amount of brake return)

AB.P

Ser

A.B.S. Function "TH A.B.S"

- DELY : Delay

Sets the delay from brake operation to ABS operation. When set to 0%, the ABS func-
tion is activated without any delay. At 50%, the ABS function is activated after a delay
of approximately 1 second and at 100%, the ABS function is activated after a delay of
approximately 2 seconds.

- CYCL : Cycle speed

Sets the pulse speed (cycle). The smaller the set value, the faster the pulse cycle.

- TG.P : Trigger point

Sets the trigger point at which the ABS function begins to operate at brake operation.

- DUTY : Cycle duty ratio

Sets the proportion of the time the brakes are applied and the time the brakes are re-
leased by pulse operation. The ratio can be set to HIGH, MID or LOW.

- MODE : Function ON/OFF

ABS function ON/OFF setting. When using the ABS function, set to "ACT(ON)".

(Function ON/OFF)

Select the setting item "MODE" by the (JOG) button up

or down operation. Set the function to the active state by

pressing the (+) or (-) button.

"INH(OFF)" :Function

OFF

"ACT(ON)" :Function

"ACT(OFF)"

:Switch OFF when setting switches

(Brake return amount adjustment)

Select the setting item "AB.P"

by the (JOG) button up or

down operation. Use the (+)

or (-) button to adjust the re-

turn amount.

"0" :No

return

"50"

:Return to the 50% position of the brake operation amount

"100"

:Return to the neutral position.

(Delay amount setup)

Select the setting item "DELY" by the (JOG) button up or

down operation. Use the (+) or (-) button to adjust the de-

lay amount.

"0"

:A.B.S. function performed without any delay

"50"

:A.B.S function performed after an approximate 1 sec delay.

"100"

:A.B.S. function performed after an approximate 2 secs delay.

A.B.S function adjustment

- Brake return amount (AB.P)

is influenced by the "EXP"
rate on the brake side.

Delay amount (DELY)
0 ~ 100
Initial value: 0

Adjustment buttons
- Use the (+) and (-) buttons to

make adjustments.

- Return to the initial value by

pressing the (+) and (-) but-
tons simultaneously (approx.
1 sec).

Adjustment buttons
- Use the (+) and (-) buttons to

make adjustments.

- Return to the initial value by

pressing the (+) and (-) but-
tons simultaneously (approx.
1 sec).

Brake return amount (AB.P)
0 ~ 50 ~ 100
Initial value: 50

Function ON/OFF (MODE)

INH(OFF), ACT(ON,OFF)

Select button
- Select with the (+) or (-) but-

tons.
