Dual esc mixing "dual esc, Fu n c tio n, Throttle system) – Futaba 4PLS 2.4GHz FHSS User Manual

Page 74

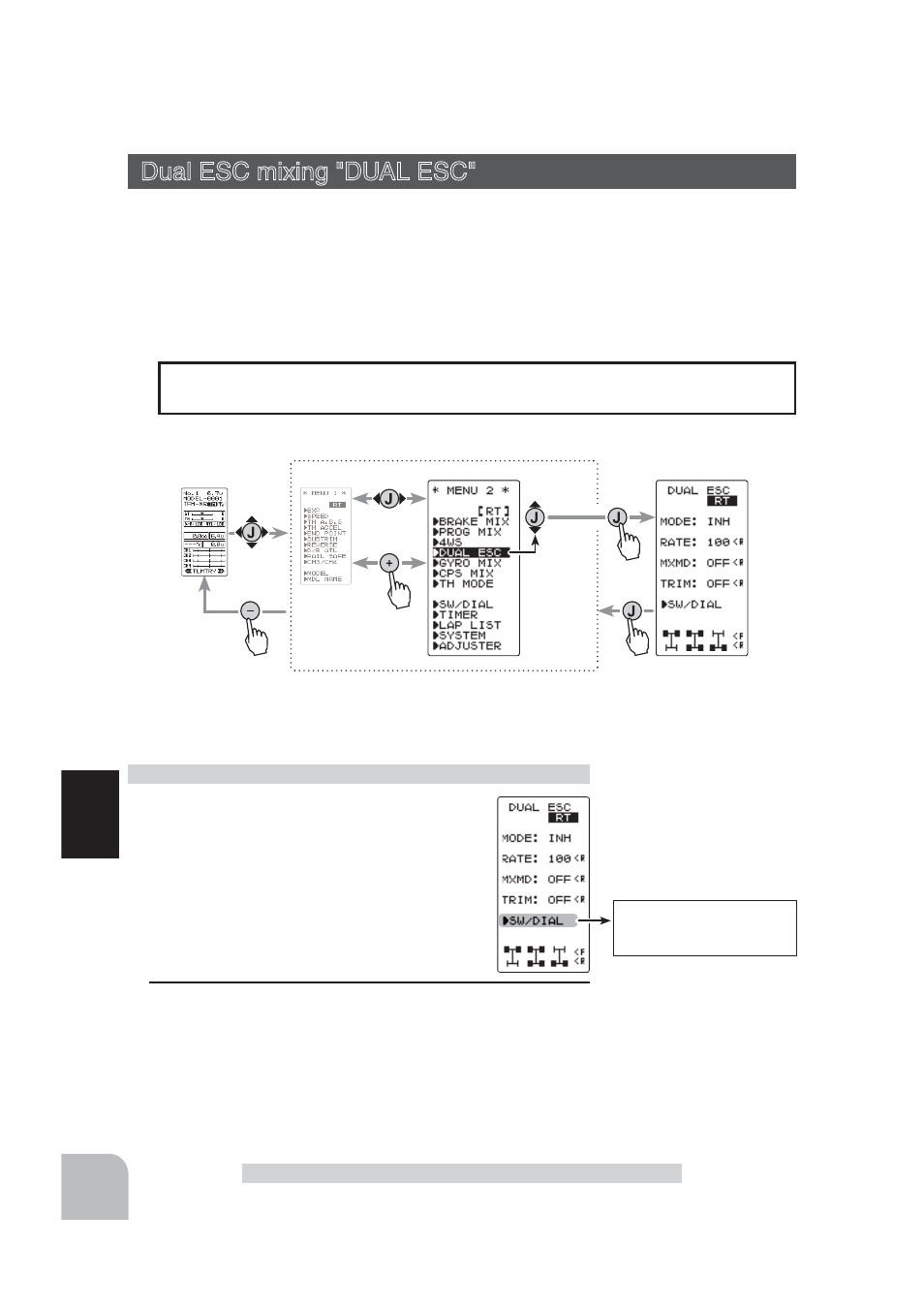

Press

(HOME screen)

(MENU 1 screen)

(DUAL ESC screen)

(MENU 2 screen)

Press

Select
"DUAL ESC "

The function select switch
screen (P65) can be dis-
played from this screen.

Fu
n

tio

Dual ESC mixing "DUAL ESC"

This function is mixing used with crawlers and other 4WD type vehicles and uses the
2nd CH to control the front motor controller and the 4th CH to control the rear motor
controller.

Front drive only, rear drive only, or both front and rear drive can be selected using any
programmed DT (digital trim) button.

Dual ESC mixing "DUAL ESC"

(Throttle system)

(Preparation)

- This function is used to switch between front

drive/4WD/rear drive using one of the dial

(trim). Set the desired dial (trim) for this func-

tion using the SW/DIAL screen (P65).

(Dual ESC setting)

Select the setting item "MODE" by the (JOG) button up or

down operation. Set the function by pressing the (+) or (-)

button.

"INH" : Function OFF
"ACT" : Function ON

Dual ESC mixing adjustment

Function ON/OFF (MODE)
INH, ACT

Display "DUAL ESC" function screen by the following method:.

When the 4th CH was set to ACT at Brake Mixing (p.68) or when CPS Mixing (p.78)
is used, Dual ESC mixing cannot be used.

Setting Special mixings

Setup items

MODE : Function ON/OFF
RATE :

4ch rate (Rear side)

MXMD : Mix mode
TRIM :

Trim

mode

Function SW
ESC-MD

Select button
- Select with the (+) or (-) but-

tons.
