ZYBO™ FPGA Board Reference Manual

Copyright Digilent, Inc. All rights reserved.

Other product and company names mentioned may be trademarks of their respective owners.

Page 2 of 26

The ZYBO is compatible with Xilinx’s new high-performance Vivado Design Suite as well as the ISE/EDK toolset.
These toolsets meld FPGA logic design with embedded ARM software development into an easy to use, intuitive
design flow. They can be used for designing systems of any complexity, from a complete operating system running
multiple server applications in tandem, down to a simple bare-metal program that controls some LEDs.

An accessory kit that contains a 5V/2.5A power adapter, a USB A to Micro B cable, an 8GB speed class 10 microSD
card, and a Xilinx voucher for a Vivado Design Suite license will be available to purchase separately off of the
Digilent website in the near future. The Vivado Design Suite license enables use of the Logic Analyzer tools, which
accelerate debug and testing. This license is a 1 year, device-locked license, and will only work with the Z-7010
Zynq part on the ZYBO. After the license expires, any version of Vivado Design Suite that was released during this 1
year period can continue to be used indefinitely.

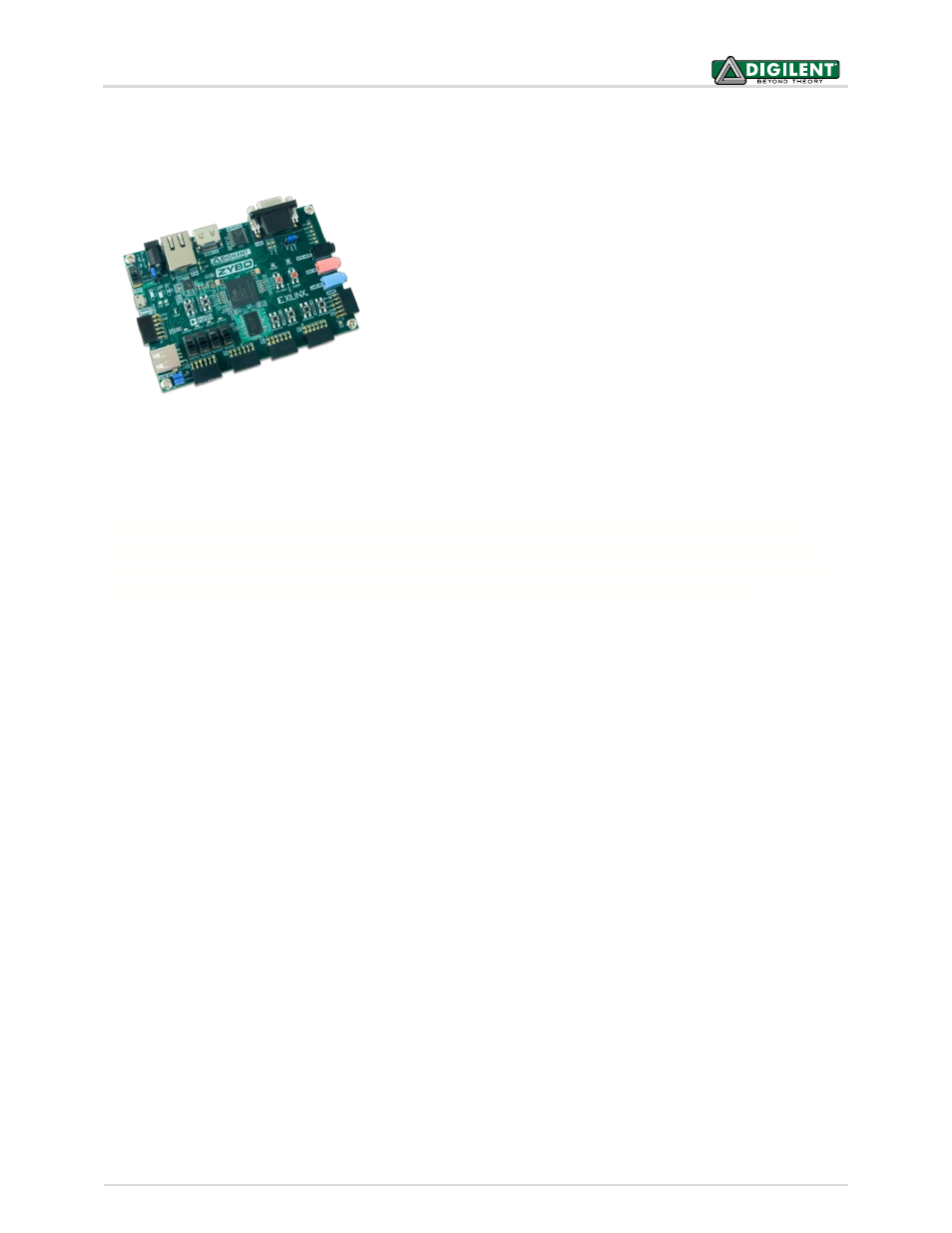

Figure 1. ZYBO Zynq-7000 development board.

ZYNQ XC7Z010-1CLG400C

512MB x32 DDR3 w/ 1050Mbps bandwidth

Dual-role (Source/Sink) HDMI port

16-bits per pixel VGA source port

Trimode (1Gbit/100Mbit/10Mbit) Ethernet PHY

MicroSD slot (supports Linux file system)

OTG USB 2.0 PHY (supports host and device)

External EEPROM (programmed with 48-bit globally
unique EUI-48/64™ compatible identifier)

Audio codec with headphone out, microphone and line
in jacks

128Mb Serial Flash w/ QSPI interface

On-board JTAG programming and UART to USB
converter

GPIO: 6 pushbuttons, 4 slide switches, 5 LEDs

Six Pmod connectors (1 processor-dedicated, 1 dual
analog/digital, 3 high-speed differential, 1 logic-
dedicated)
