Replacing the Ink Ribbon
EOl-11072

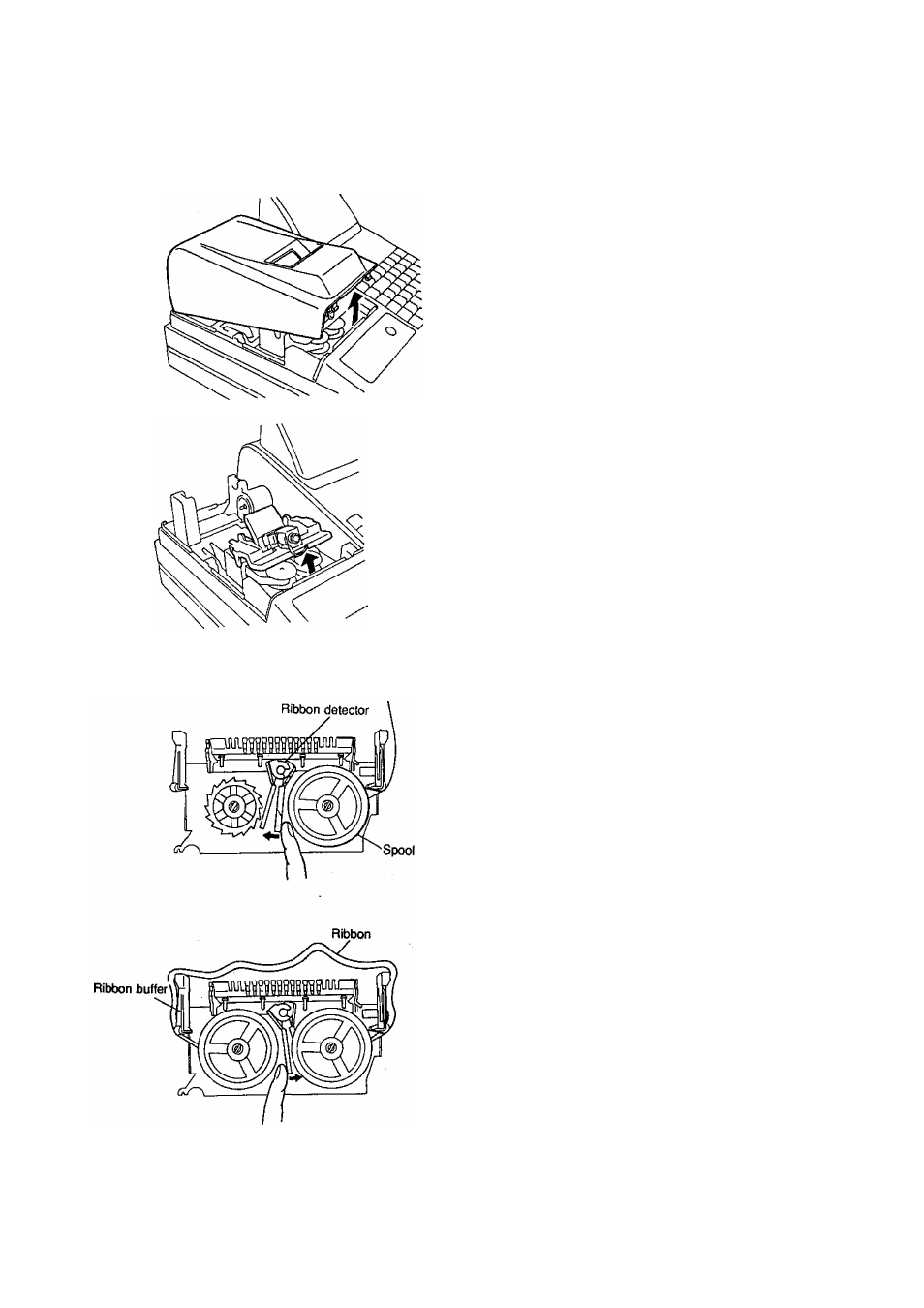

Remove the Printer Cover.
Lift the Stamp Unit as shown in the
figure, then remove the ribbon by
pulling the ribbon spools upward.
Install one of the ribbon spools as
shown in the figure while moving the
ribbon detector so that the ribbon is
not caught.
Thread the ribbon around the ribbon
buffer, and then install the other
ribbon spool while pushing the
ribbon detector aside so that it may
not catch the spool.
Turn the ribbon spool several times
to remove the slack in the ribbon.
- 1 0 4 -
