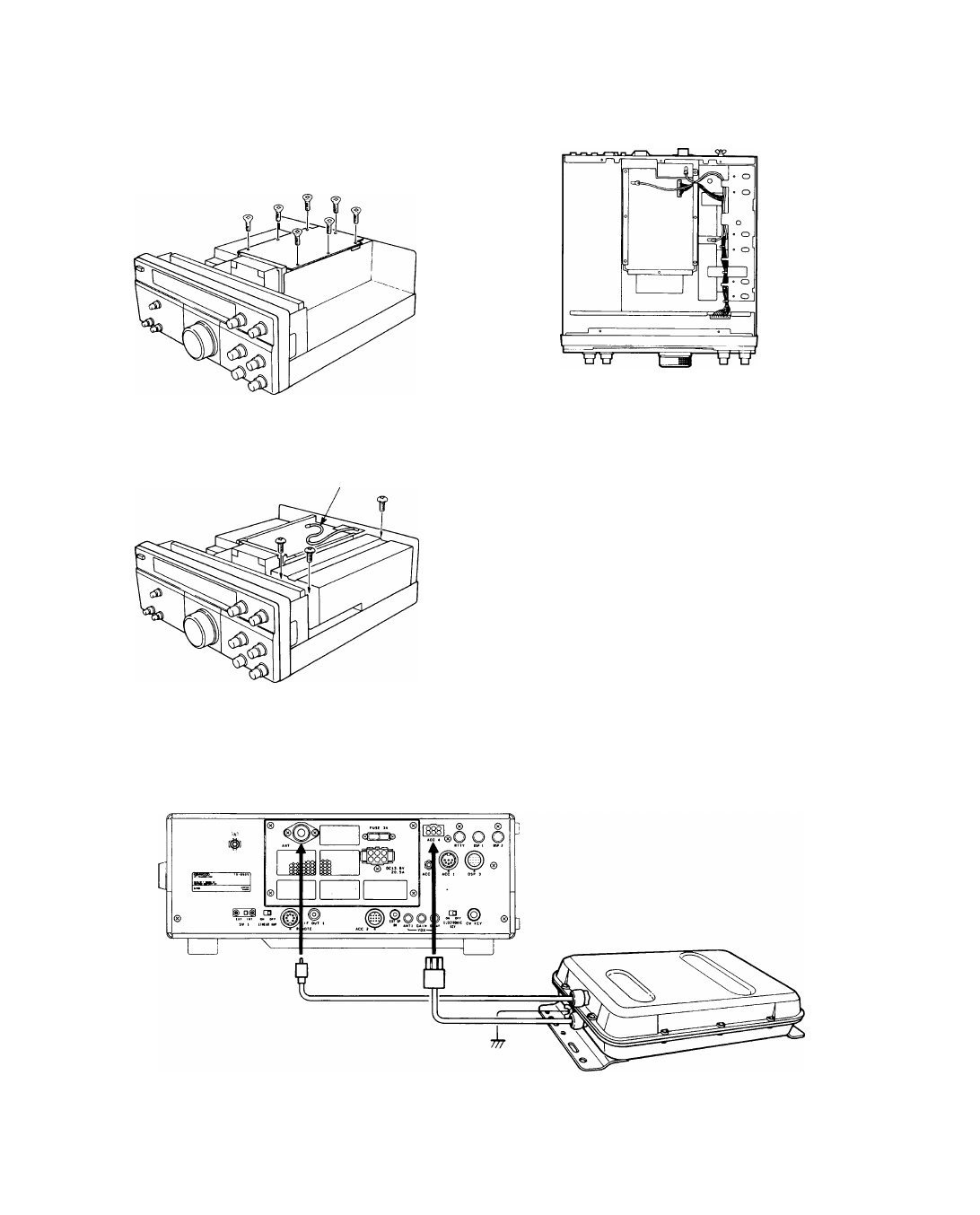

7-8. AT-850 AUTOMATIC ANTENNA TUNER UNIT INSTALLATION

1. Remove the top cover of the transceiver. Refer to

Section 6-6-1.

2. Remove the shield cover of the filter unit.

5. Attach the cables from the AT-850 as shown.

3. Carefully remove the coaxial cable.
4. Attach the AT-850 and screw it on.

6. Replace the shield cover and the top cover.

Coaxial cable

7-9. AT-300 AUTOMATIC ANTENNA TUNER CONNECTION

When the AT-300 is connected to this unit, slide switch SW1 on the back to EXT. The built-in antenna tuner will
then not operate.
