ABOUT THE WOOD IN THE KIT
We strive to supply good quality materials in your kit.
Wood parts are inspected with regard to the function
they will serve. If an imperfection is spotted in a scrap
corner of a die-cut sheet and doesn't affect actual parts,
the sheet is considered acceptable. Also, internal
stresses in wood are relieved as it is cut into parts.
These relieved stresses may cause some parts to bow.
Bows in wood parts (such as leading edges) readily
straighten out as they are Super Jeted into a structural
unit
WOOD PARTS
Be careful when removing parts (such as fuselage
sides) from the die-cut sheets. Long parts are fragile
until Super Jeted into a structural unit. If necessary,
use a razor knife or razor saw to assist in the removal
of parts from the sheet. Sometimes a little trimming and
sanding can improve parts, where desired. Save scrap
until the model is completed, in case a part is missing
or damaged. Also, scrap is used in some building
steps.

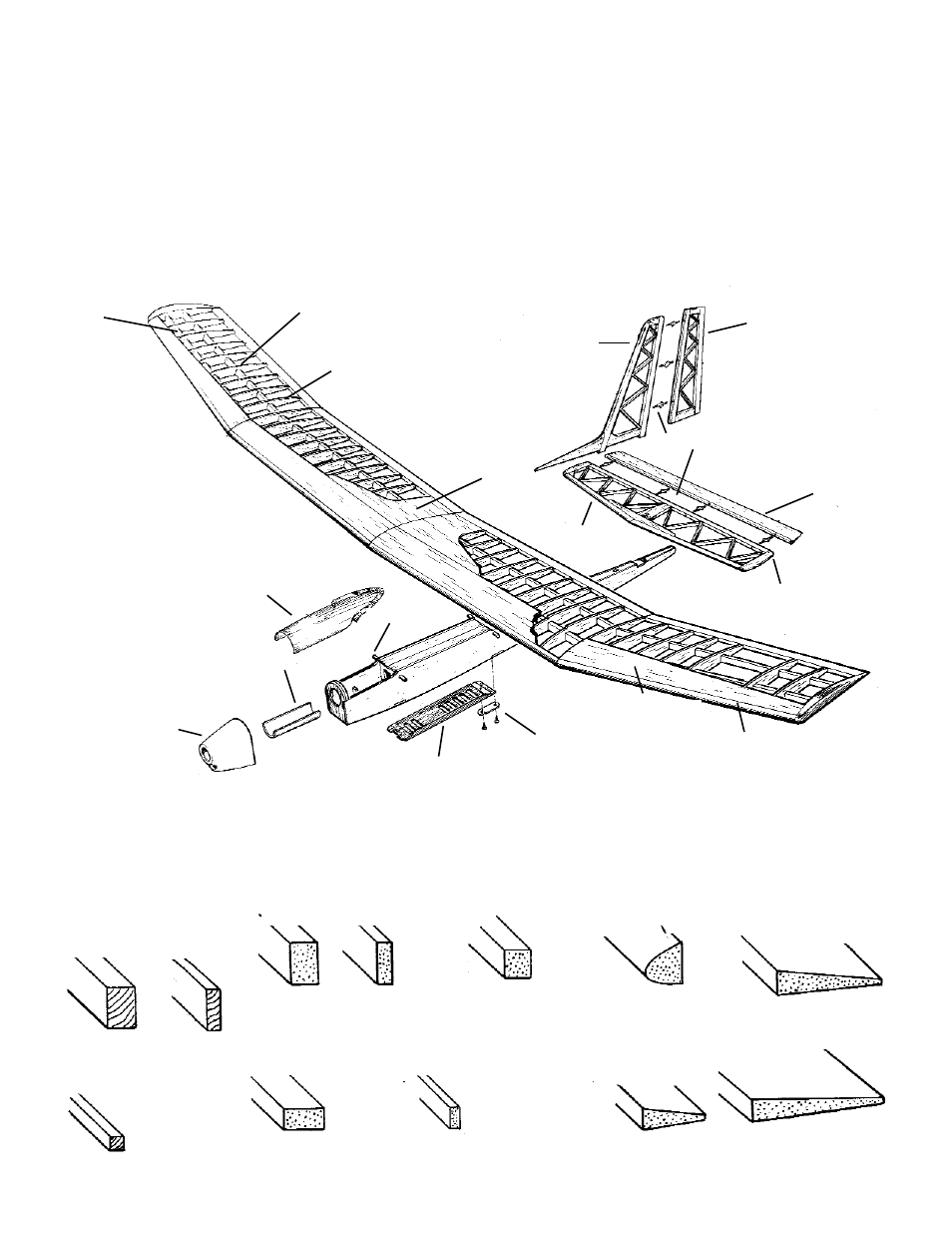

BASIC STRUCTURE
END VIEW OF STRIP WOOD PARTS
BASSWOOD BALSA
6
MAIN SPAR
REAR SPAR
INBOARD
PANEL
OUTBOARD
PANEL
CENTER
SHEETING
CANOPY
3/16” DOWEL
BATTERY
HATCH
NYLON
HOLD DOWN
MOTOR
MOUNT
FRONT SPAR
1/4 x 13/32”
REAR SPAR
1/8 x 3/8”
FRONT SPAR
1/4 x 3/8”
REAR SPAR
1/8 x 3/8”
1/4” SQUARE
17-7/8”
INBOARD L.E. = 20-3/4” LONG
OUTBOARD L.E. = 17-5/8” LONG
ELEVATOR L.E.
3/16 x 3/8”
ELEVATOR
TRUSS
5/64 x 3/16”
RUDDER T.E.
8-1/4” LONG
ELEVATOR.
20-3/4” LONG
INBOARD T.E. = 20-3/4” LONG
OUTBOARD T.E. = 17-1/2” LONG
HATCH RAIL
1/8” SQ.
STABILIZER
INBOARD WING SPAR
OUTBOARD WING SPAR WING LEADING
EDE (L.E.) WING TRAILING
EDGE (T.E.)
PUSHROD
TRAILING
EDGE
RUDDER
FIN
HINGES
ELEVATOR
COWL
L.E. SHEETING
LEADING
EDGE
RIB
