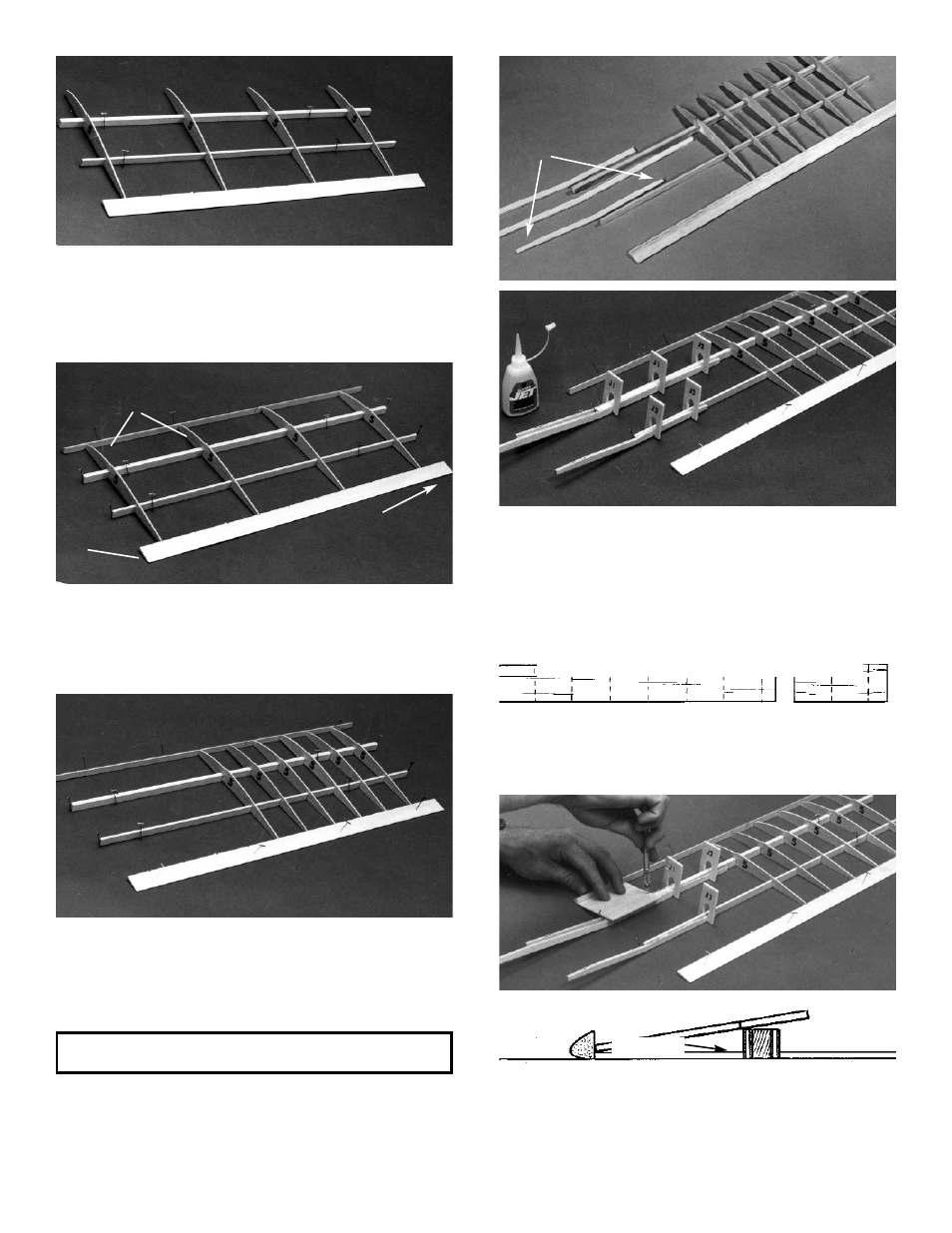

4. ‡ Position the wing leading edge (L.E.) in place

over the plan and pin.

‡

Secure the ends of both spars with pins, as

shown.

5. ‡ Remove the two #5 ribs nearest the wing cen-

ter.

‡

Glue all remaining #5 ribs, as shown on the

plan.

IMPORTANT! IF BUILDING THE LEFT WING, PRO-

CEED DIRECTLY TO STEP 10.

6. ‡ Noting that the rear spar joiner has a tapered

end, fit the front and rear spar joiners into posi-

tion as shown.

‡

Glue the joiners to the spars and, referring to

the plan, hold in place with the gauges. Allow

to dry.

7. ‡ Taking care to make sure that the grain of the

sheeting will run parrallel to the spars, L.E. and

T.E., cut three 3-1/4” pieces from a 1/16 x 3 x

24” balsa sheet.

8. ‡ Slide one piece of sheeting forward until it just

touches the L.E. Gently holding the sheet in

position, mark the spar location on both of the

rear corners of the sheet.

3. ‡ Align the notches in the wing trailing edge (T.E)

with those shown on the plan.

‡

Using no glue, position the four #5 ribs as

shown above. Hook each rib over the main

spar and then over the rear spar, as you go.

MARK MARK

13

NOTCHED END

MATCH WING GAUGE
POSITIONS TO PLAN

NO NOTCH

REAR SPAR
JOINER HAS
TAPERED ENDS.

DO NOT
GLUE THESE
RIBS

WOOD GRAIN MUST BE PARALLEL TO SPARS, L.E. AND T.E.
