MAINTENANCE
6-2
FLAME
DETECTOR
PROBE
LOWER
BURNER
SHELL
BURNER
HEAD
BURNER
PLATE
IGNITER
(124570)
FLAME DETECTOR
(124837)
STAGED
IGNITION
ORIFICE

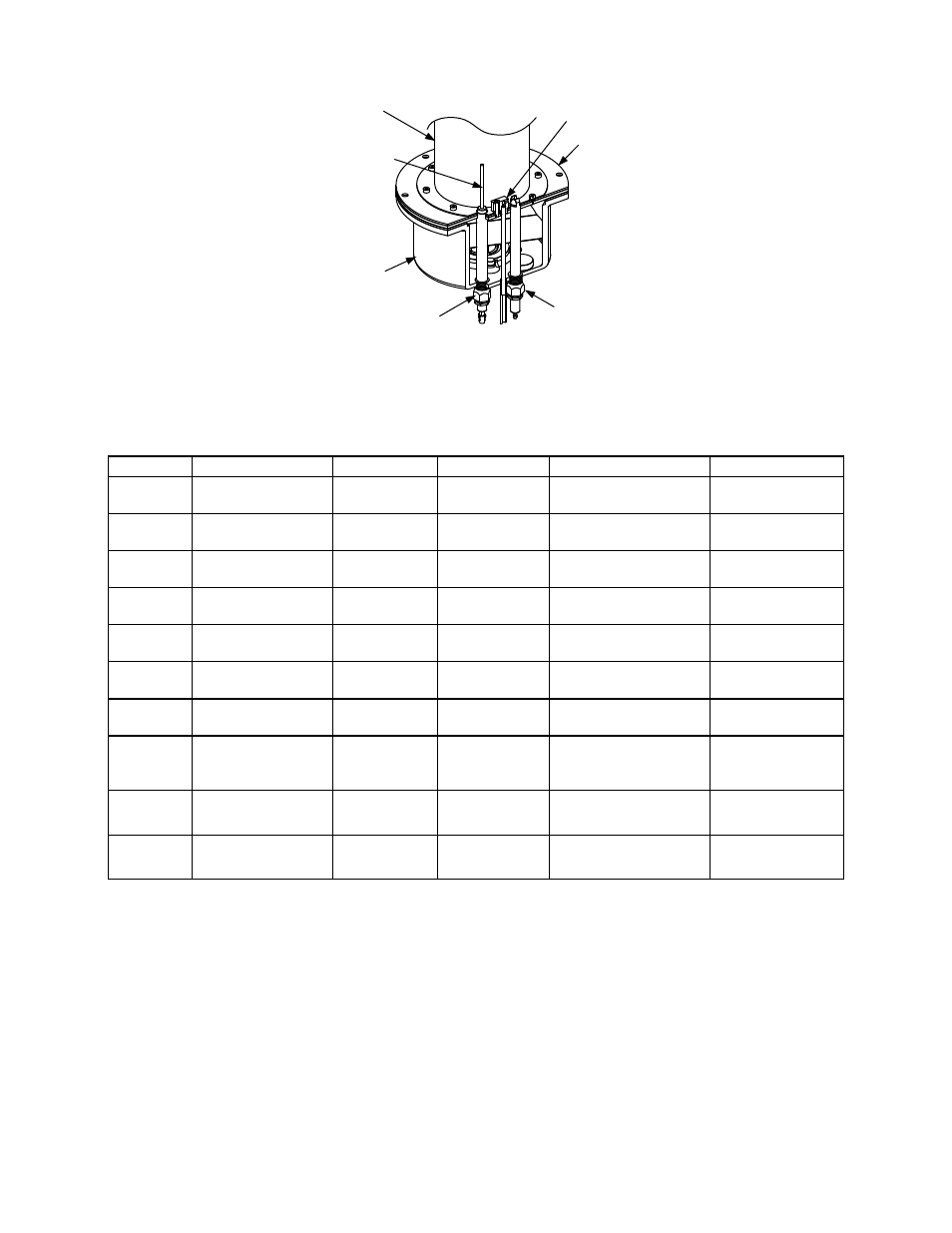

Figure 6.1
Spark Igniter and Flame Detector Location
Table 6-1. Maintenance Schedule
Section Item 6 Mos. 12 Mos. 24 Mos. Labor Time
6.2
Spark Igniter
(124570)
Inspect Replace 15 mins.
6.3
Flame Detector
(124837)
Inspect Replace 15 mins.
6.4
Combustion
Adjustments.
Check Check 1 hr.
6.5
Testing of Safety
Controls
Test 20 mins.
6.6
BTU Transmitter
Pump
Oil 15 mins.
6.7 BTU Transmitter
Inspect & clean if
necessary
50 mins.
6.8
*Manifold &
Tubes
Inspect & clean if
necessary
4 hrs.
6.9 Heat Exchanger ** Inspect
Inspect and
Clean (as
required)
Inspect and Clean
(as required)
1.5 to 3.5 hrs.
6.10
Condensate
Drain
Inspect
Inspect &
Clean
30 mins.
6.11
Low Water Cutoff
Probe (69126)
Inspect Inspect
Replace (Every 24
Mos.)
20 mins.
* Recommended only when unit will be run in an extreme condensing mode for prolonged periods of time.
** In areas where water quality is poor or not qualified, inspection and cleaning may be required to assure
trouble-free operation. Hard water deposits must be removed to prevent corrosion and leaking. Checking
at more frequent intervals may be required to prevent scale buildup. See page 6-13 for information about
removing scale deposits using AERCO HydroSkrub scale remover.
