CONTROL PANEL OPERATING PROCEDURES
3-1
SECTION 3 - CONTROL PANEL OPERATING PROCEDURES
3.1. INTRODUCTION
The information in this Section provides a guide
to the operation of the KC1000 Water Heater
using the Control Panel mounted on the front of
the unit. It is imperative that the initial startup of
this unit be performed by factory trained
personnel. Operation prior to initial startup by
factory trained personnel will void the equipment
warranty. In addition, the following WARNINGS
and CAUTIONS must be observed at all times.
CAUTION:
All initial installation procedures must be
satisfied before attempting to start the unit .
WARNING:
ELECTRICAL VOLTAGES IN THIS SYSTEM
INCLUDE 120 AND 24 VOLTS AC. IT MUST
NOT BE SERVICED OR ACCESSED BY
OTHER THAN FACTORY CERTIFIED
SERVICE TECHNICIANS.
WARNING:
DO NOT ATTEMPT TO DRY FIRE THE
HEATER. STARTING THE UNIT WITHOUT
A FULL WATER LEVEL CAN SERIOUSLY
DAMAGE THE UNIT AND MAY RESULT IN
PERSONNEL INJURY OR PROPERTY
DAMAGE. THIS SITUATION WILL VOID
ANY WARRANTY.
3.2. CONTROL PANEL DESCRIPTION
The KC1000 Control Panel shown in Figure 3-1
contains all controls, indicators and displays
necessary to operate, adjust and troubleshoot
the KC1000 Water Heater. These operating
controls, indicators and displays are listed and
described in Table 3-1. Additional information
on these items are provided in the individual
operating procedures provided in this Section.
3 1 2
7
4
6
10 8 9
5
11
12

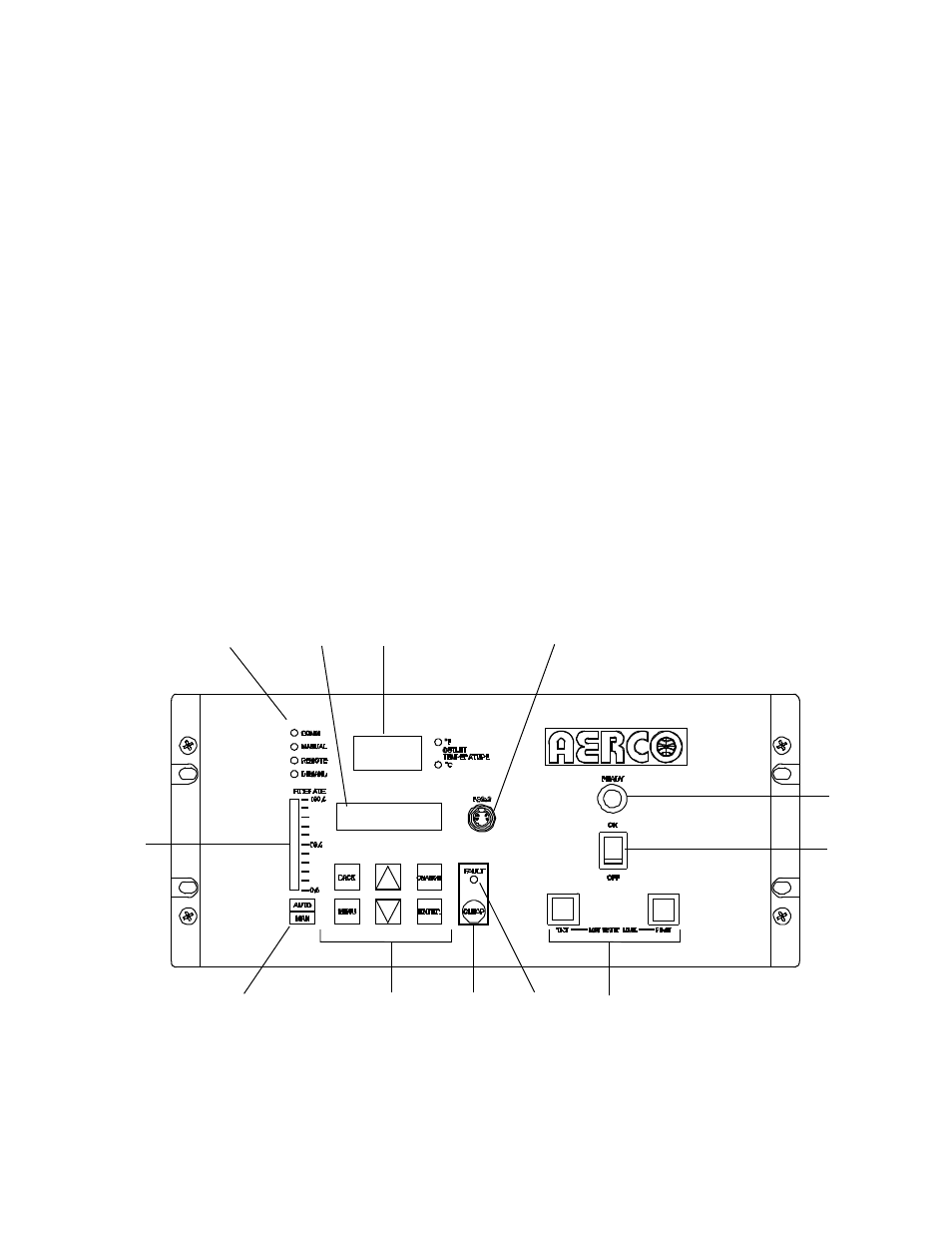

Figure 3-1. Control Panel Front View
