MODULEX EXT 321, 481, 641, 802, 962, 1123 BOILERS
Installation, Operation & Maintenance Manual

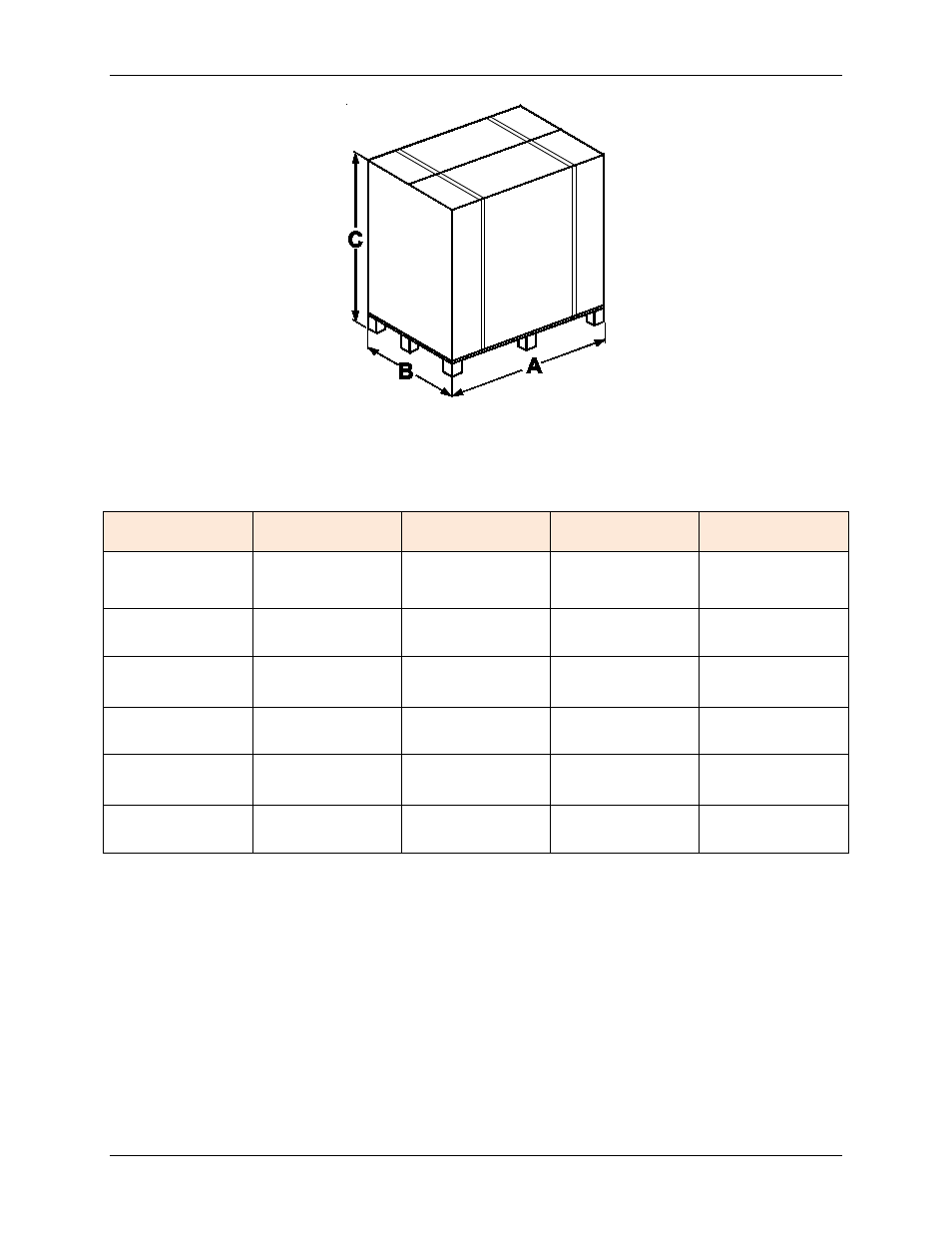

Figure 3-3: MODULEX EXT Shipping Package
Table 3-1: MODULEX EXT Shipping Package Dimensions
Model A B C Gross Weight
321
43.7‘‘
1110 mm
35.0‘‘
890 mm
49.2‘‘
1250 mm
448 lb.
203 kg
481
43.7‘‘
1110 mm
35.0‘‘
890 mm
49.2‘‘
1250 mm
520 lb.
236 kg
641
43.7‘‘
1110 mm
35.0‘‘
890 mm
49.2‘‘
1250 mm
650 lb.
295 kg
802
43.7‘‘
1110 mm
35.0‘‘
890 mm
49.2‘‘
1250 mm
716 lb.
325 kg
962
54.1‘‘
1375 mm
35.0‘‘
890 mm
49.2‘‘
1250 mm
851 lb.
386 kg
1123
54.1‘‘
1375 mm
35.0‘‘
890 mm
49.2‘‘
1250 mm
924 lb.
419 kg
3.4 Transporting and Securing the Boiler Safely
The boiler is susceptible to serious damage when not secured properly.
•
Follow the transportation instructions on the packaging.
•
Only transport the boiler using appropriate transportation equipment, such as a hand-truck
with a fastening belt or special equipment for transporting heavy equipment.
•
When moving the boiler, it must be secured on the transportation equipment to prevent it
from falling off.
•
Protect all parts against impacts, during transportation.
