MODULEX EXT 321, 481, 641, 802, 962, 1123 BOILERS
Installation, Operation & Maintenance Manual
2.3 Dimensional Drawings

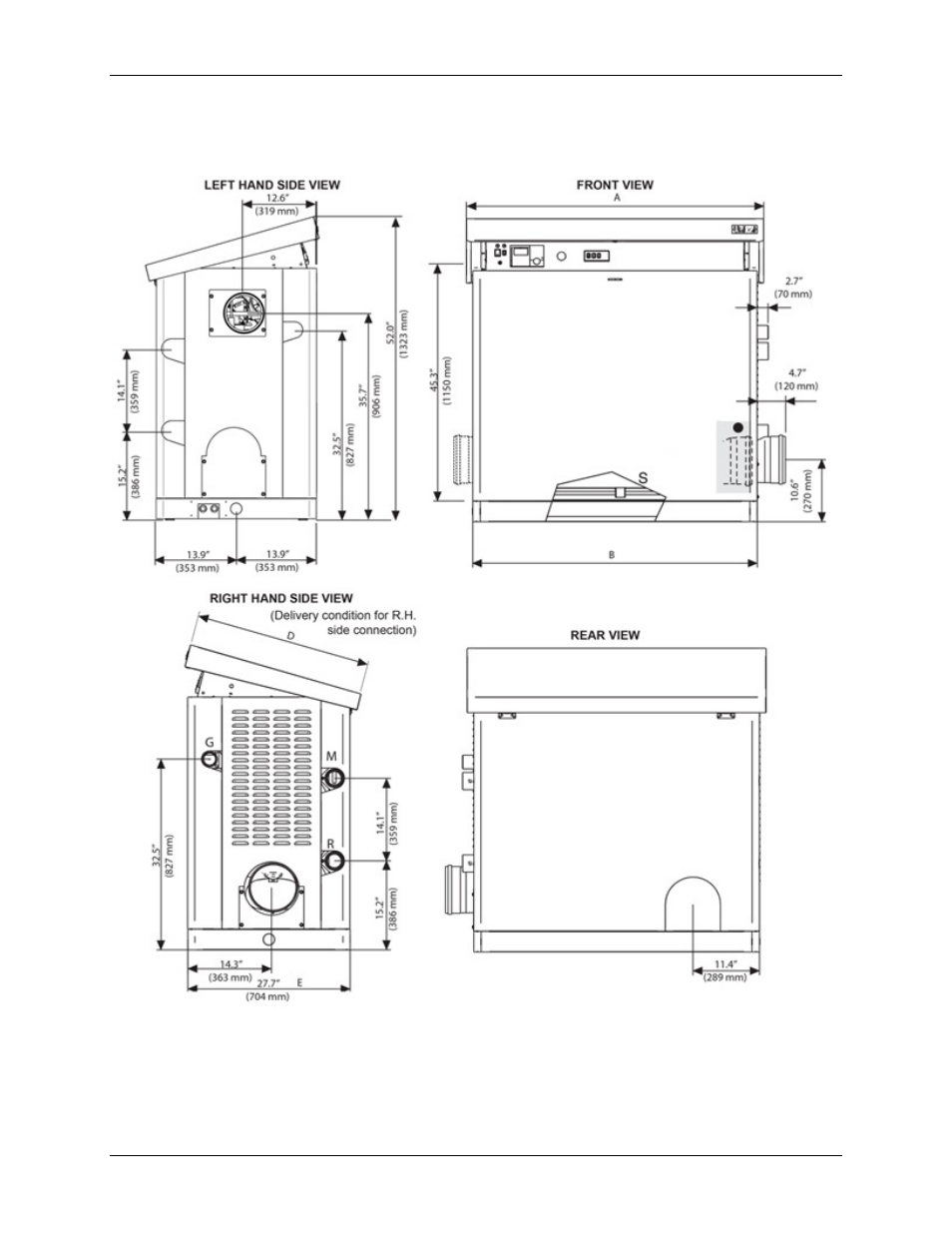

Figure 2-1: MODULEX EXT Dimensional Drawings (Side Views)
On Modulex EXT models 321,
642 and 962 the flue terminal
ends inside the casing
