■ KV-E4R/E4T/E8R/E8T(P)/E16R/E16T(P) (Expansion output unit)
■ KV-E4XR/E4XT(P) (Expansion I/O unit)
■ Expansion unit spacer*

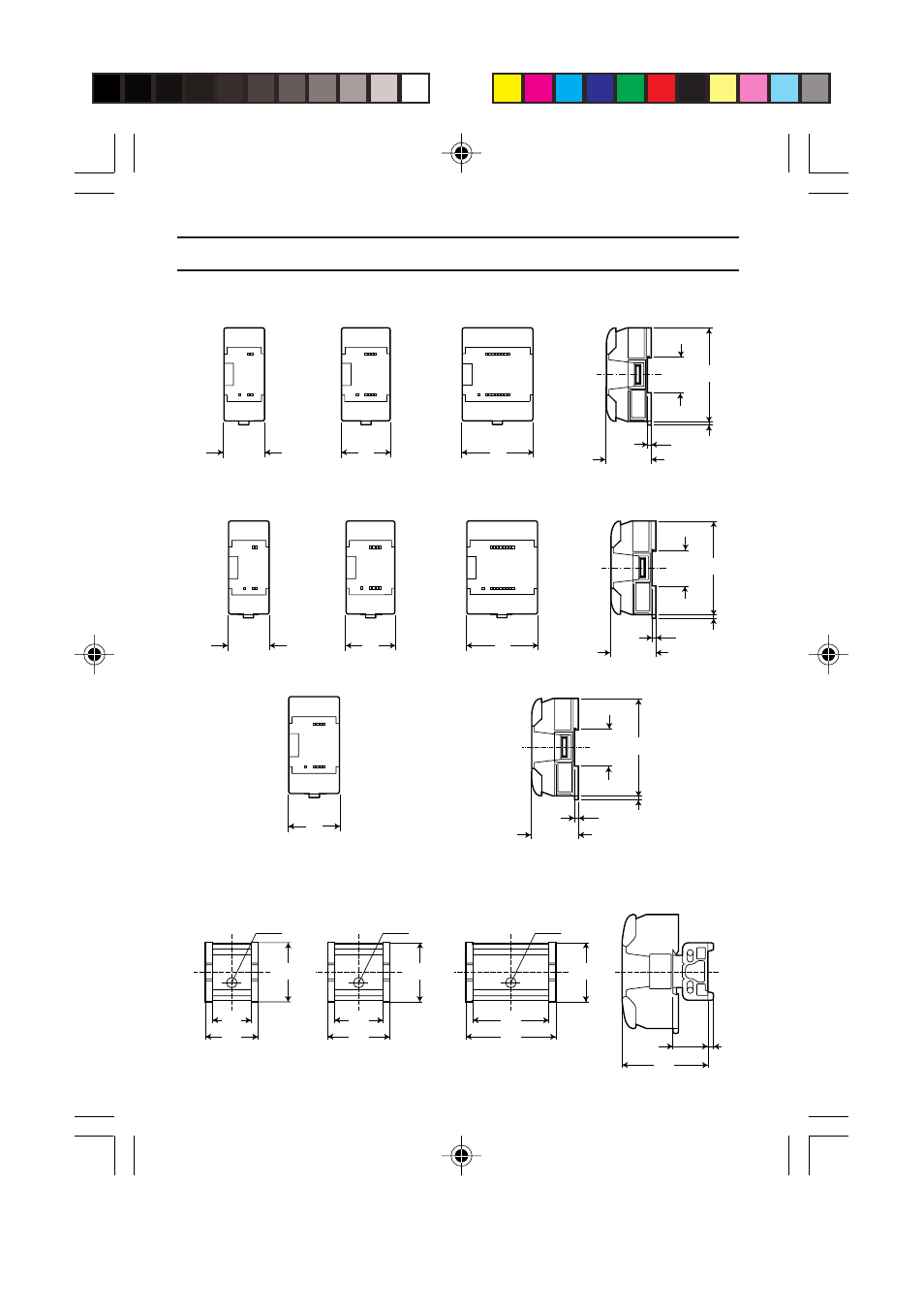

DIMENSIONS
■ KV-E4X/E8X/E16X (Expansion inut unit)
38 45 65
43.5
4 4
35.4 90
Side view Front view (KV-E16X) Front view (KV-E8X) Front view (KV-E4X)
Side view Front view (KV-E16x) Front view (KV-E8 x) Front view (KV-E4 x)
45
43.5
4 4
35.4 90
Front view Side view
42.8
38
28
ш4.0
42.8
45
35
ш4.0
42.8
65
66
25.3 4
55
ш4.0
OP-35342
Spacer for 4-point
expansion unit OP-35343
Spacer for 8-point
expansion unit OP-35344
Spacer for 16-point
expansion unit
Side view
38 45 65
43.5
4 4
35.4 90
* See page 3.
