21
Be sure to turn off the power before connecting or disconnecting
expansion cables. If they are connected or disconnected while the
power is on, the units may be damaged or fail.
Note: Keep noise sources such as power cables and electromagnetic switches away
from expansion cables (300 mm) as much as possible.

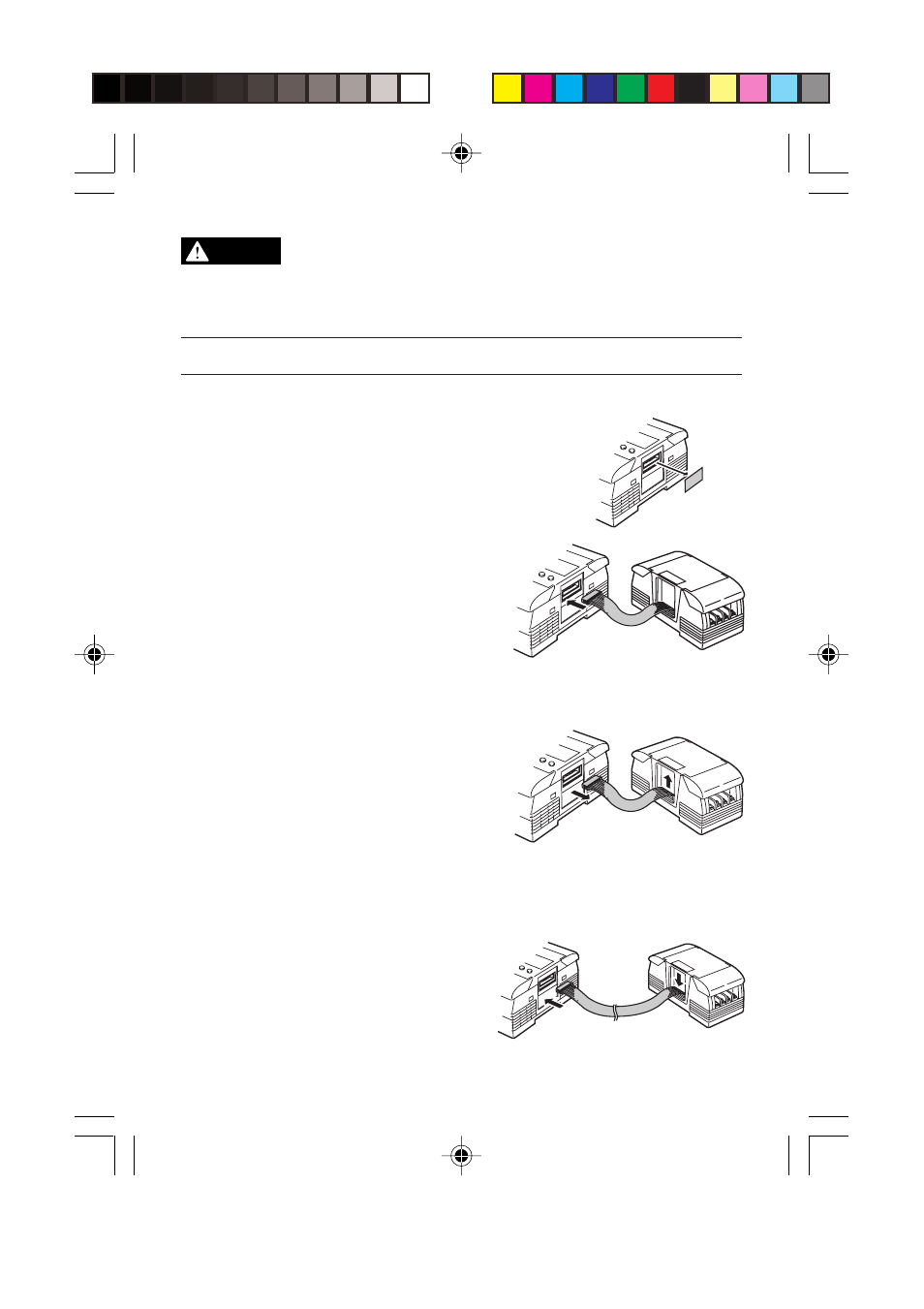

Connection methods
1. Peel off the tape stuck to the right side of the basic
unit.
2. Connect an expansion cable to the connector.
■ When extending a cable
Replace a standard expansion cable (60 mm) with an optional expansion
cable (300 mm) (OP-35361).
1. Disconnect the standard expansion cable from the
expansion unit connector.
2. Connect an optional expansion cable (300 mm) to
the expansion unit connector.
3. Connect the optional expansion cable (300 mm) to
the basic unit connector.
CAUTION
