PROBLEM SOLVING
Replacing the Developer Unit and Toner Cartridge
Replacing the developer unit
1
Open the receiving cover.
Remove the old developer unit.
Always keep the developer unit flat to avoid toner
being spilled.
3
4
5
Install the new developer unit (see page 9).
Oose the receiving cover.
Reset ttie developer counter (see page 117).
5
Gently remove the toner seal (see page 10).
6
Reinstall the developer unit.
7
Close the receiving cover.
Note: Clean the inside of the machine b^ore or after replacing a new toner cartridge and developer unit.
Replacing the toner cartridge
1
Open the receiving cover.
Remove the developer uiut.
Always keep the developer unit flat to avoid toner
being spilled.

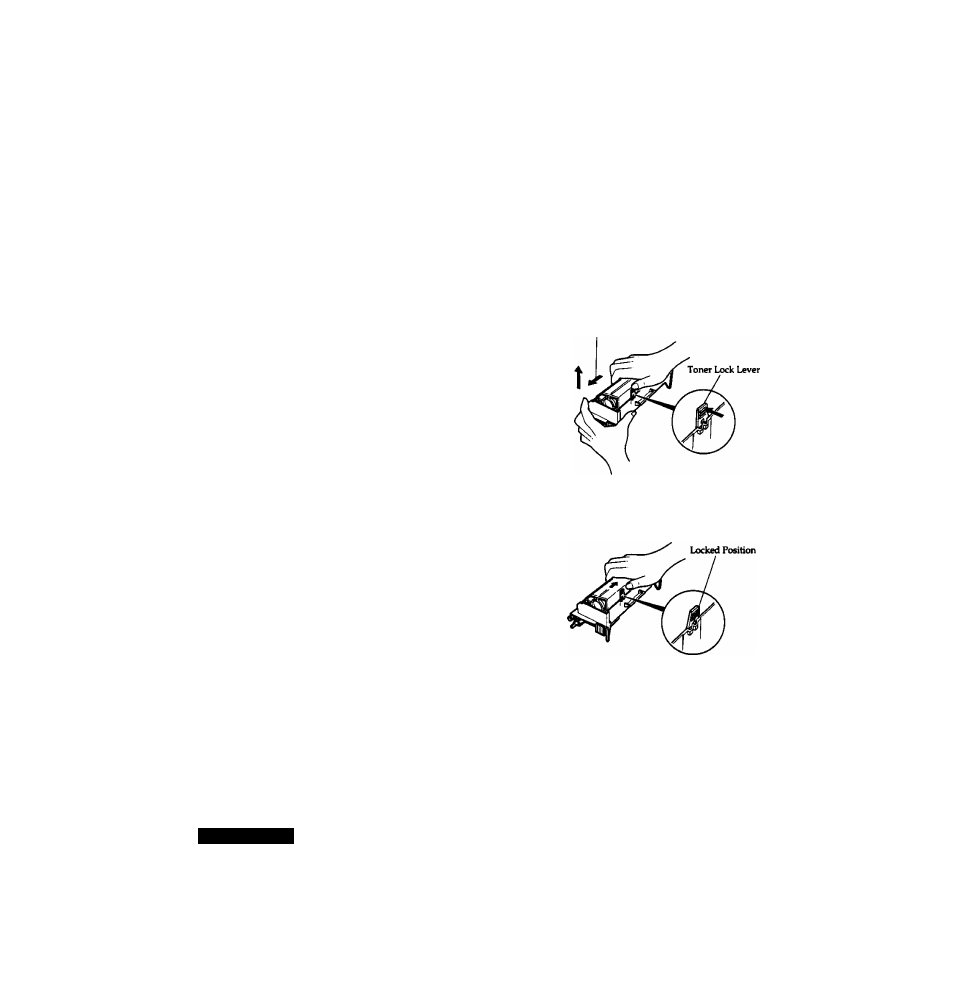

Push the toner lock lever and move it in the released
direction as shown below until the lock is released.
Lift the toner cartridge.
Release Diiection
4
Mount the new toner cartridge on the developer unit.
Move the toner cartridge to the locked position.
IMPORTANT
Do not operate the machine without the developer unit otherwise received document will be blank.
114
