9145 Network Interface Device 3-15

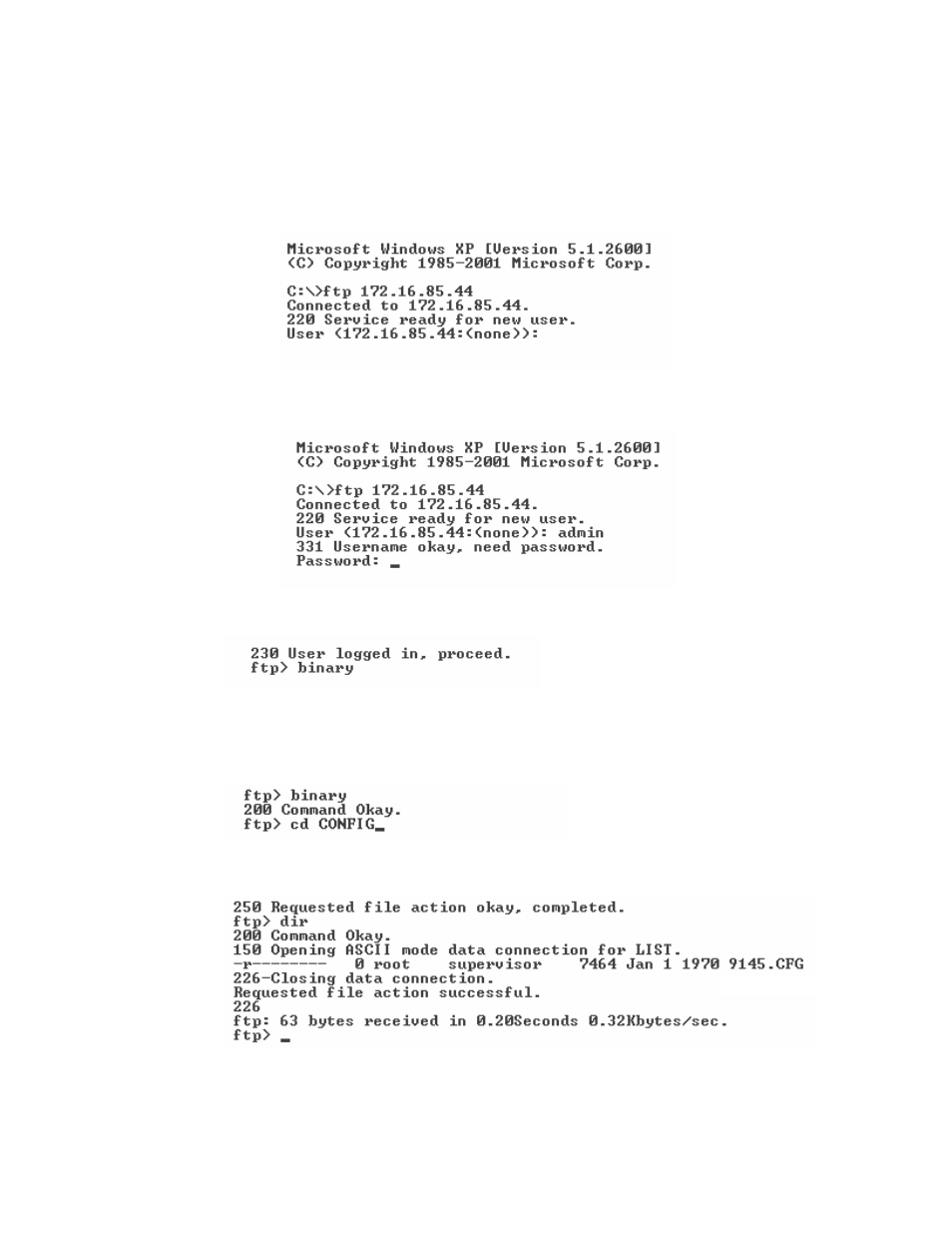

To upload a configuration file from the 9145 follow these steps:
1. Open a command prompt on your PC and type [ftp xxx.xxx.xxx.xxx] where the
x’s are is the IP address corresponding to the 9145’s management IP address and
press .
2. Type the user name and password and press
3. Set ftp to “binary” mode by typing [binary] on the prompt and press
4. Change directory to the CONFIG directory by typing [cd CONFIG] and press
Note: that the word “CONFIG” has to be capitalized.
5. Type [dir] on the prompt to view the contents of the directory and press
