SR 3
SMART REMOTE OPERATORS MANUAL
Quick Start
Writing a Quick Start for the SR 3 is almost like writing a Quick Start for a
Windows PC – it depends on what you want to do.

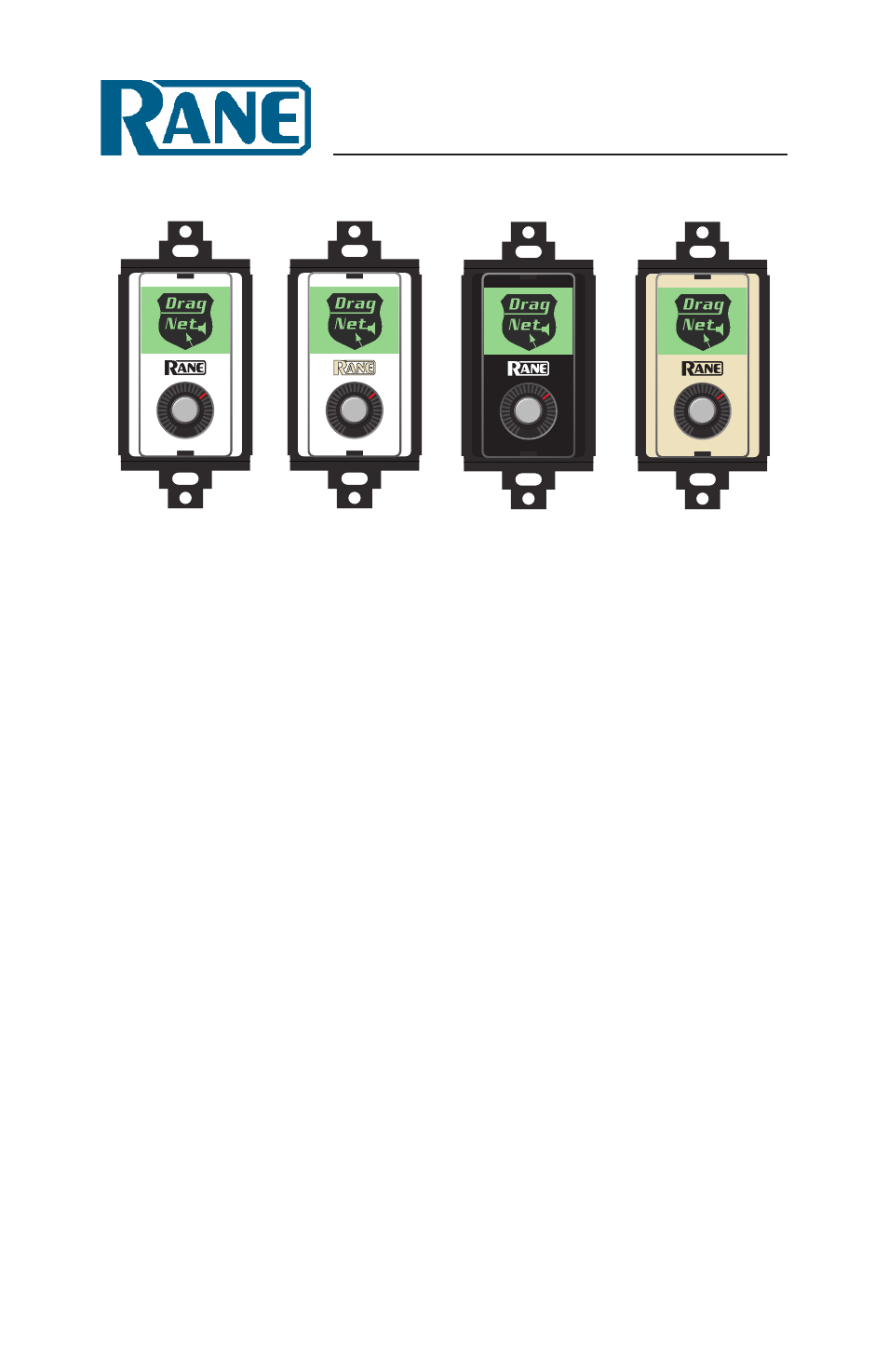

Architectural look. Since Decora plates come in different colors, each SR 3 is
shipped with 4 different color inserts for installation behind the lens (we ship
them without an insert installed). Colors included are white (w/ black logo),
white (w/ almond logo), almond (w/ black logo) and black ( w/ white logo)
which accommodate most applications. If the architect or interior decorator
requires a custom color, a template is available on the SR 3 page at www.rane.
com/sr3.html allowing a custom insert to be printed and cut to the proper size.
(No, you cannot return the unused inserts for credit. Please recycle them,
keep them as backups or build a house of cards with them).
Address. Set the Device Address rotary switch on the side of the SR 3;
addresses from 0 through 7 are valid. Each device connected to the same RS-
485 bus must have a unique address.
