*Field-supplied.

NOTES:
1. Factory wiring is in accordance with NEC; field modifications or addi-

tions must be in compliance with all applicable codes.

2. Wiring for field power supply must be rated 75 C minimum. Use cop-

per, copper-clad aluminum, or aluminum conductors. Maximum
incoming wire size for each terminal block is 500 kcmil.

3. Terminal blocks TB3 and TB4 are for external field control connec-

tions. Control connections are to be Class 1 wiring.

4. Field-supplied components (IFC, LLS-A, and LLS-B) must have a maxi-

mum sealed coil rating of 30 va each (.25 amp at 120 vac, .13 amp at
230 vac). AHMS IFC-AUX must have a minimum pilot duty rating of
200 va (1.7 amps at 120 vac, 0.9 amps at 230 vac) each.

5. Replacement of factory wires must be with type 105 C wire or its

equivalent.

6. Field-supplied liquid line solenoid valves installed at the evaporator are

required on all units.

7. Units have 175 va of power available for field-installed accessories.

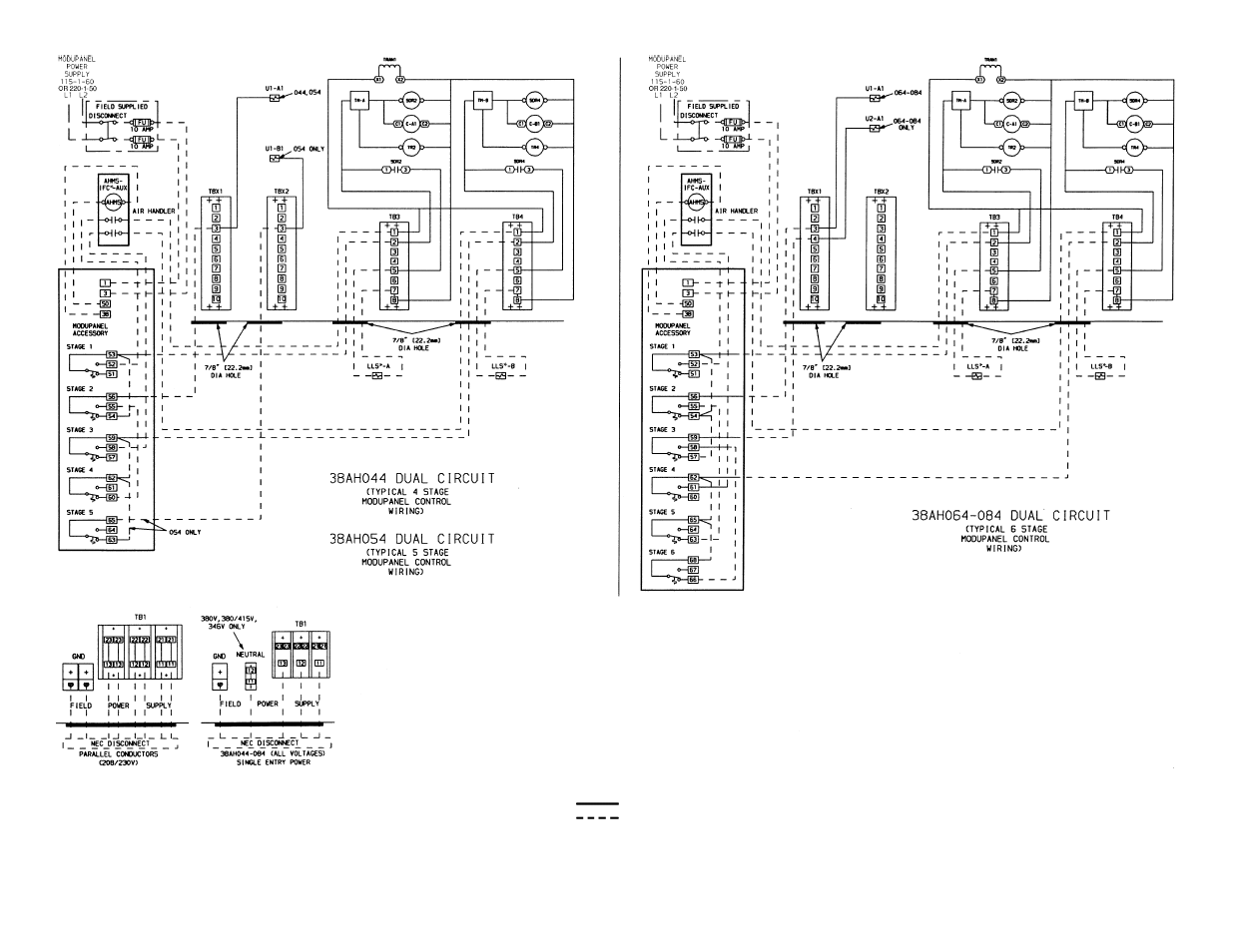

Fig. 24 — Field Wiring, Single ModuPanel™ Control, 38AH044-084 Dual-Circuit Units

LEGEND

AHMS — Air Handler Motor

Starter

AUX

— Auxiliary

— Compressor Contactor

— Fuse

GND

— Equipment Ground

IFC

— Indoor Fan Control

kcmil

— Thousand Circular Mils

LLS

— Liquid Line Solenoid

NEC

— National Electrical Code

(U.S.A. Standard)

SDR

— Solenoid Drop Relay

— Terminal Block

TBX

— Terminal Block for Variable

Air Volume Units

— Timer Motor

— Timer Relay

TRAN — Transformer
U

— Unloader Solenoid

Factory Wiring
Field Wiring
