*Field-Supplied.

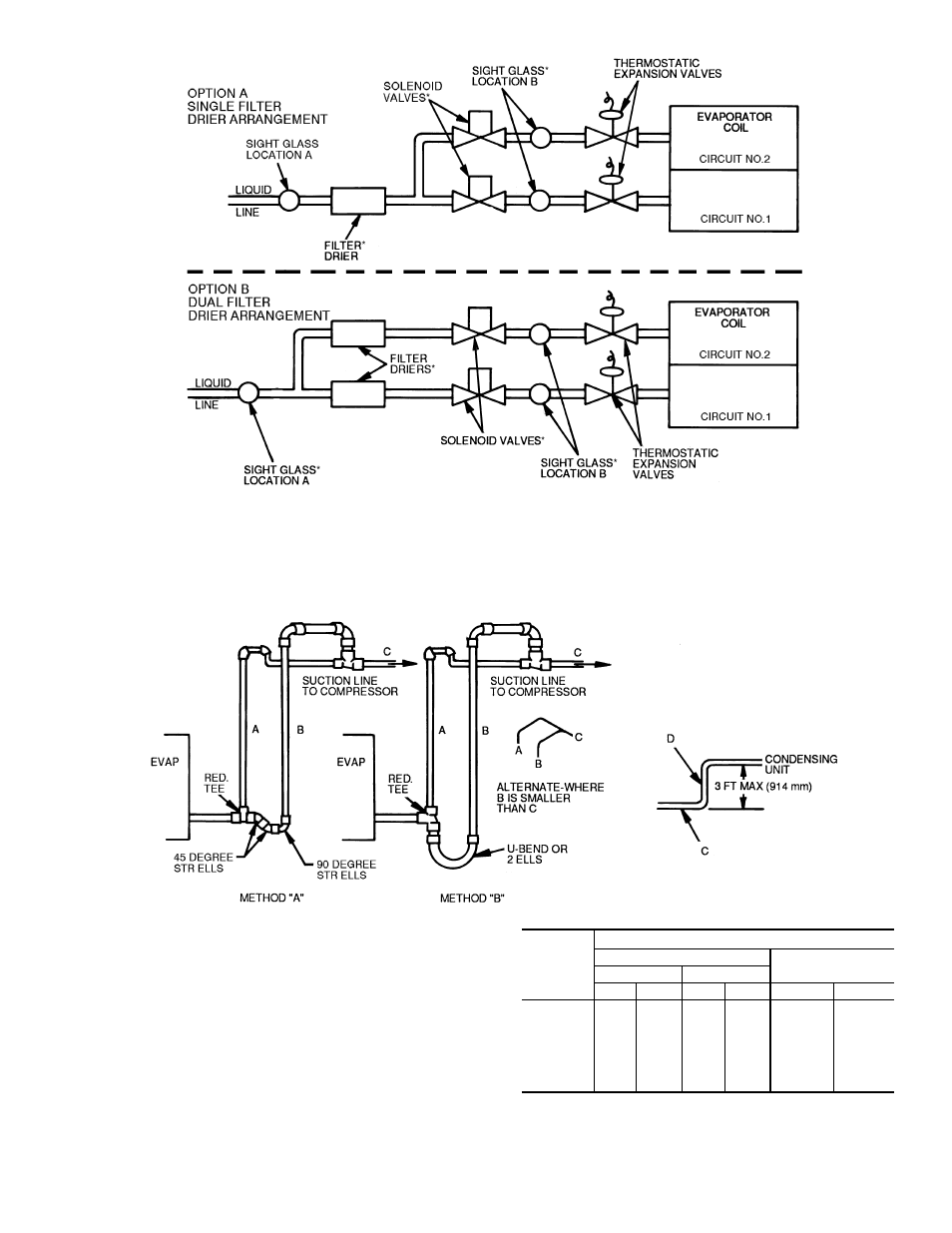

Fig. 12 — Required Location of Solenoid Valves and Recommended Filter Drier and
Sight Glass Locations for 38AH044-084 Optional Single-Circuit Units
LEGEND
A — Pipe A, Suction Riser, without Trap
B — Pipe B, Suction Riser with Trap
C — Suction Line to Condensing Unit
D — Pipe D, Suction Riser Short Lift
RED. — Reducer
STR
— Street
NOTES:
1. Short riser, pipe D, is used when routing suction line to condens-
ing unit connection. See table at right.
2. See Tables 6A-9B for values of A, B, and C.
UNIT
38AH
PIPE D DIAMETER
Dual Circuit*
Single Circuit*
A B
in. mm in. mm in. mm
044 1 5 ⁄
8
41 1 5 ⁄
8
41 2 1 ⁄
8
54
054 1 5 ⁄ 8 41 1 5 ⁄ 8 41 2 1 ⁄ 8 54
064 1 5 ⁄
8
41 2 1 ⁄
8
54 2 1 ⁄
8
54
074 2 1 ⁄
8
54 2 1 ⁄
8
54 2 1 ⁄
8
54
084 2 1 ⁄ 8 54 2 1 ⁄ 8 54 2 5 ⁄ 8 † 67†
094, 104 2 1 ⁄
8
54 2 1 ⁄
8
54 — —
124, 134 2 5 ⁄ 8 67 2 5 ⁄ 8 67 — —
*Maximum length of riser is 3 ft (914 mm).
†Double suction riser required if accessory unloader is field
installed.
Fig. 13 — Double Suction Riser Construction
