Vital Signs Monitor 21
2. Holding a new roll of paper as shown, feed approximately 1 inch of paper into the slot at the
bottom of the paper holder. Release the paper roll so that it sits in the bottom of the paper
holder.
3. Press the paper "FEED" button to advance the paper 3 to 4 inches above the top paper slot.
4. Thread the paper through the paper slot on the printer cover. Slide the cover on to the Monitor
and press down until it clicks into place as shown. The excess paper may be torn off if desired.
NOTE: The operator will notice a red stripe along the edge of the printer paper when the paper
roll is almost at the end. Replace the printer paper with a new roll when the red stripe
is observed.

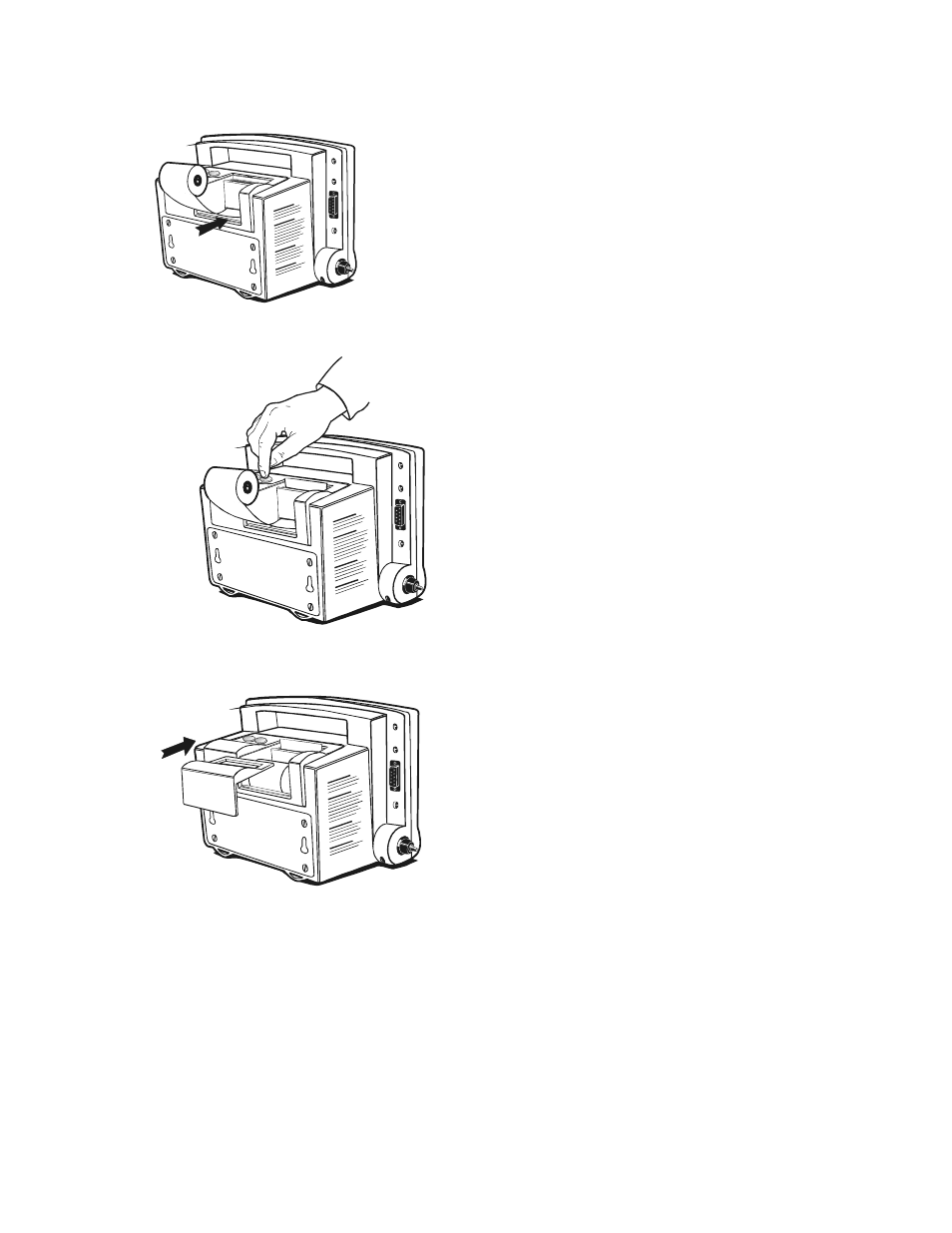

Feeding the paper into the slot.
Advancing the paper.
Replacing the printer cover.
