Temperature Option
J. Oral Temperature Probe
The blue oral probe is used for both oral and axillary temperature determinations.
A red rectal probe is available separately.
K. Temperature Probe Covers
One box of 25 single use, disposable probe covers for both oral and rectal temperature determi-
nations.
NOTE: Report any signs of shipping damage to the carrier. If an item is missing or damaged,
contact the Welch Allyn Service Center near you.
Controls, Indicators and Connections
NOTE: In this section, all drawing and text are representative of the Welch Allyn Vital Signs
Monitor with all available options (i.e. Blood Pressure plus Pulse Oximetry (SpO
2
),
Temperature and Printer). Your Monitor may not include all functions, depending on
the options purchased.

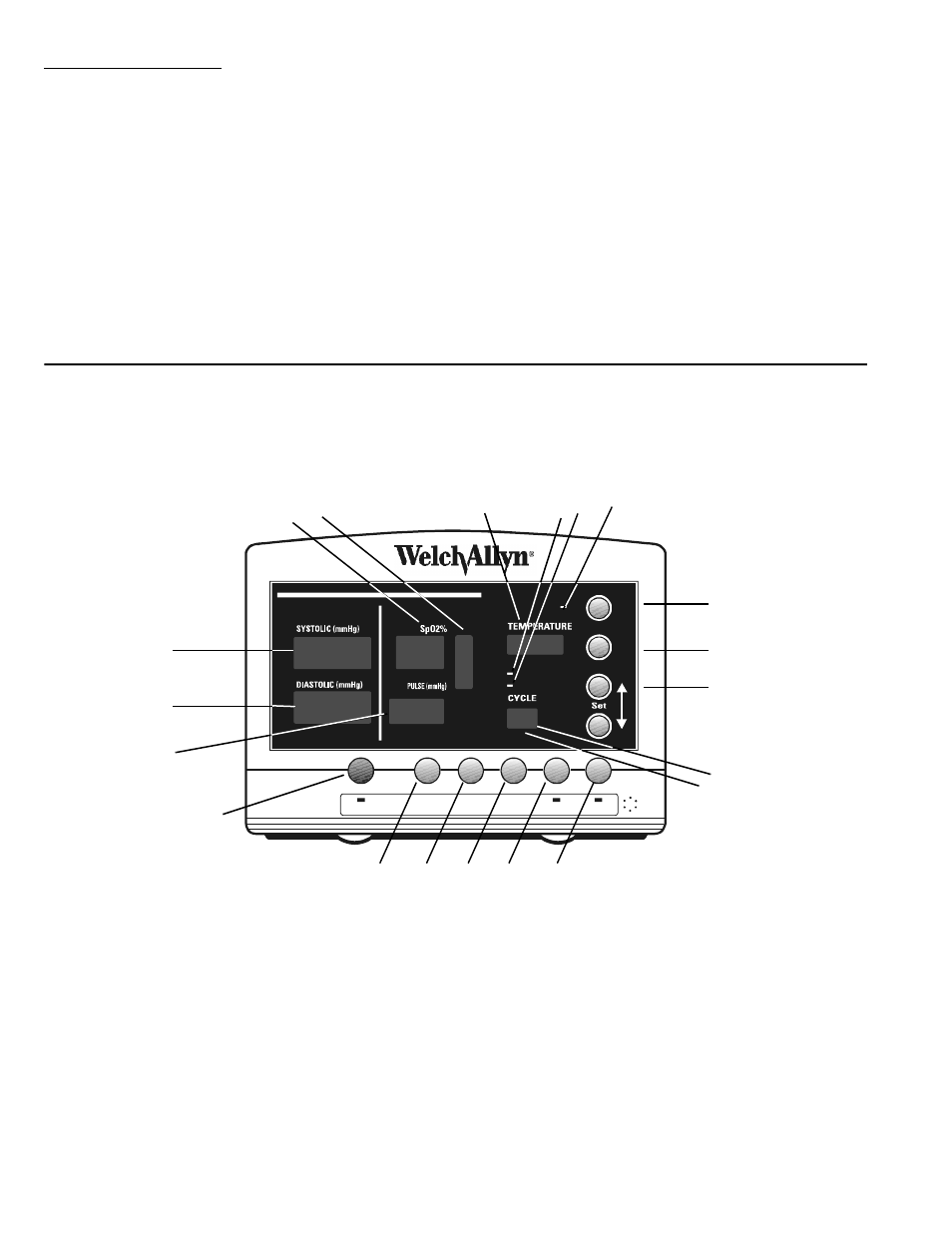

Front Panel Functions
A. POWER Button & Indicator Light
This on/off button controls the power to the Monitor. The indicator light will glow when the unit
is on. Battery power will be used unless the Monitor is powered through the AC power trans-
former.
B. START Button
Pressing this button initiates an on-demand blood pressure cycle.
Power Start Cancel Review Auto Silence
Low Battery
Charging
Pulse
Tone Volume
Select
Alarm
A
B C D E F
T
Q
H
G
J
I
S R P
N
M
K
L
O
