Directions for Use Chapter 4 Patient Sessions 23
Review Draft Company Confidential Aug 24, 2004
Using the Video Colposcope Buttons
The Welch Allyn Video Colposcope has three buttons located just above the handle that
allows it to send commands to the Image Capture System. The buttons are identified on
the colposcope as F, C, and V.

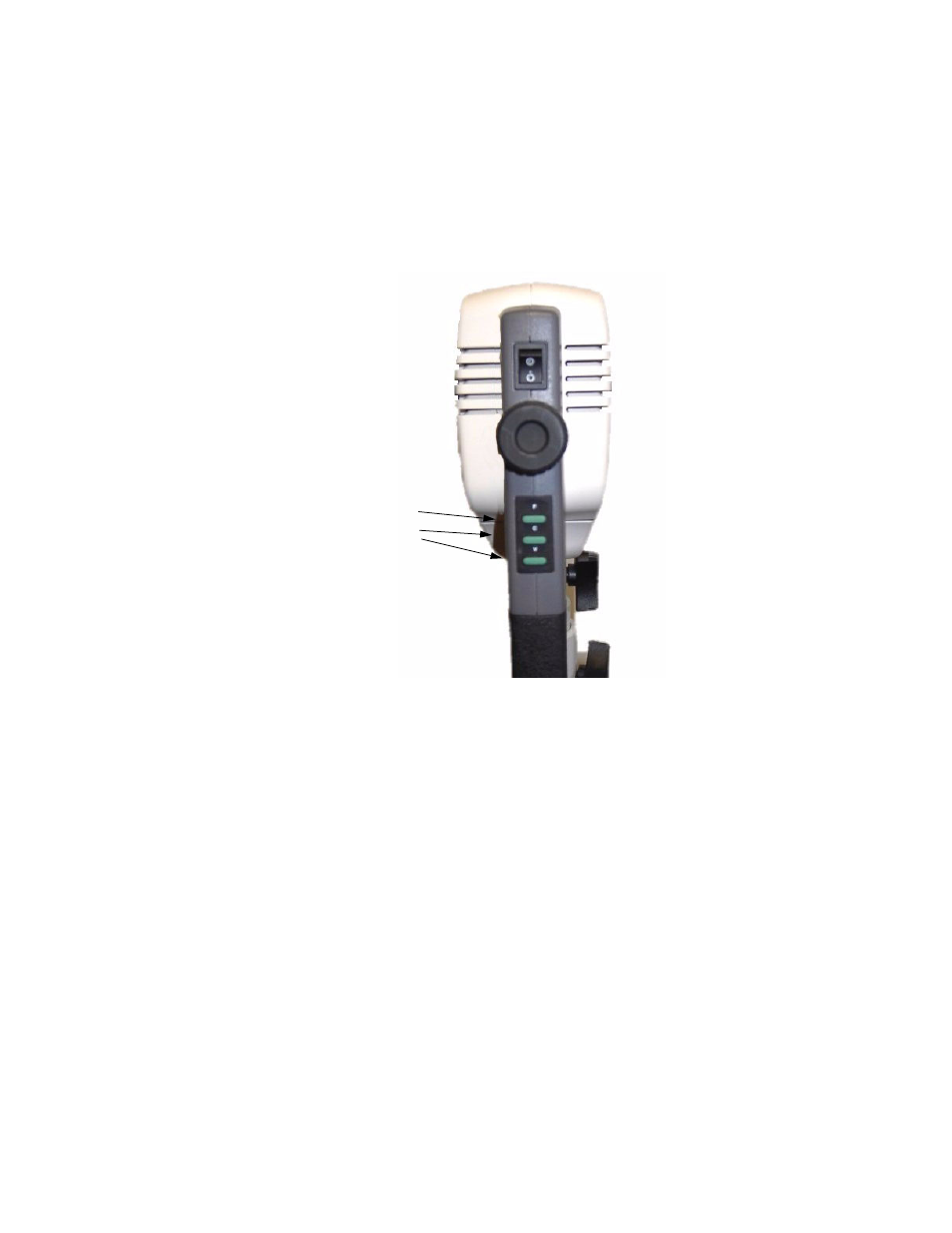

Figure 18. Video Colposcope buttons
“F” Button (Freeze)
Press F to freeze the current frame of live video. Each press of the button will freeze a
new (current) frame of live video. The Video Colposcope does not save images with the F
button.
“C” Button (Capture)
Press C to capture the currently frozen frame or the current frame of live video and to
save it to the patient folder. If an image is currently “frozen”, then the frozen frame is
captured and the system will continue to display the frozen frame. If the Image Capture
System is currently displaying live video, then the current frame of live video is captured
and the system will continue to display live video.
“V” Button (Freeze / Live Toggle)
Press V to toggle between a frozen image and live video. If an image is frozen and the
button is pressed, the application returns to live video. If the Image Capture System is
currently displaying live video and the button is pressed, the application freezes the
current frame of video (displaying a single video frame at the time the button is pressed).
The Video Colposcope does not save images with the V button.
(F)
(C)
(V)
