Welch Allyn Image Capture System - User Manual User Manual
Page 17
Directions for Use
Chapter 2 Equipment Setup
9
Review Draft
Company Confidential
Aug 24, 2004

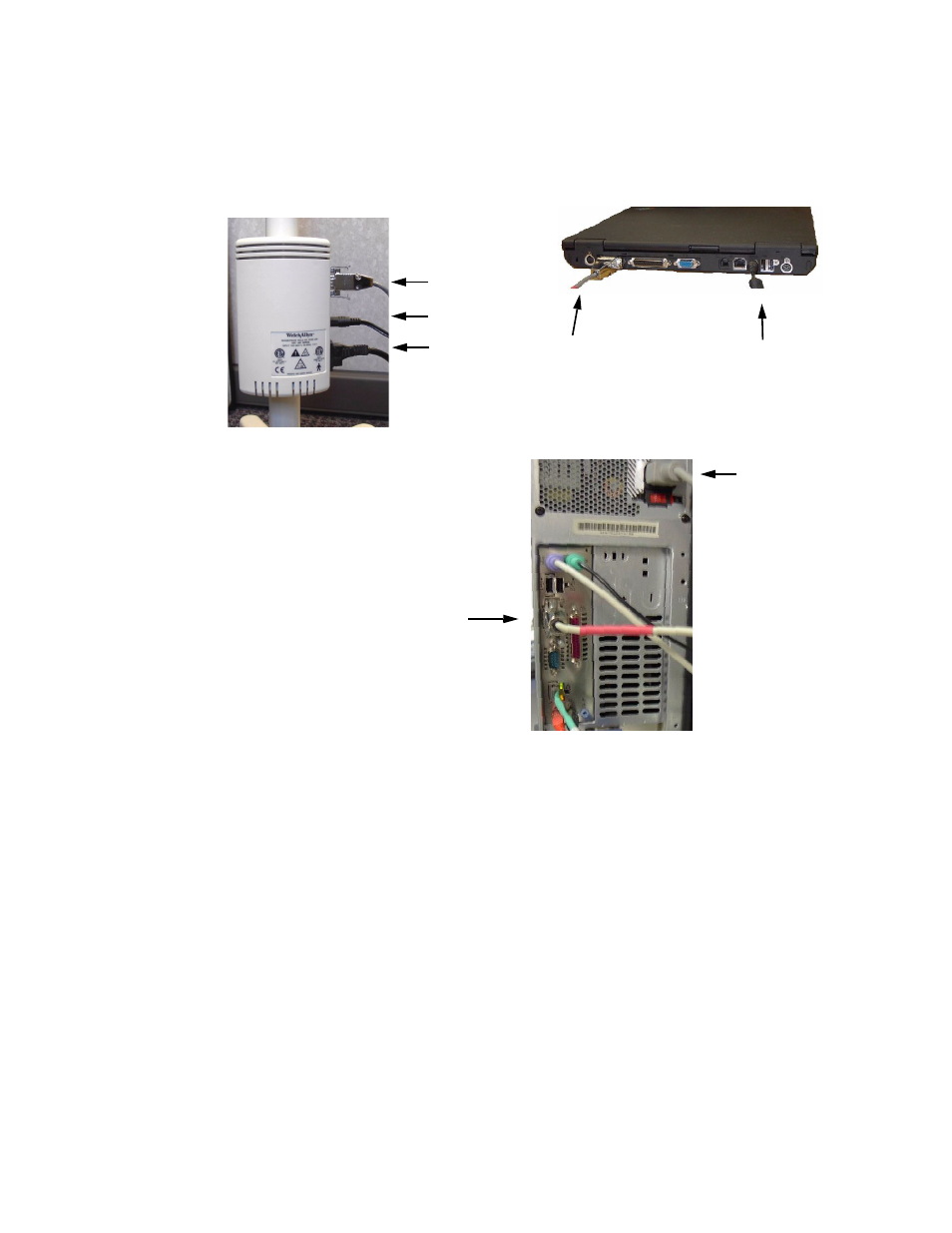

Figure 6. RS-232 Cable connections
6.
Plug the DV Converter, the Video Colposcope, and the Video Colposcope Monitor
power cords into a hospital-grade outlet.
7.
Turn on the Video Colposcope and then press the button on the back of the converter
to power on the DV Converter. Finally, boot up the computer.
8.
Verify the DV Converter light displays analog. If it does not:
a.
Turn off and unplug the DV Converter.
b.
Set dip switches 2 and 6 to the on position and all others to off.
c.
Reconnect the converter and power on.
9.
If a Digital Video Device dialog box pops up, select Take no action, check Always
perform the selected action, and select OK. If you make these selections, the dialog
box will not appear again.
RS-232 Cable
S-Video Cable
Power Cable
RS-232 Cable
Power Cable
Video Colposcope
Notebook Computer
Desktop Computer
RS-232 Cable
Power Cable
