6 Chapter 2 Equipment Setup Welch Allyn Image Capture System
Review Draft Company Confidential Aug 24, 2004

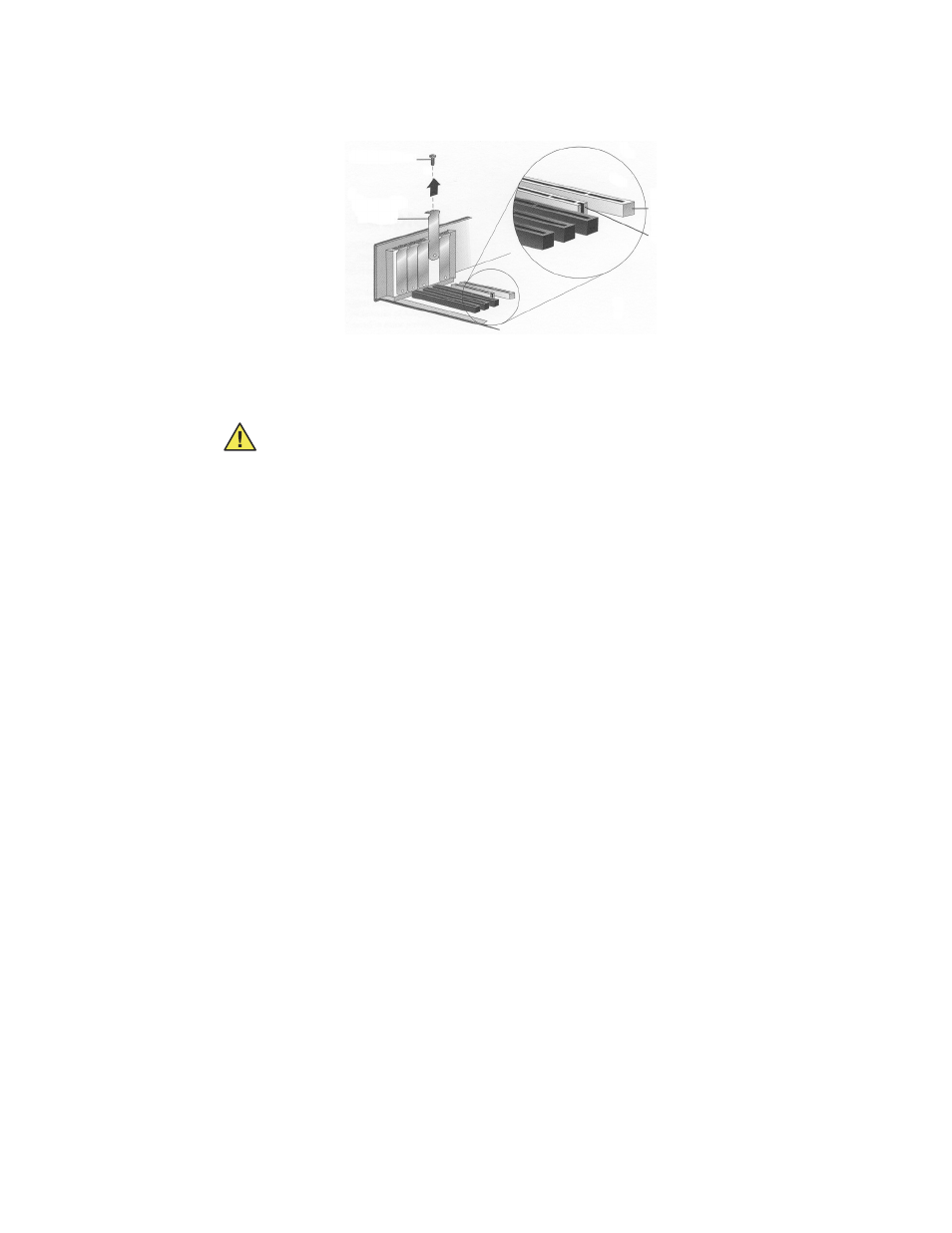

Figure 2. Desktop expansion slot
3. Touch a grounded metal object (such as the exposed metal parts on the back of the
computer) to discharge any static electricity build-up before handling the card.
4. Remove the card from the antistatic packaging.
5. Insert the card into the PCI expansion slot. Depending on the tightness of the PCI
slot, use gentle but firm force to insert the card. When installed properly, the card
should appear level with the expansion slot.
6. Secure the card bracket with the slot cover screw you removed in Step 3.
7. Close the computer cabinet, reattach the power cord, and power on the computer.
Installing the Desktop Driver
1. During startup, Windows automatically detects the new host adapter and loads an
embedded driver.
2. Restart your computer if you are prompted to do so.
3. Go to the Windows Device Manager and check to see if the host adapter is installed
correctly under the IEEE-1394 Bus Host Controller section. To do this:
a. Right click the My Computer icon on your desktop.
b. Select Manage > Device Manager. If the installation is successful, you will see a
IEEE 1394 Bus Host Controller.
Connecting the Welch Allyn Image Capture System
1. Unplug the Video Colposcope, the Video Colposcope Monitor, and the PC from the
electrical outlet before making any cable connections.
2. Set the DV converter box number 2 and number 6 dip switches located on the bottom
on the converter to on and all other dip switches to off.
Caution It is critical to ground yourself and to use the edges or metal bracket to
hold the host adapter. Do not touch the gold connector or any components on
the card. Do not shuffle your feet, this could create static electricity and harm the
PC and/or card.
64-bit PCI slot
32-bit PCI slot
Slot cover screw
Expansion
slot cover
