Chapter 4 Performing Spirometry Tests
41
6.
Press Effort Type as needed to select the type of effort you want the patient to
perform. See
Figure 28
.
•
FVC
•
FVC Post*
•
SVC
•
SVC Post*
*FVC Post and SVC Post are available only if you have already accepted at least one
pre-effort of the same type.)
7.
(FVC testing only) Press Curve as needed to select the curve type that you want to
view while testing. See
Figure 28
.
•
Flow/Volume
•
Volume/Time
•
Tidal Volume
•
Incentive

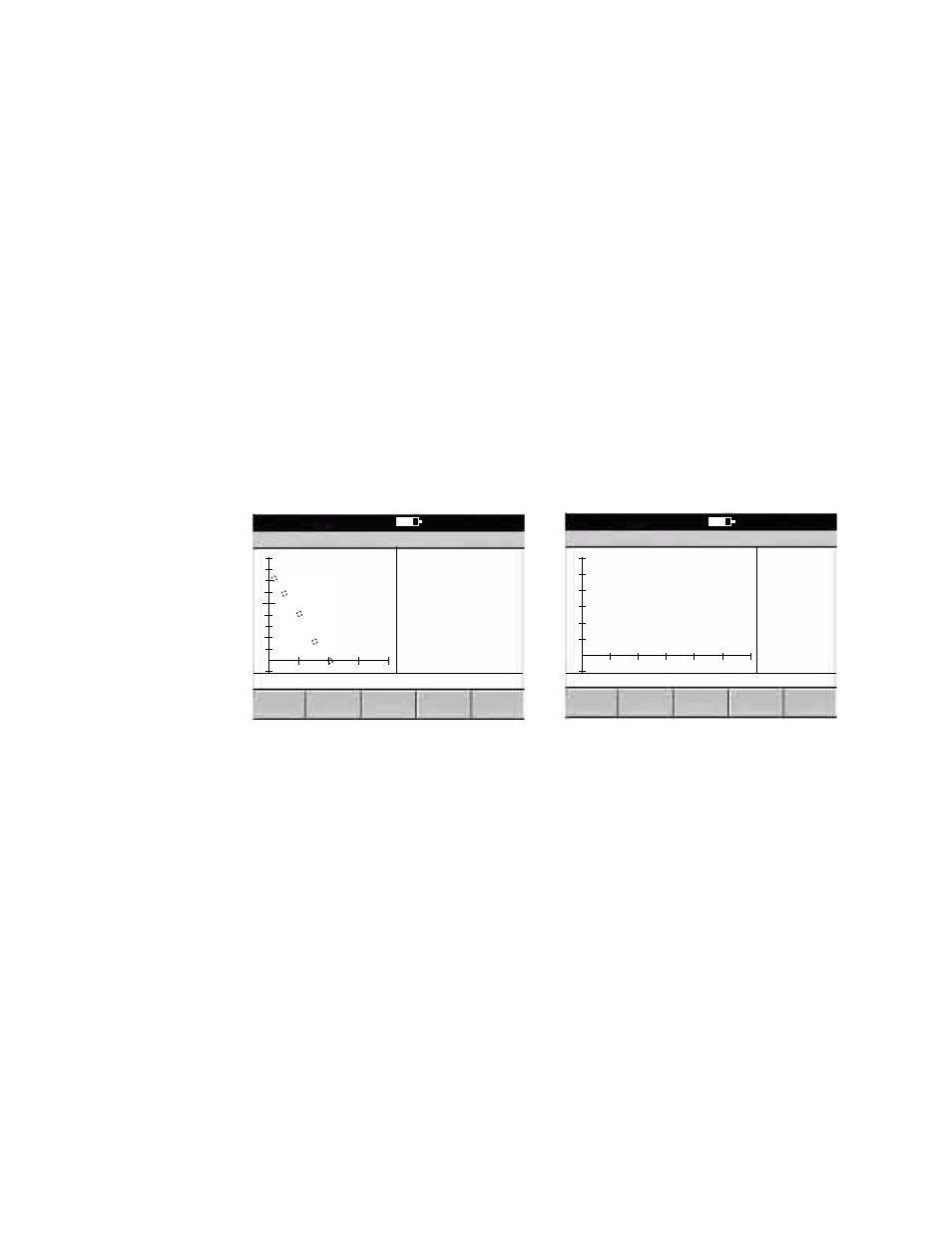

Figure 28. Spirometry Screen, Ready to Start Effort
8.
When ready, press Start.
9.
Coach the patient through the effort. For tips, see
10. When finished, you can press Stop, but you do not have to. The device stops
automatically when air stops moving (that is, when the ATS end-of-test criteria
are met).
Note
To learn how to change the default FVC curve type and parameters, see
“Reviewing the Spirometry Screen Settings”
