52 480 Installation Manual
Example: If the annunciator status value returned on the ZZ command is 145, the gross, standstill, and lb
annunciators are lit. The number 145 represents the sum of the values for the standstill annunciator (128), gross
mode annunciator (16), and the lb/primary units annunciator (1).
9.3 Data Formats
Continuous Output Serial Data Format
When the TRIGER is set to DEMAND or PRN for port 1 or PRN for port 2, if continuous transmission is
configured for serial port 2 (port 2 TRIGER set to STR1, DEVMOD set to LOCAL), the 480 sends data using the
Consolidated Controls serial data format shown in Figure 9-1:

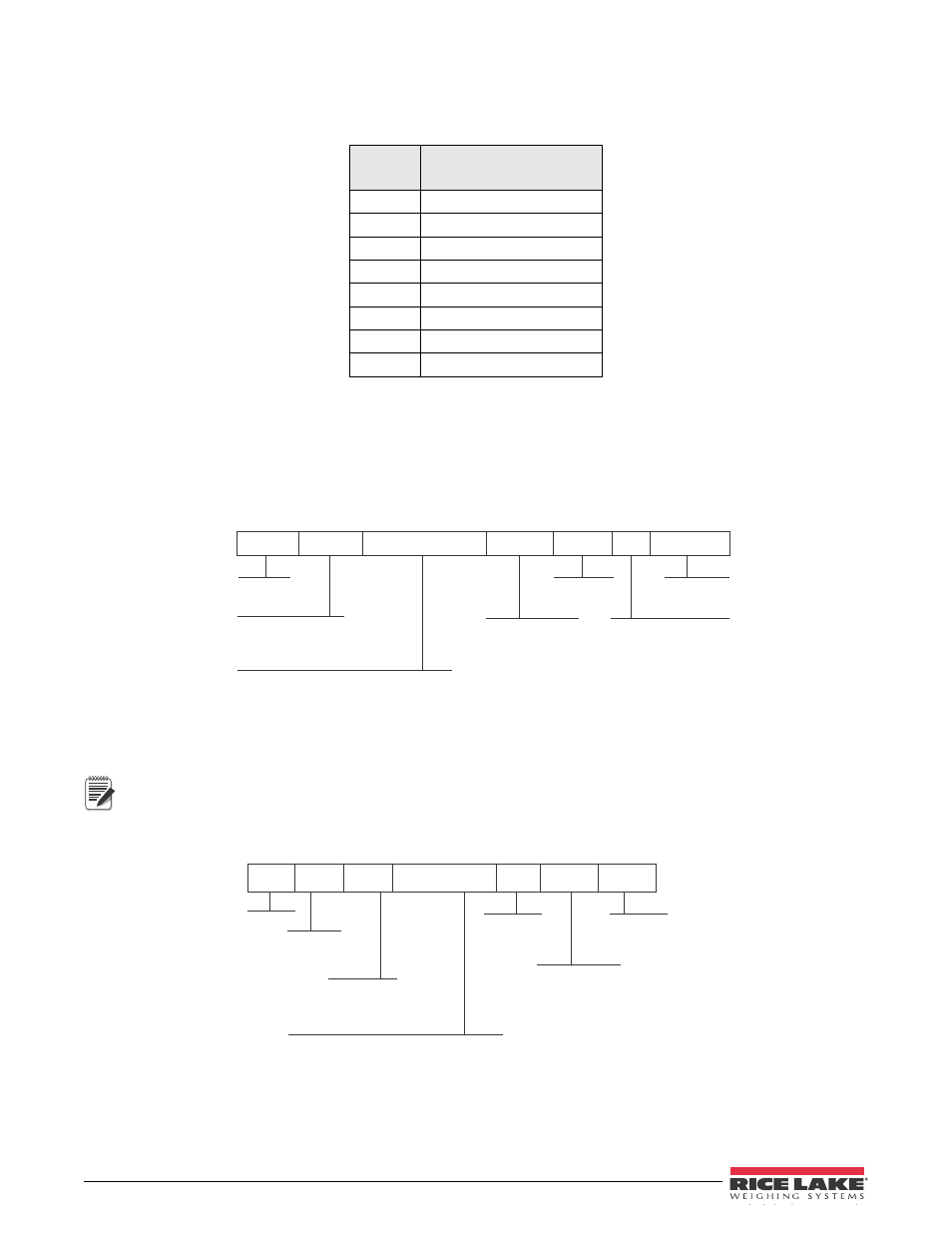

Figure 9-1. STR-1: Continuous Output Serial Data Format
Port 1 cannot be set to stream.
Data Formats Continued
Figure 9-2. STR-4:Weightronix Indicator Format
Decimal
Value Annunciator
1 lb/primary units
2 kg/secondary units
4 Count
8 Tare entered
16 Gross
32 Net
64 Center of zero
128 Standstill
Table 9-3. Status Codes Returned on the ZZ Command
ASCII 02
decimal
Polarity:
<space> = Positive
<–> = Negative
Weight: 7 digits, right-justified, dummy
zeroes, decimal point with no leading
zeroes except for leading zero immediately
preceding the decimal point. Leading
zeroes transmitted as spaces.
L = pounds
K = kilograms
T = tons
G = grams
O = ounces
G = Gross
N = Net
Status:
<space> = valid
I = Invalid
M = Motion
O = Over/under range
Z = COZ
or
Note
Space
Polarity:
<+> for positive
"–" for negative
Six digits, right justified, floating decimal,
leading zeros are present
g for Gross
n for Net
or
lb = pound
kg = kilogram
g = gram
tn = ton (short)
t = ton (metric)
gr = grain
oz = ounce
= none
Space
