320IS Installation Manual - Introduction 5
To change a parameter value, scroll left or right to view the values for that parameter. When the desired value
appears on the display, press to select the value and move back up one level. To edit numerical values, use the
navigation keys to select the digit and to increment or decrement the value or use the numeric keypad (see
Figure 1-4).

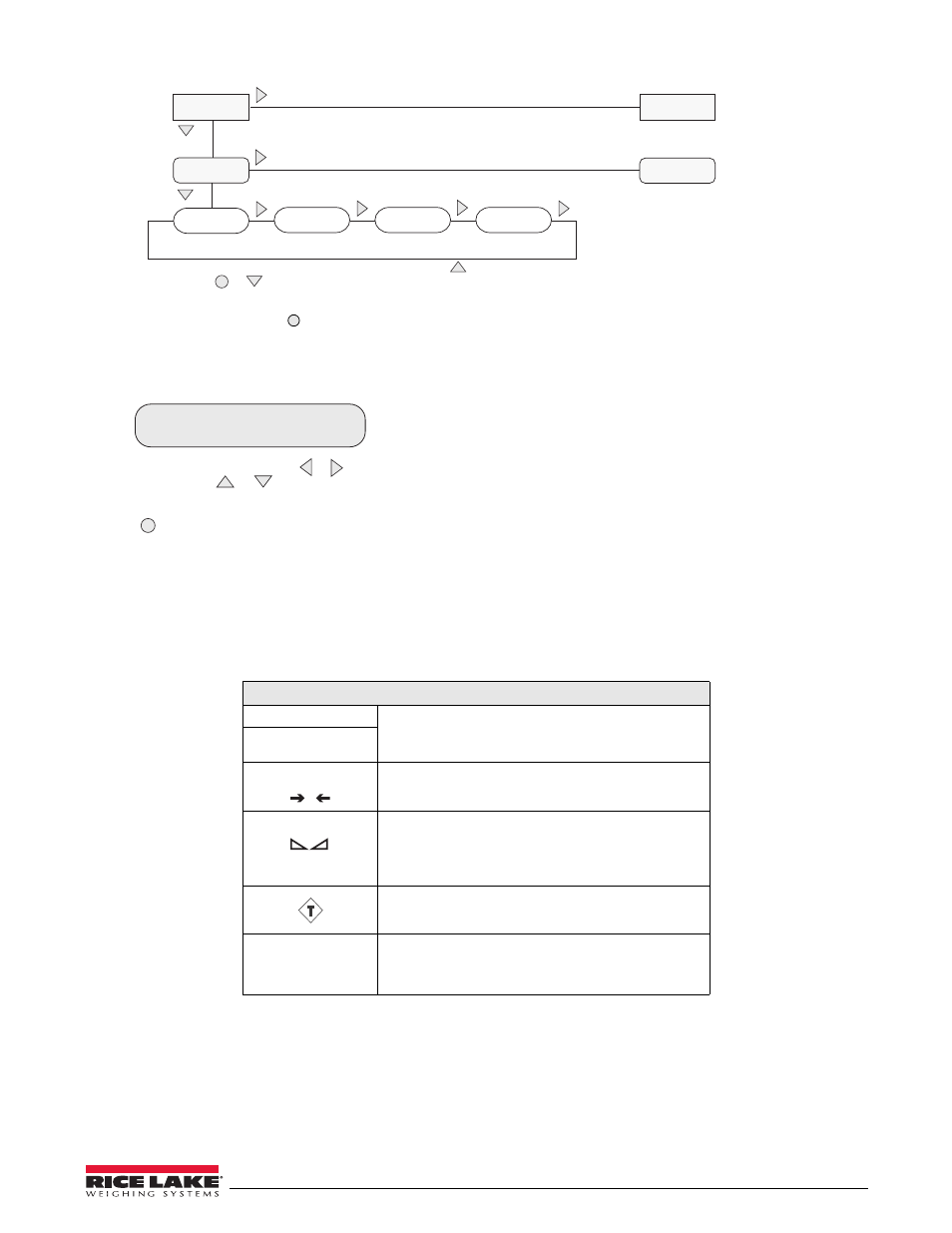

Figure 1-4. Editing Procedure for Numeric Values
1.5 LED Annunciators
The
320IS
display uses a set of eight LED annunciators to provide additional information about the value being
displayed (see Figure 1-1 on page 3):
LED Annunciators
Gross The Gross and Net annunciators are lit to show
whether the displayed weight is a gross or net
weight.
Net
Center of Zero Gross weight is ±0.25 graduations of zero. This
annunciator lights when the scale is zeroed.
Standstill Scale is at standstill or within the specified motion
band. Some operations, including tare functions and
printing, can only be done when the standstill symbol
is shown.
The Tare Acquired light shows that a tare value has
been entered.
Count The Count annunciator is lit to show that the indicator
is in piece count mode.
Table 1-2. LED Annunciators
1 st Level
Parameter
Default value
2 nd Level
Parameter
Value Value
1 st Level
Parameter
2 nd Level
Parameter
When moving thr ough values below the first menu level, press to r etur n to the level
above. Pr ess or to move to the next parameter on the level above.
Value
When editing numeric values, press or to change th e
digit selected. Press or to incr ement or decrement the
value of t he selected digit, or use t he numeric keypad.
Pr ess to save the value entered and return to the level above.
0 0 0 0 0 0
