320IS Installation Manual
3.3.8
Version Menu
The VERS menu is used to check the software or hardware version installed in the indicator. There are no
parameters associated with the Version menu; when selected, the indicator displays the installed software or
hardware version number.

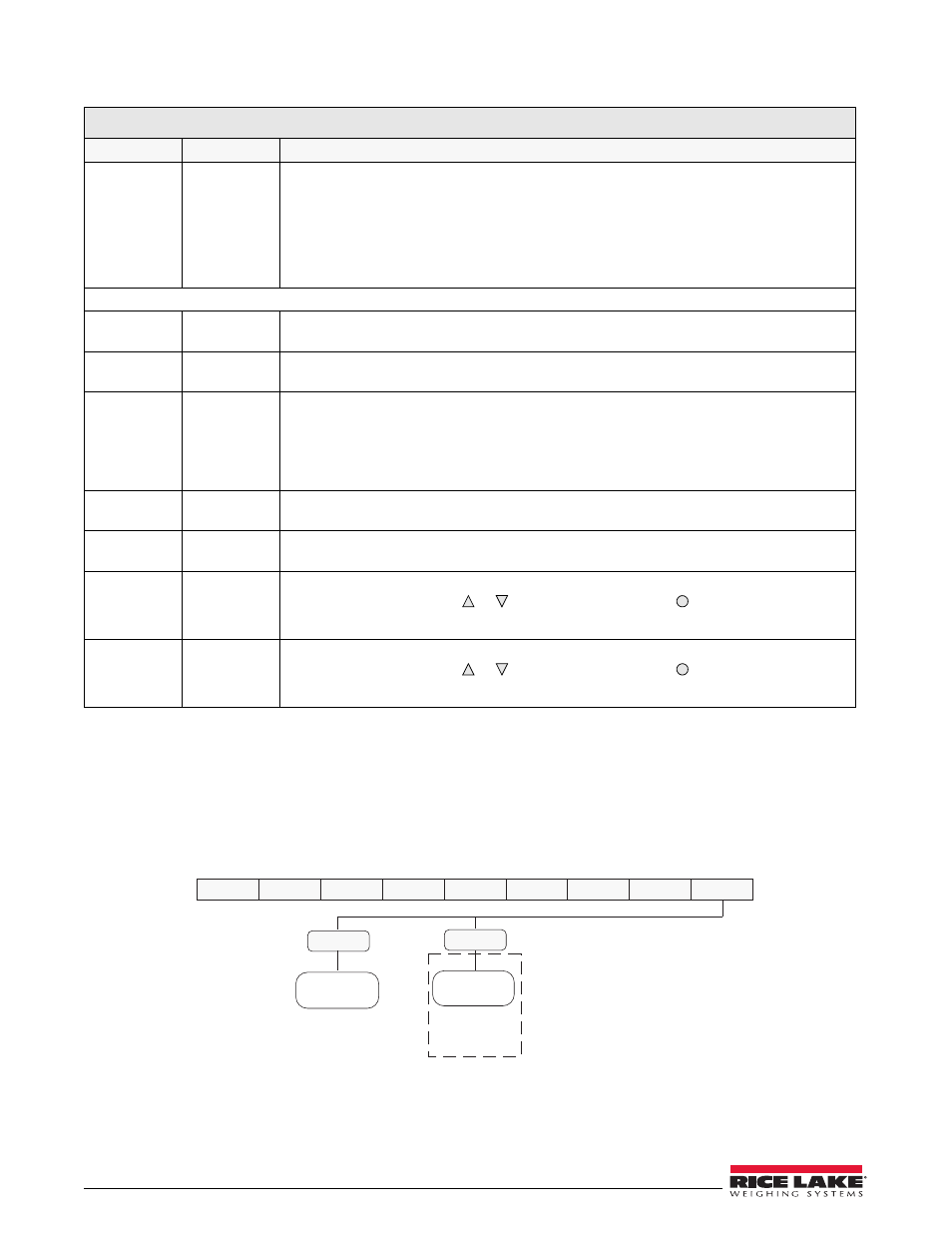

Figure 3-9. Version Menu
ALG OUT Menu
Parameter
Choices
Description
ALOUT1
ALOUT2
SOURCE
OFFSET
ERRACT
MIN
MAX
TWZERO
TWSPAN
Specifies settings for source, offset, error action, minimum, maximum, tweak zero and tweak
span value used by the analog outputs.
Level 2 submenus
SOURCE
GROSS
NET
Specifies the source tracked by the analog output.
OFFSET
0%
20%
Zero offset. Selects whether the analog output supplies voltage (0-5 V, ±5 V, ±10 V) or current
(4–20 mA) output. Select 0% for 0-5 V, ±5 V, ±10 V output, 20% for 4–20 mA output.
ERRACT
FULLSC
HOLD
ZEROSC
Error action. Specifies how the analog output responds to system error conditions.
Possible values are:
FULLSC
Set to full value
HOLD:
Hold current value
ZEROSC: Set to zero value
MIN
000000
number
Specifies the minimum weight value tracked by the analog output. Specify a weight value (in
primary units) in the range 000000–999 990.
MAX
010000
number
Specifies the maximum weight value tracked by the analog output. Specify a weight value (in
primary units) in the range 0–999 990.
TWZERO
65300
number
Tweak zero. Adjust the analog output zero calibration. Use a multimeter to monitor the analog
output value. Press and hold
or
to adjust the output. Press
to save the new value.
NOTE: Default value becomes 11000 if OFFSET is set to 20%.
TWSPAN
65300
number
Tweak span. Adjust the analog output span calibration. Use a multimeter to monitor the analog
output value. Press and hold
or
to adjust the output. Press
to save the new value.
NOTE: Default value becomes 54900 if OFFSET is set to 20%.
Table 3-8. Analog Output Menu Parameters
SOFTWR
Software Version
I/O Module Version
XXXXXXX
XXXXXXX
XXXXXXX
XXXXXXX
VERS
ALGOUT
DIG IN
PROGRM PFORMT
SERIAL
CALIBR
CONFIG FORMAT
I/OMOD
Displays “No Ver”
if no I/O Module is
connected
