4
320IS Installation Manual
SERIAL, PFORMT, DIG IN and ALGOUT menu functions require fiber optics communications with
I/O module to operate.

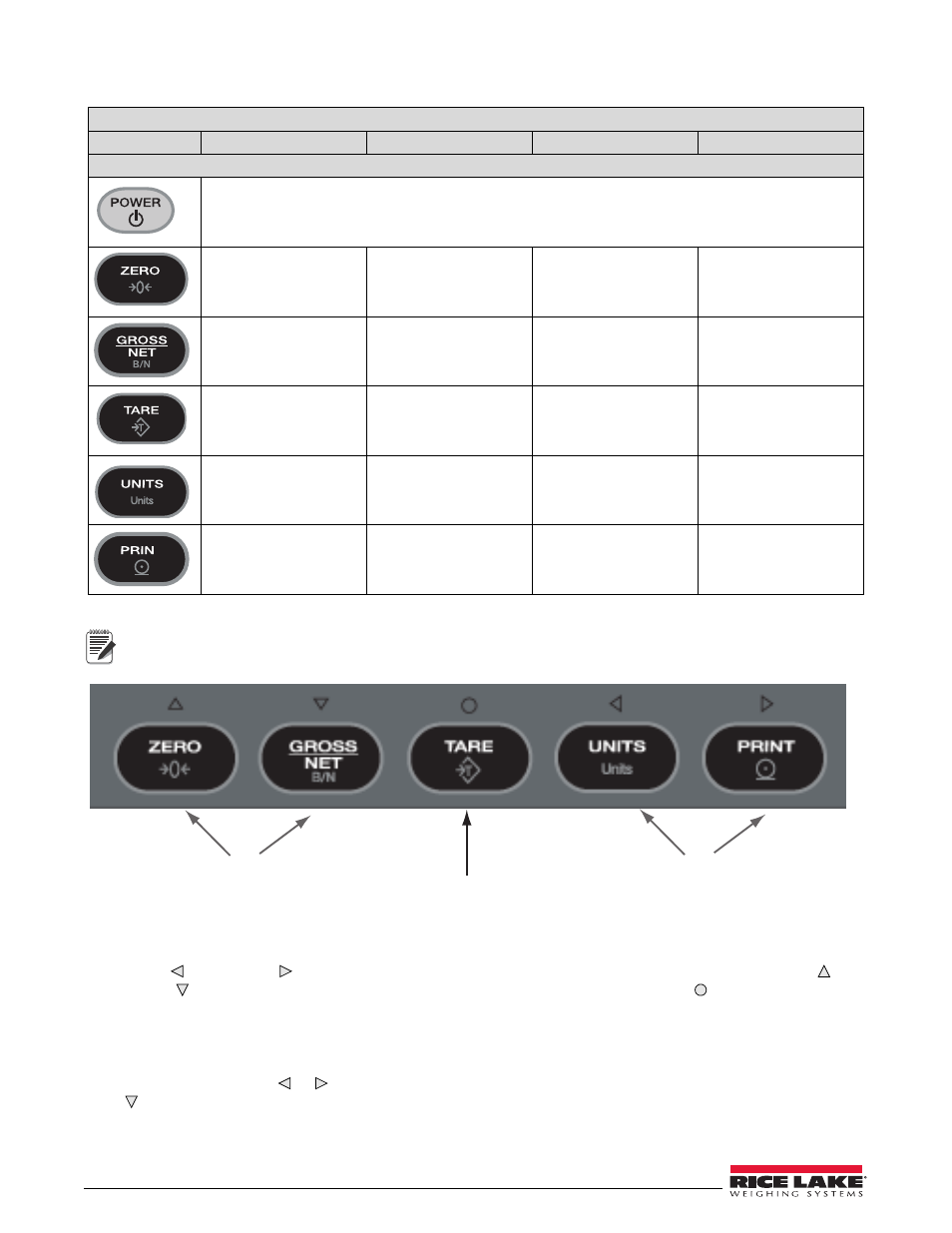

Figure 1-2. Front Panel Key Functions in Setup Mode
Four front panel keys are used as directional keys to navigate through the menus in setup mode (see Figure 1-2).
The
UNITS
( ) and
( ) keys scroll left and right (horizontally) on the same menu level;
ZERO
( ) and
GROSS/NET
( ) move up and down (vertically) to different menu levels. The
TARE
key ( ) serves as an enter key
for selecting parameter values within the menus. A label above each of these keys identifies the direction provided
by the key when navigating through the setup menus.
Figure 1-3. Setup Mode Menu Navigation
To select a parameter, press or to scroll left or right until the desired menu group appears on the display, then
press to move down to the submenu or parameter you want. When moving through the menu parameters, the
default or previously selected value appears first on the display.
Display Mode
Normal
Setup
Test
Count
Key Functions
Turn the indicator on or off
Return gross weight
display to zero
• Move up (vertically)
• Increment value
• Exit (top level only)
Exit
N/A
Toggle between gross,
net and piece count
mode
• Move down (vertically)
• Decrement value
N/A
Toggle between gross,
net and piece count
mode
Press to enter an auto
tare or keyed tare
Enter
Enter
Perform a piece count
Toggle between primary
and secondary units
• Move left (horizontally)
• Previous
Move left (horizontally)
Select a sample size
Print using GFMT
Move right (horizontally)
Print using CFMT
Table 1-1. Indicator Display Key Functions
Note
Move Up and
Down (vertically)
Enter
Move Left and
Right (horizontally)
