Print Format Menu
See Section 6.0 on page 43 for information about custom print formatting. The PFORMT menu is used only if the
320IS
is used with the I/O Module option.

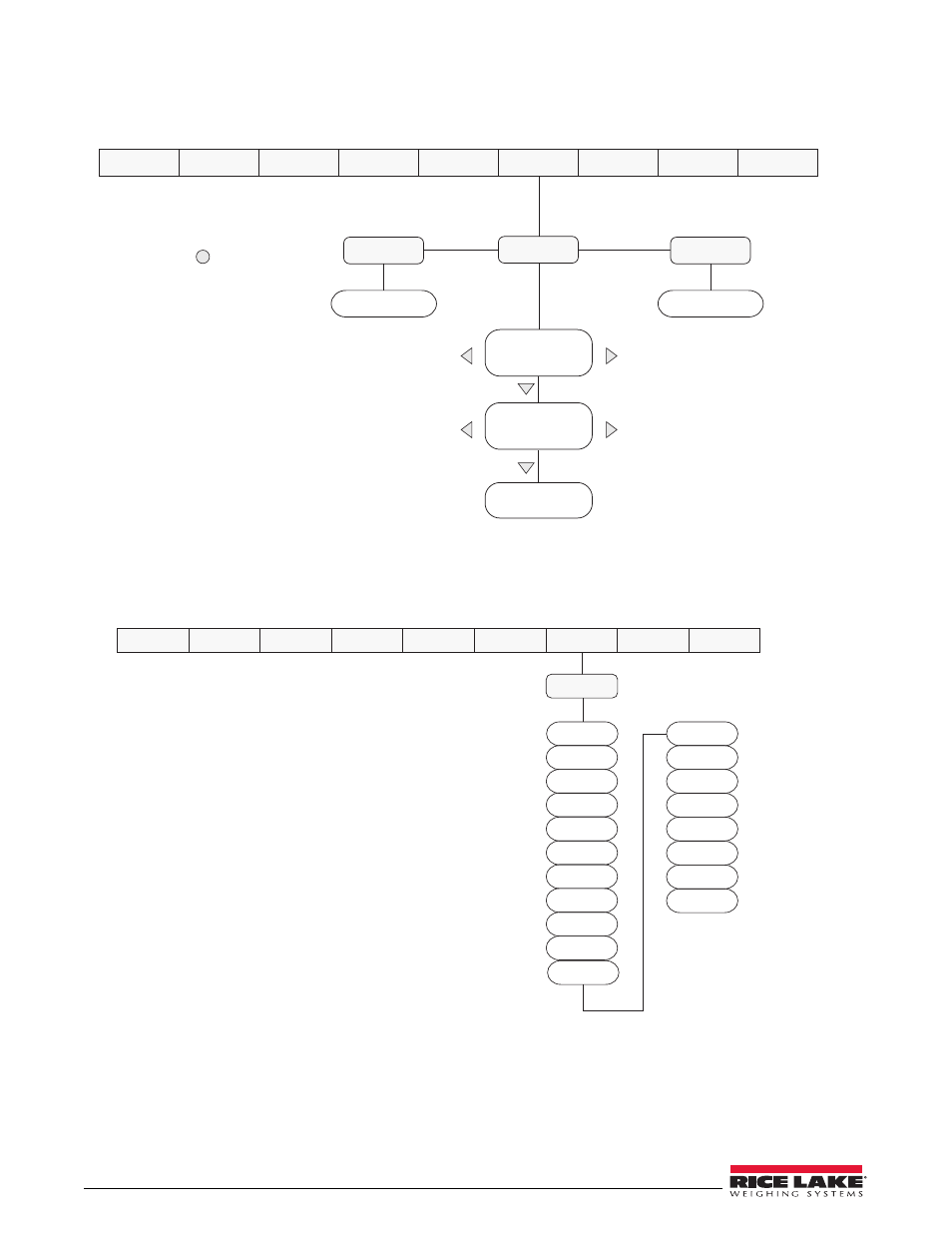

Figure 3-6. Print Format Menu
Figure 3-7. Digital Input Menu
GFMT
Display first 6
characters of format
(See Note)
NFMT
Display and edit
active character and
ASCII value
Delete active
character
Scroll right in format string
Scroll left in format string
Incr ement ASCII value of active character
Decr ement ASCII value of active character
Pr ess
to insert a space
befor e the active character
XXXXXXX
XXXXXXX
XXXXXXX
XXXXXXX
VERS
ALGOUT
DIGIN
PROGRM PFORMT
SERIAL
CALIBR
CONFIG FORMAT
Same as GFMT
NOTE
: To change the active character,
use the numeric keypad to enter the new
ASCII value and press Enter (TARE).
Same as GFMT
CFMT
XXXXXXX
XXXXXXX
XXXXXXX
ALGOUT
DIGIN
PROGRM PFORMT
SERIAL
CALIBR
CONFIG
FORMAT
VERS
DIGIN 1 - 4
OFF
ZERO
TARE
NT/GRS
UNITS
ENTER
KBDLOC
HOLD
CLRCN
ACCUM
DSPTAR
GROSS
NET
PRIUNI
SECUNI
CLRTAR
CLRACC
NEWID
